Manitowoc National Crane NBT40-1 Series User Manual

National Crane 3-29-2018 Control # 610-00 5-13
NBT40-1 SERIES OPERATOR MANUAL OPERATING CONTROLS - AERIAL LIFT
5
RCL Display
The RCL display (5 Figure 4-3) is for the Rated Capacity
Limiter (RCL), see operating instructions and screen
displays in this manual.
The RCL provides the equipment operator with the
information required for the equipment to perform safely
within its design parameters. The RCL displays information
on length and angle of boom, platform height, and platform
reach.
The RCL continuously monitors these parameters and
provides the operator with an updated readout of the
equipment status. If an operational limitation condition is
approached, the RCL warns the operator with an alarm and
locks out the equipment functions that can aggravate the
situation.

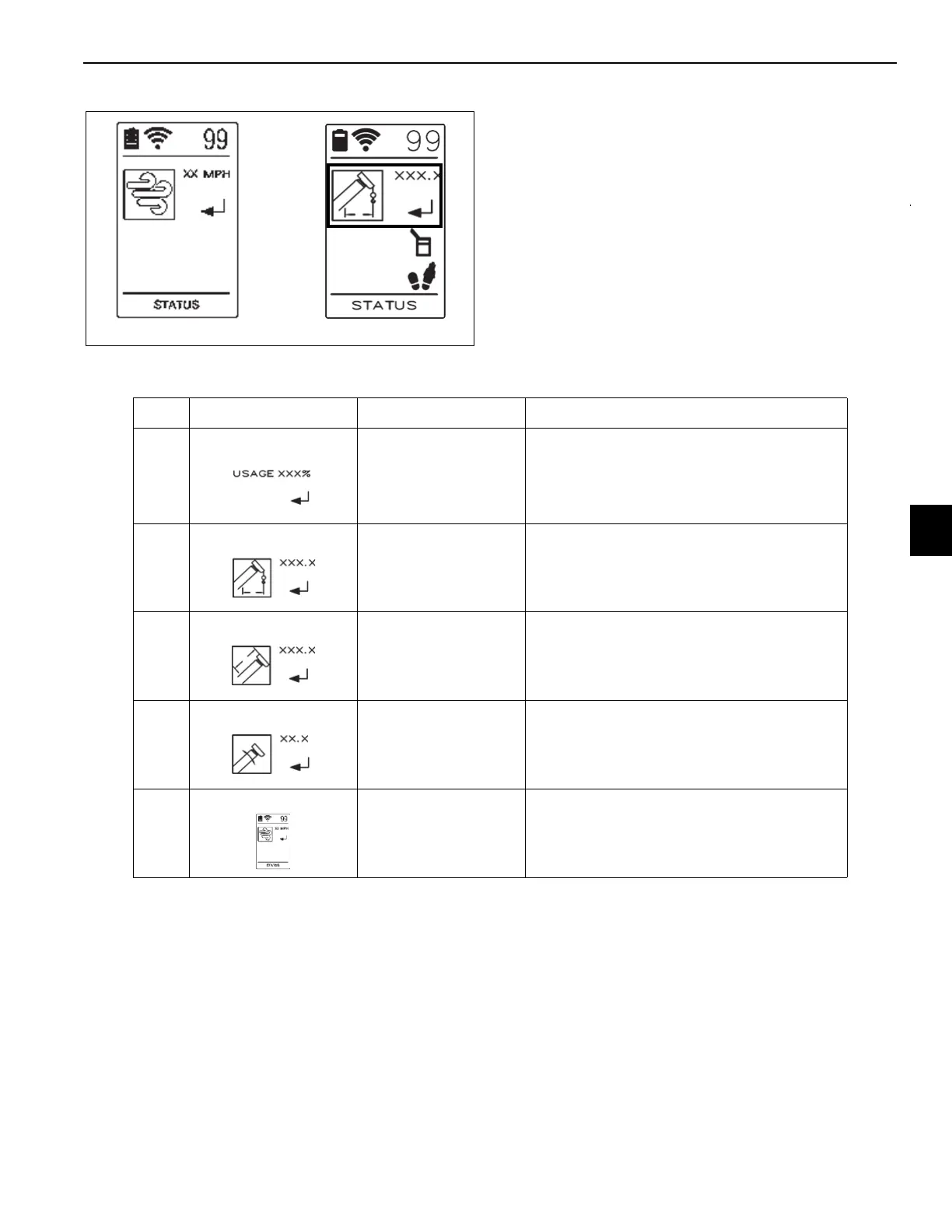

FIGURE 5-10
RCL Information Screen Example (Radius)
Item Symbol/Icon Function Description
1
Aerial Reach
Utilization
Actual percent of max useable platform reach
being used (%).
2 Radius
Actual radius (feet) from centerline of rotation
to the center of the boom nose lower sheaves.
3 Boom Length
Actual extended boom length (feet) from
center of boom pin attachment to the rope
groove of the boom nose lower sheaves.
4 Boom Angle Actual boom angle (degrees).
5 Windspeed Displays windspeed force at boom tip
