Manitowoc P Series - Water Pump and Ice Thickness Probe Removal

4-6
Maintenance Section 4
Water Pump
WARNING
Disconnect the electric power to the ice machine at
the electric service switch box and turn off the
water supply.
1. Disconnect the water pump power cord.
Water Pump Removal
2. Disconnect the hose from the pump outlet.
3. Loosen the screws securing the pump mounting
bracket to the bulkhead.
4. Lift the pump and bracket assembly off the
screws.
Ice Thickness Probe
1. Compress the side of the ice thickness probe near
the top hinge pin and remove it from the bracket.
Ice Thickness Probe Removal
NOTE: At this point, the ice thickness probe can
easily be cleaned. If complete removal is desired,
continue with step 2 below.
WARNING
Disconnect the electric power to the ice machine at
the electric service switch box.
2. Disconnect the wire lead from the control board
inside the electrical control box.

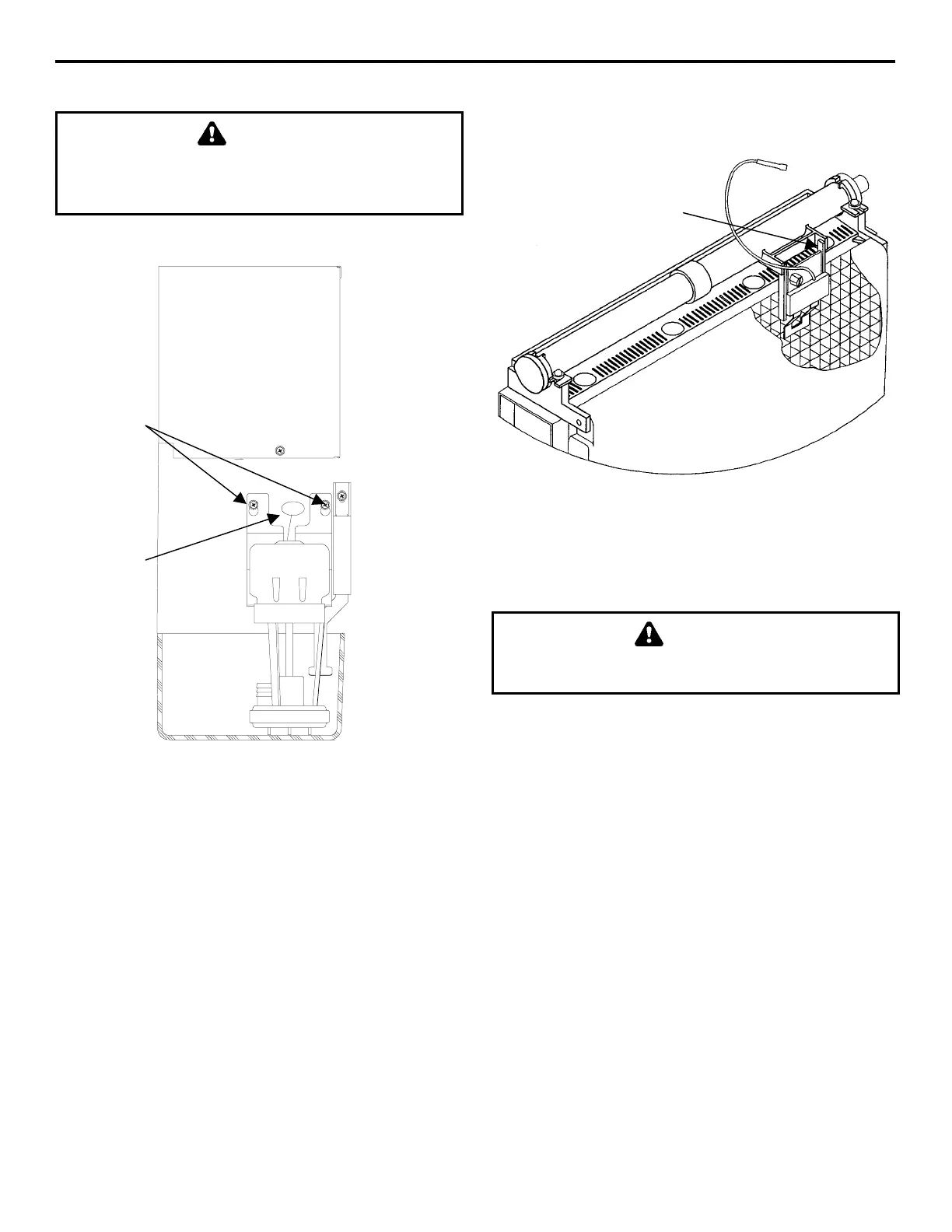

LOOSEN SCREWS
DISCONNECT
POWER CORD
SV1699A
COMPRESS HINGE PIN TO
REMOVE
