Manitowoc QY0874C

–121–
Condensing Unit
CVD0675/CVD0875/CVD1075/CVD1475/CVD1476/
CVD1875/CVD2075
208-230V/60Hz/1Ph or 230V/50Hz/1Ph

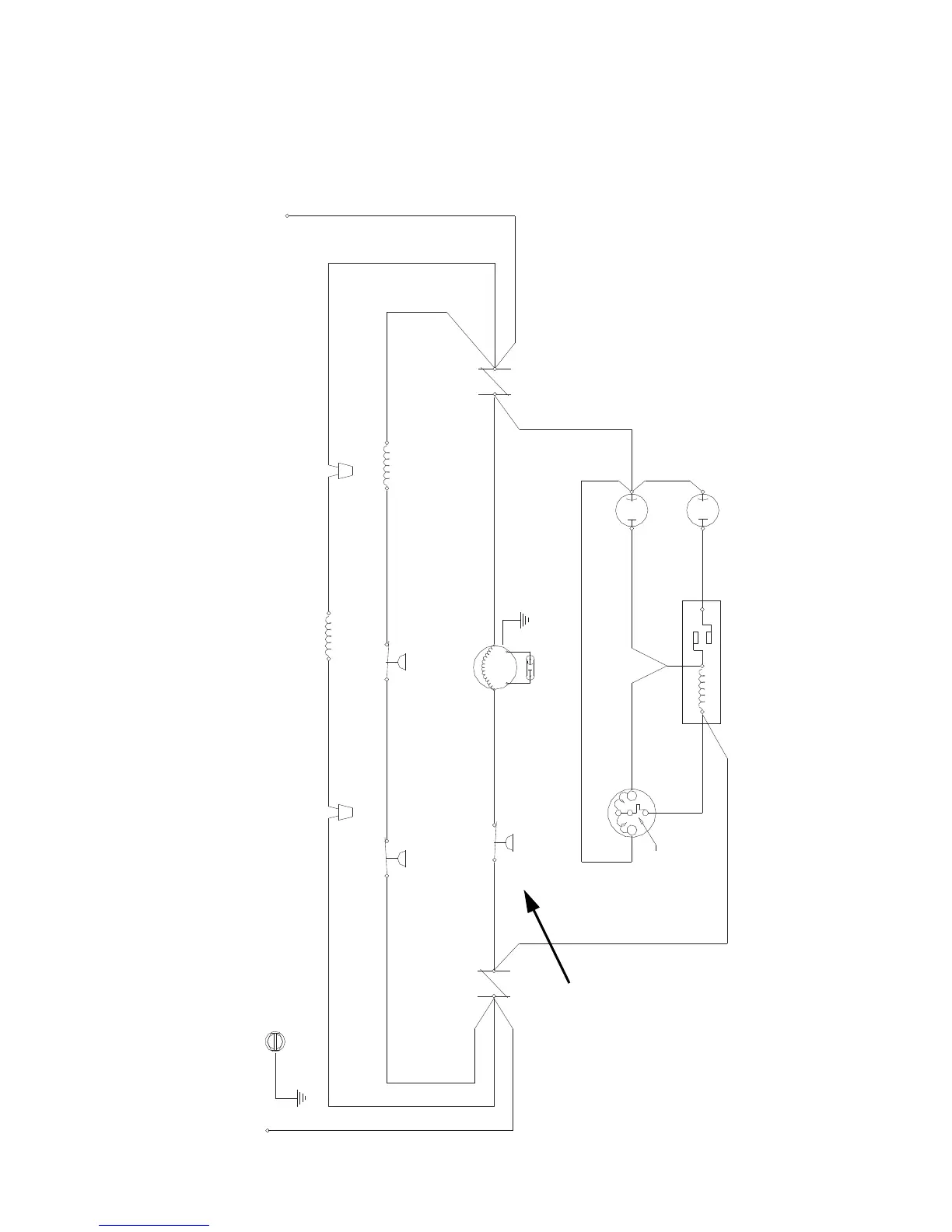

(Diagram Shown in Freeze Cycle)
GROUND
L1
(94)
COMPRESSOR
CRANKCASE
HEATER
(95)
L2 (N
(96)
(74)
CONTACTOR
CONTACTS
HIGH PRESSURE
CUTOUT
FAN MOTOR
LOW PRESSURE
SWITCH
CONTACTOR
COIL
CONTACTOR
CONTACTS
RUN CAPACITOR
*CVD0675
DOES
NOT HAVE A
FAN CYCLE
*CVD1476
DOES
NOT HAVE A
FAN MOTOR
CONTROL
FAN CYCLE
CONTROL
*OVERLOAD
RELAY
COMPRESSOR
RUN CAPACITOR
START CAPACITOR
(85)
(49)
(49)
(47)
(46)
(43)
(48)
(44)
(45)
R
R
1
2
5
S
S
C
*CVD1476 & CVD2075 DO
NOT USE A COMPRESSOR
CRANKCASE HEATER
