SPLASH SHIELD
Q1400C/QDUAL
1. Pull forward on left and right Nylatch connectors
until disengaged from ice machine (connectors
remain attached to splash shield).
2. Remove panel from front of ice machine by lifting
forward and up.
Important
Splash shield must be reinstalled to prevent water
leakage.

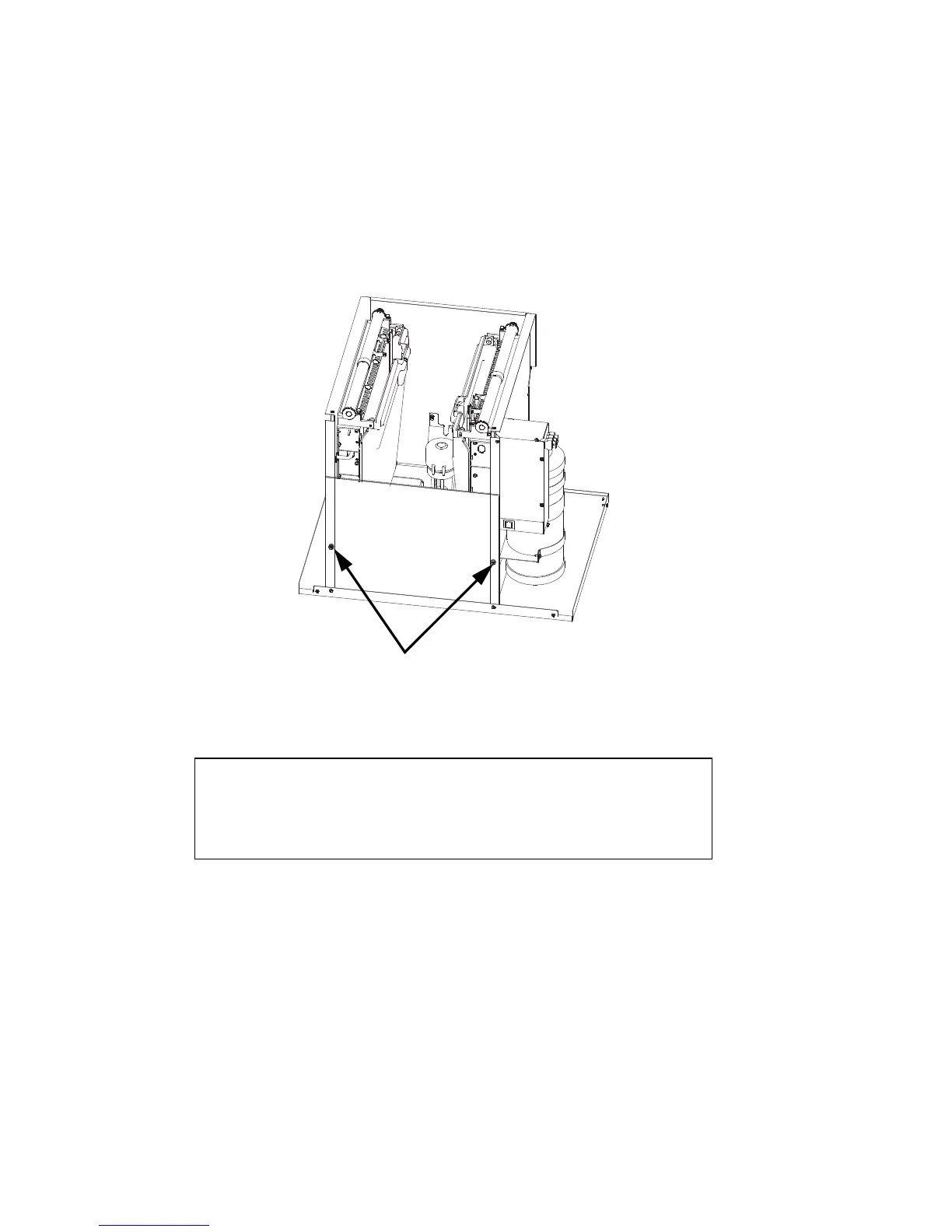

NYLATCH CONNECTORS
PULL FORWARD TO
DISENGAGE.
Q1400 Shown
