Part Number STH044 10/13 51
4. Remove the tubing from the dump valve by
twisting the clamps off.
5. Remove the valve body from mounting bracket by
twisting counterclockwise.
.

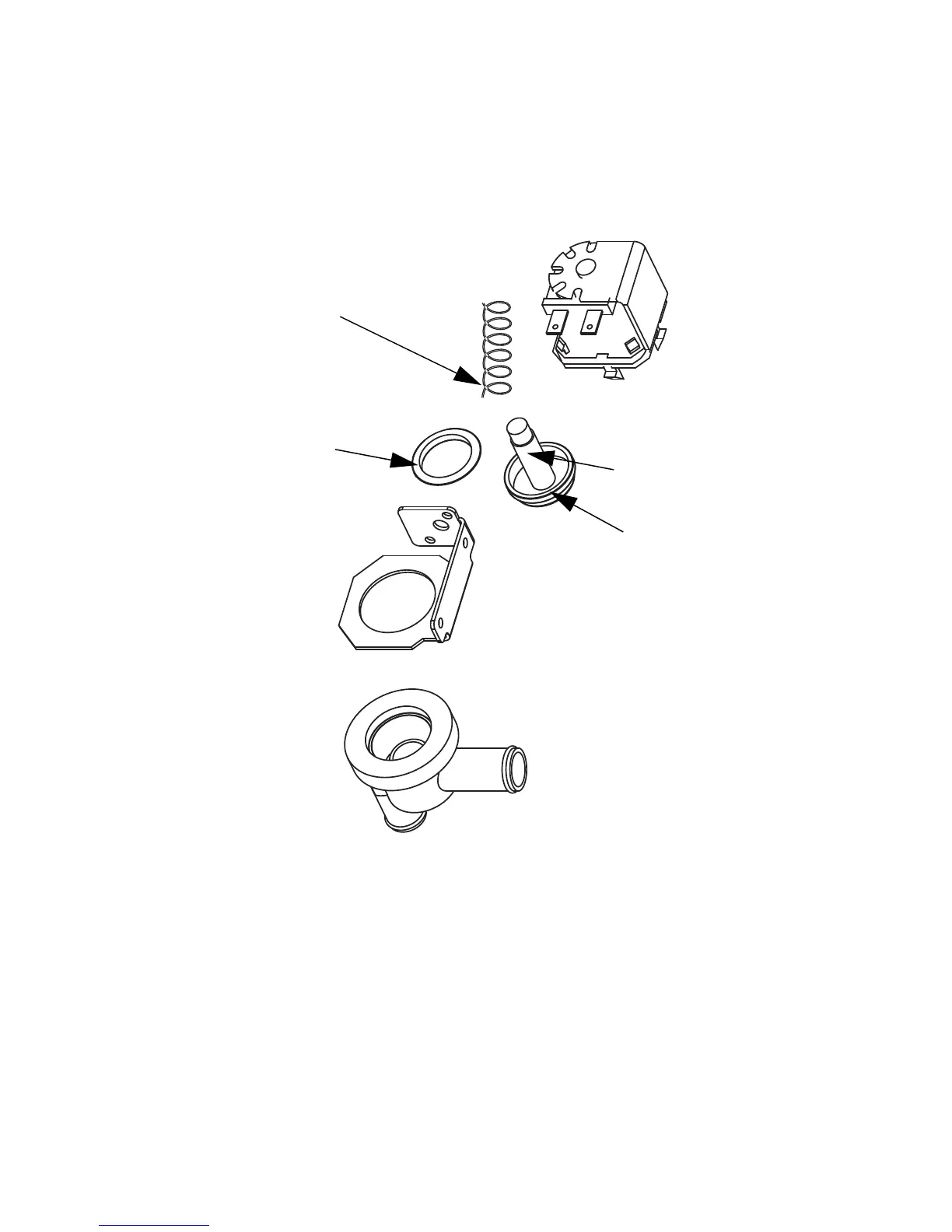

Dump Valve Disassembly
MOUNTING
BRACKET
NYLON
WASHER
SPRING
PLUNGER
DIAPHRAM
VALVE BODY
COIL
