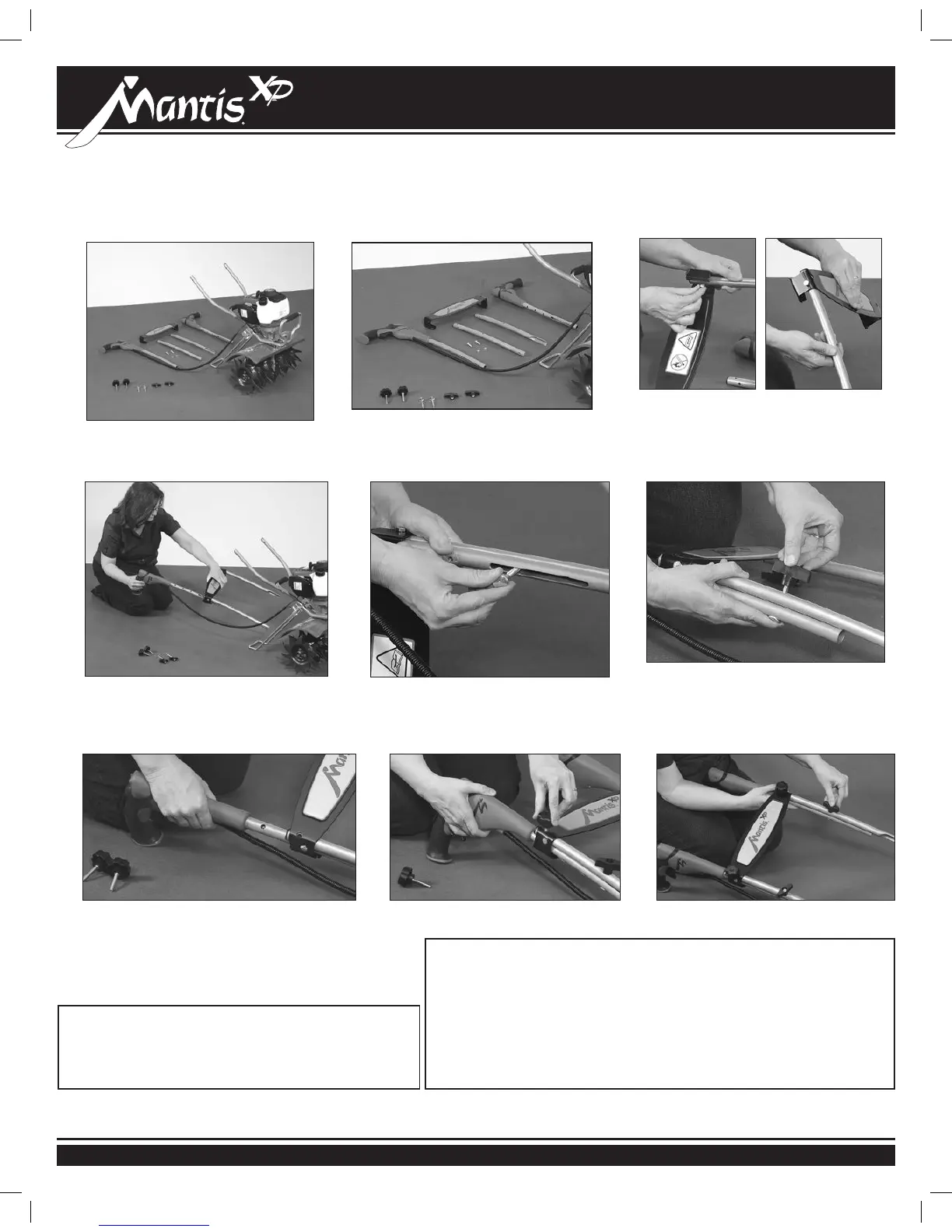

Assembly
• To assemble the upper handles,
rst put the kickstand down.
• Take the right upper handle, the
one with the throttle, and slide it
between the middle handle and the
lower ange of the brace.
• Layout the middle and upper handles
and the handle brace as shown above.
• Insert a curved head bolt into the
slot at the bottom of the upper
handle so that it comes out the
top of the middle handle.
• Take the right middle handle and
attach the brace using a hex head
cap screw and a 2-way lock nut.
Finger tighten.
• Repeat for left side.
• Thread a 2-pronged knob onto
the bolt two full turns while leaving
it loose.
• Repeat for left side.
UPPER HANDLE ASSEMBLY
1
4 5 6
2
3
• Line up the top holes of the upper
handles with the holes on the top of
the brace so the handles are in the
lowest position.
• Insert the round knob into the
brace and tighten.
• Now fully tighten the lower
2-prong knobs.
7 8 9
IMPORTANT NOTE:
Be sure you have proper throttle movements and that the throttle
cable is not wrapped or twisted around the handle bar. Hold down
the lockout lever, fully squeeze the throttle trigger and let go.
Engine throttle triangle must click in both directions. If there is
any doubt, remove air lter and visually check that the throttle
triangle hits both the idle screw and the full open stop. THIS
MUST BE DONE BEFORE STARTING THE ENGINE.
IMPORTANT NOTE:
Make sure you have installed the handles proper-
ly. When you stand behind your tiller, holding the
handles, the fender warning label should face you.
