16

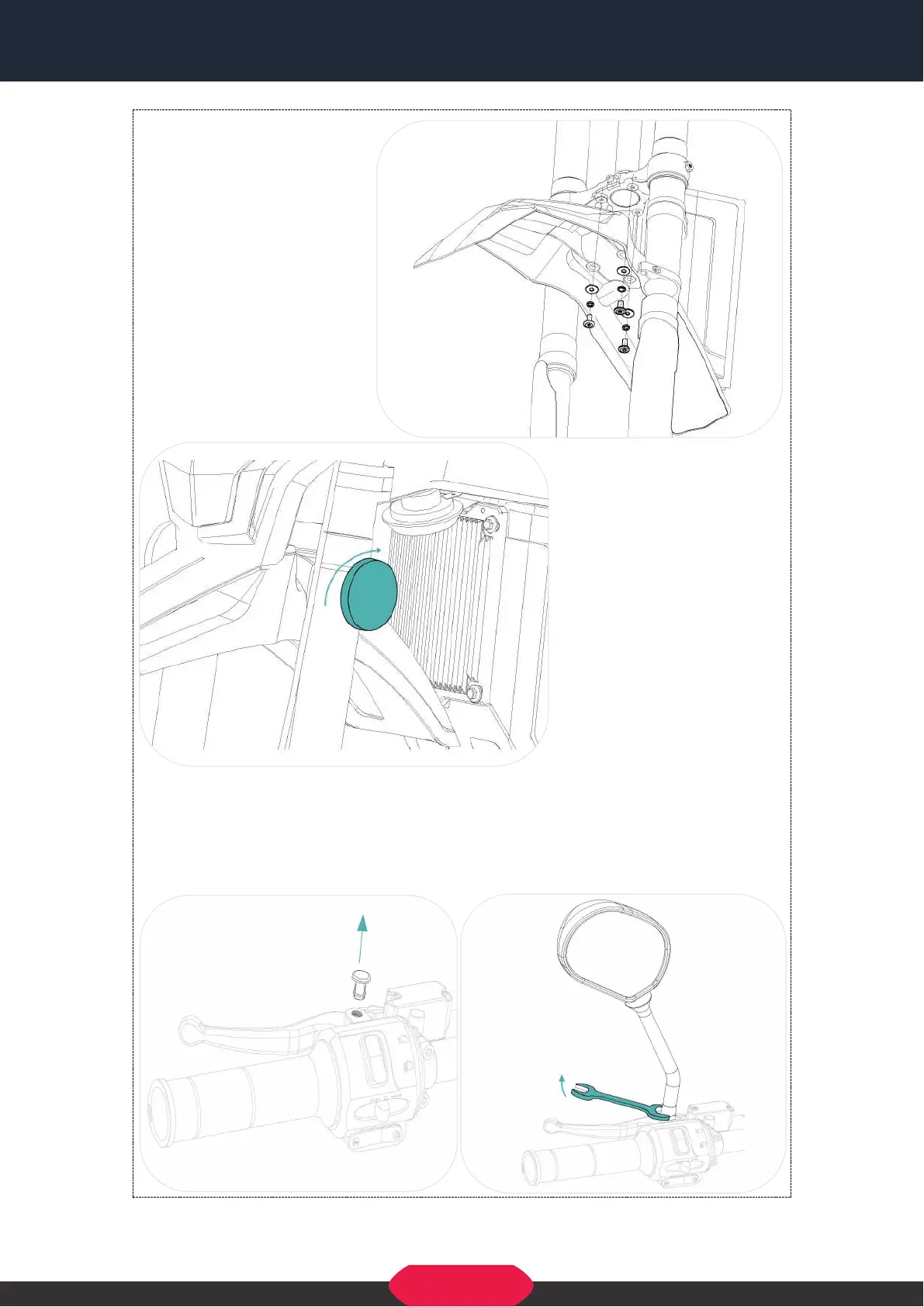

Installation of front
mud fender
Secure the front fender to
the lower coupling plate
with 3 screws including flat
pad and spring pad lock
using 4# Allen wrench.
Installation of front
reflector
Install the front reflector on
each side of the fork by
turning clockwise.
Installation of rear view mirror
1. Pull out the plastic plug on
the function switch holder.
2. Adjust the rearview mirror to the
proper position and lock the nut
with 14# open-end wrench.
