Manusa Visio C2H - Page 27

DMJOIC201EN - v2
VISIO C2H OPERATOR - INSTALLATION MANUAL
27
White mark
Left arm
Right arm
Left arm
Right arm
Fig.
9.7
i

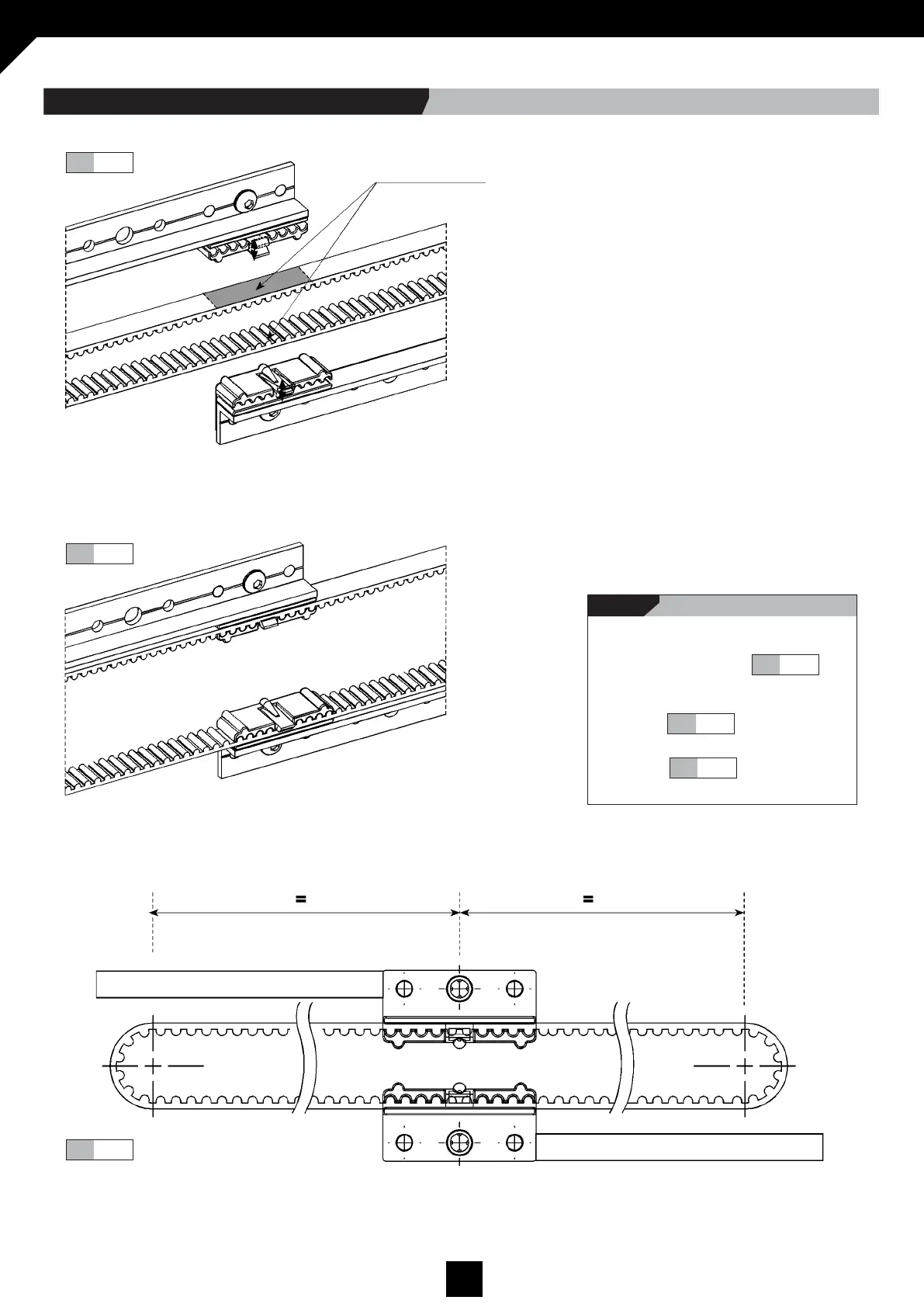

Find the white mark in the belt which
indicates where to locate the anchors,
as shown in the diagrams.
Attach the top left arm and the bottom
right arm to the belt as shown in the
diagrams.
See assembly diagram for correct
operation.
Fig.
9.7
Fig.
9.6
Fig.
9.5
Fig.
9.6
Fig.
9.5
9.2 BELT ANCHOR ASSEMBLY
