Manusa Visio C2H - Belt Length

DMJOIC201EN - v2
VISIO C2H OPERATOR - INSTALLATION MANUAL
29
Fig.
9.12
Fig.
9.15
BELT LENGTH
(see table)
BELT LENGTH
Cut belt
Left arm
Right arm
Cut belt
Fig.
9.16
Fig.
9.15
Fig.
9.14
Fig.
9.13
Fig.
9.12
i

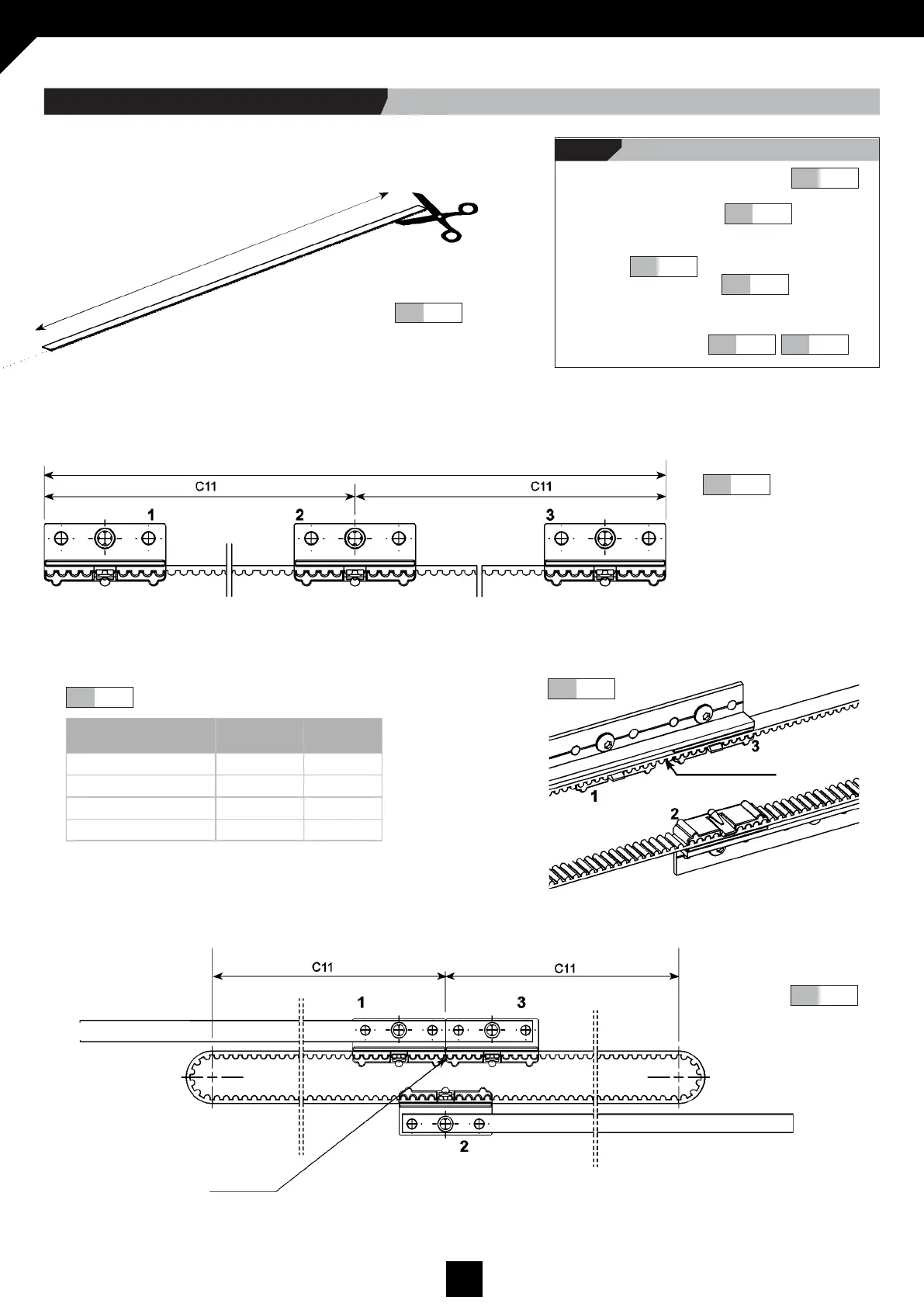

Cut the belt as shown in the diagram.
See table for belt length.
Place the anchors along the belt as shown in the
diagram.
For C11 length see table.
Attach anchors to arms as shown in diagram.
Fig.
9.16
Fig.
9.15
Fig.
9.15
Fig.
9.13
PL C11
Length of
Belt*
2001 < PL < 2250 742 3050
2251 < PL< 2500 867 3550
2501 < PL < 2750 992 4050
2751 < PL < 3000 1117 4550
9a.2 BELT ASSEMBLY
