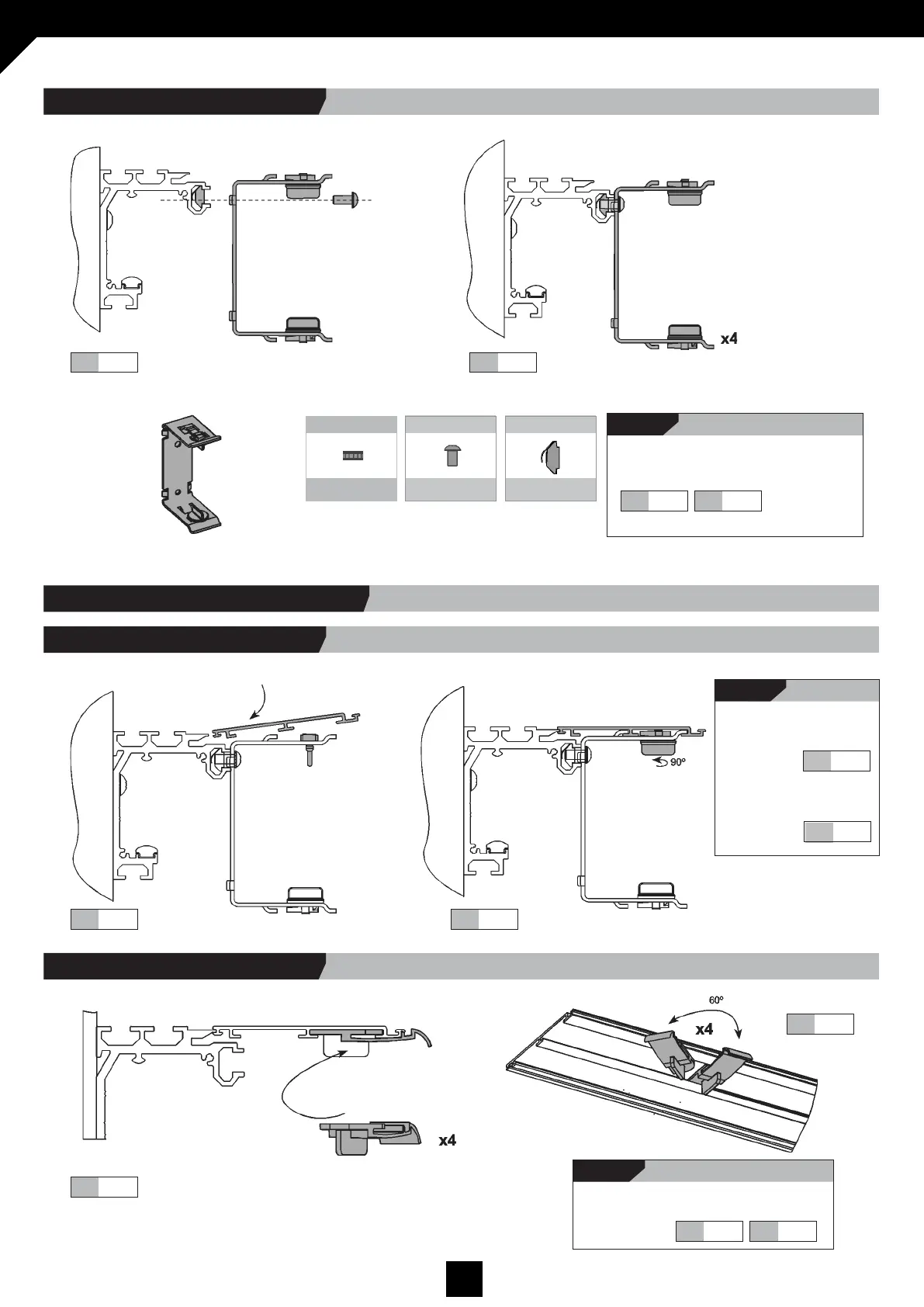

Manusa Visio C2H - Covers Assembly

DMJOIC201EN - v2
VISIO C2H OPERATOR - INSTALLATION MANUAL
31
60º aprox.
Fig.
10.10
i
Assemble the snap-on clips (x4) to the
top element of the cover as shown in
the diagrams.
Fig.
10.11
Fig.
10.10
Fig.
10.11
Fig.
10.9
Fig.
10.8
Fig.
10.9
Fig.
10.8
i
Mount brackets (x4) onto the main
profile as shown in the diagrams.
Fig.
10.7
Fig.
10.6
Nuts & bolts
Spring Nut M6
Nuts & bolts
DIN7380 6x14
Nuts & bolts
DIN6798 M-6
Fig.
10.7
Fig.
10.6
i
Position top cover as
shown in the diagram.
Fix (x4) the brackets as
shown in the diagram.
10.3.2 Assemble snap-on clip.
10.3.1 Top cover assembly.
10.2.2 Brackets assembly.
10.3 COVERS ASSEMBLY
