Manusa Visio C2H - Drive Unit Assembly

DMJOIC201EN - v2
VISIO C2H OPERATOR - INSTALLATION MANUAL
26
9.2
i
Insert nuts in main profile as shown in
the diagrams.
9.1 9.2
9.1
Fig.
Fig. Fig.
Fig.
9.3
i
Position the drive unit so that the two
motors are the same distance from the
centre of AT.
9.3
Fig.
Fig.
9.4 9.5
i
Screw the drive unit to the main profile as
shown in the diagrams.
9.4 9.5
DIN7380 6x14
Spring Nut M6
Fig. Fig.
Nuts & bolts
Nuts & bolts
Fig. Fig.

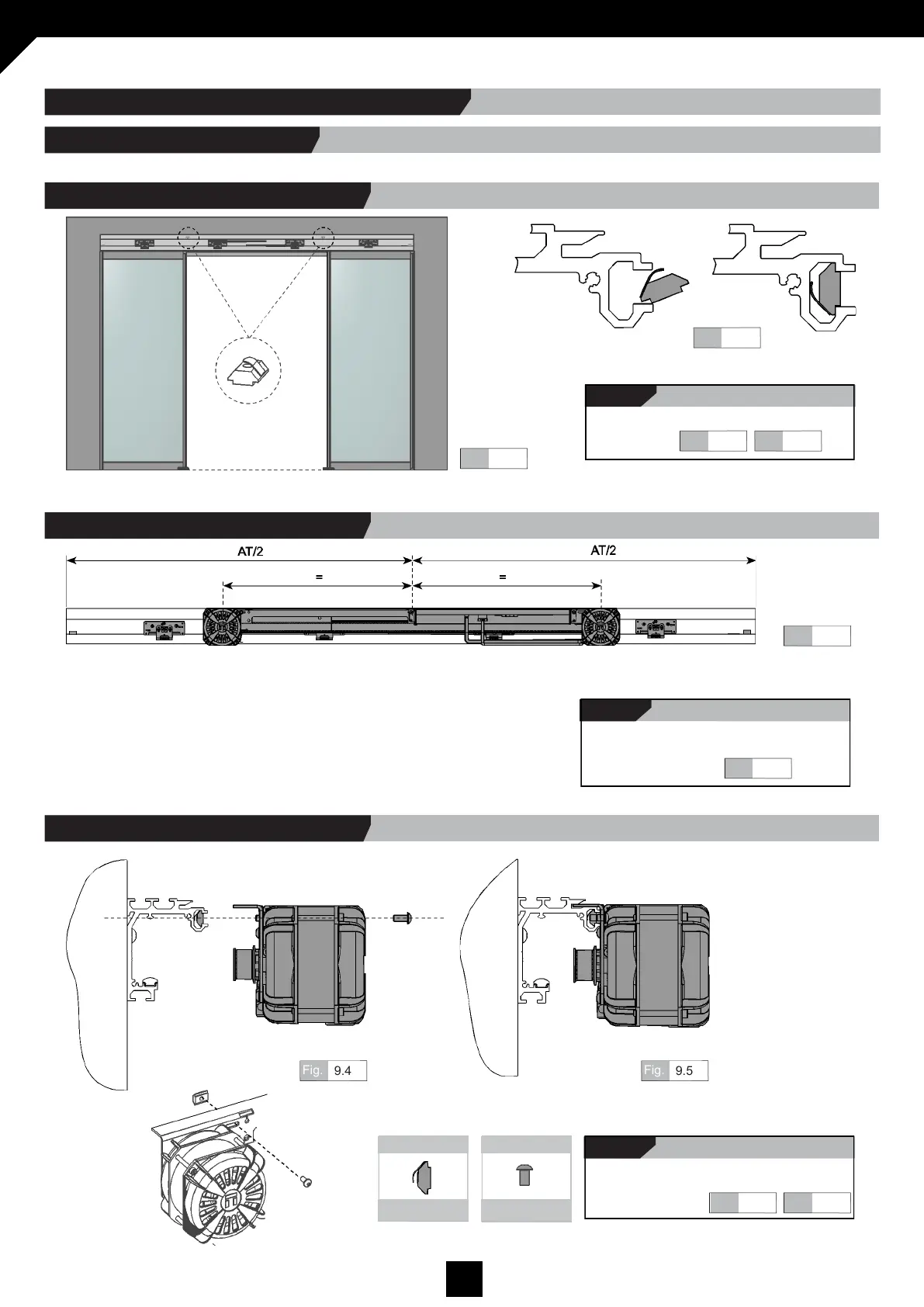

9.1 DRIVE UNIT ASSEMBLY
9.1.1 Insert nuts in main profile.
9. DRIVE UNIT / BELT ANCHOR ASSEMBLY
9.1.2 Placement of drive unit.
9.1.3 Screw in the drive unit.
