Manusa Visio C2H - Cover Assembly

DMJOIC201EN - v2
VISIO C2H OPERATOR - INSTALLATION MANUAL
30
i
Insert nuts in main profile in the posi-
tions shown in the diagrams.
.
Fig.
10.5
Fig.
10.4
Fig.
10.5
Nuts & bolts
Spring Nut M6
Fig.
10.4
Fig.
10.3
i
Assemble bottom and front cover as
shown in diagrams.
Fig.
10.2
Fig.
10.1
Fig.
10.2
Fig.
10.1

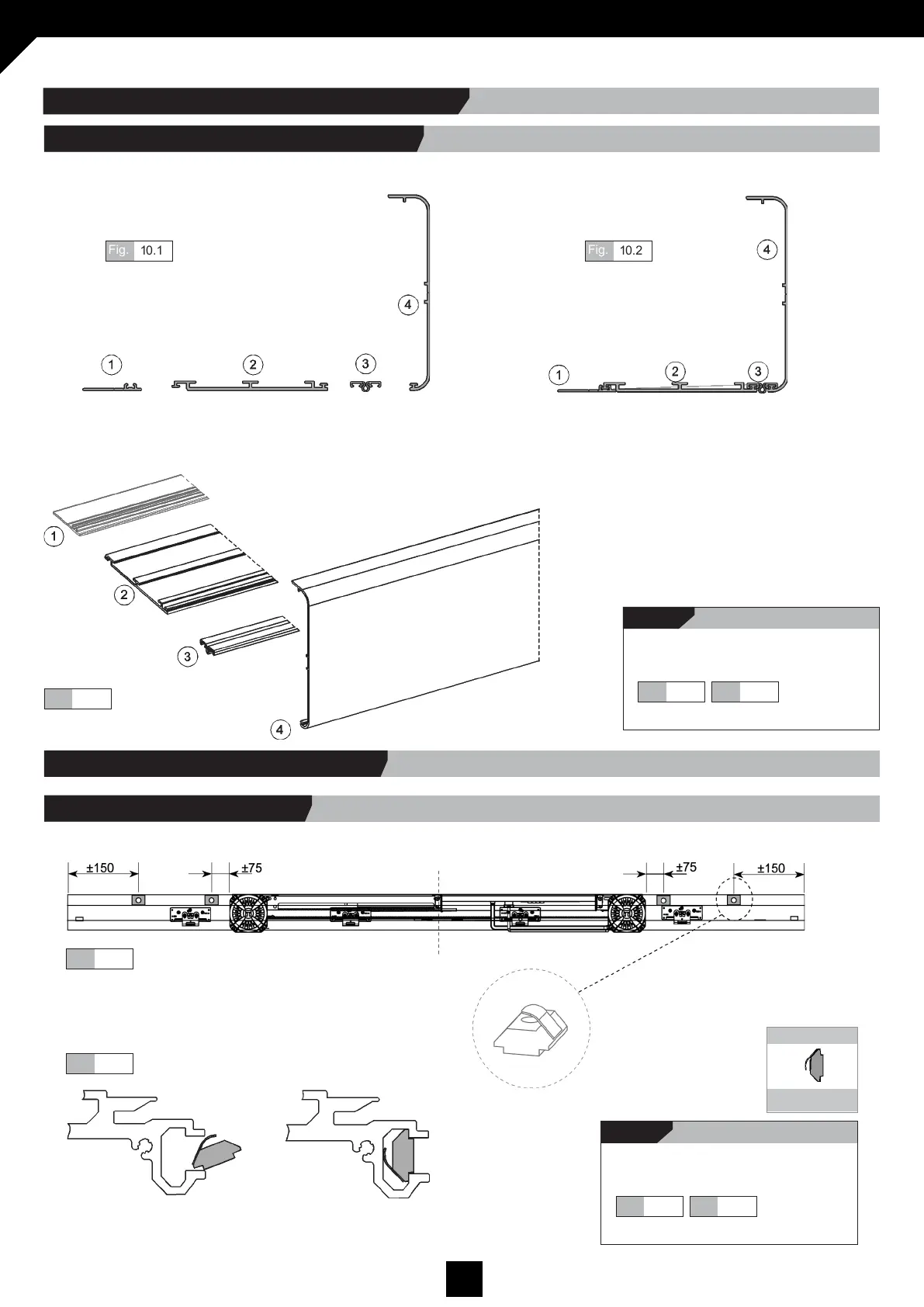

10.1 BOTTOM AND FRONT COVER PRE-ASSEMBLY
10. COVER ASSEMBLY
10.2.1 Insert nuts.
10.2 BRACKETS
