Manusa Visio C2H - Installation Dimensions

DMJOIC201EN - v2
VISIO C2H OPERATOR - INSTALLATION MANUAL
4
Fig.
1.1
i
Check that the dimensions correspond to the order.
(See delivery note.) AT x HL ; PL
AH, Opening Width =
HV, Beam Height =
Fig.
1.1

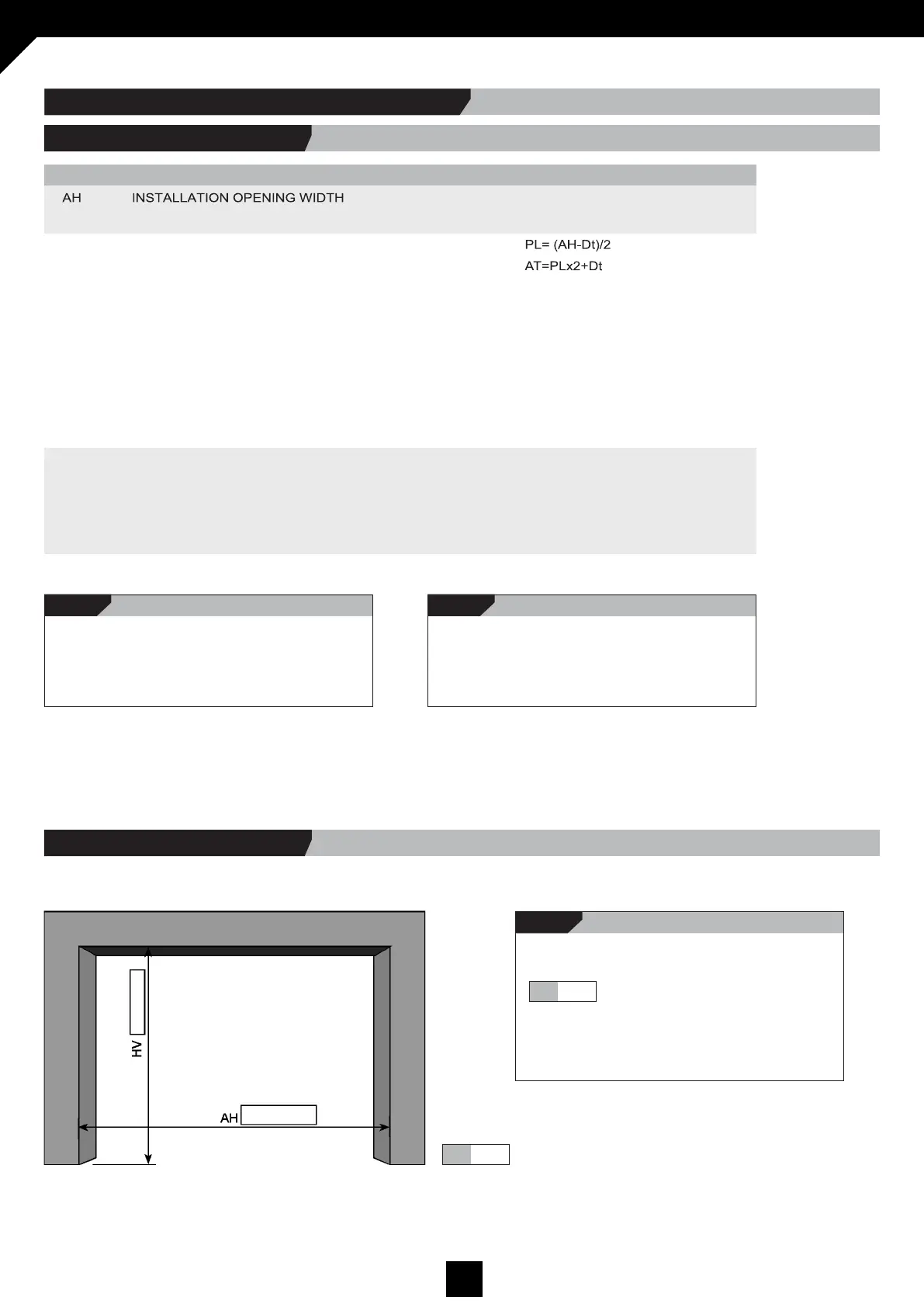

1.2 INSTALLATION DIMENSIONS
i
Sp* Overlap between door leaves depending on
frame:
Frame 20,30,35,40 = 40
Frame 44 = 95
i
Dop * Operator deduction depending on frame:
Frame 20,30,35,40 = 100
Frame 44 = 200
Frame SOS 44 = 300
Abr DESCRIPTION
FORMULA
HL DOOR CLEAR HEIGHT
PL DOOR CLEAR WIDTH
AT OVERALL OPERATOR WIDTH
HM SLIDING LEAF HEIGHT HM=HL
HF FIXED LEAF HEIGHT HF=HL
AM SLIDING LEAF WIDTH AM=PL/2+Sp
AF FIXED LEAF WIDTH AF=(AH-PL)/2
HV BEAM HEIGHT HV=HL+28
HT OVERALL DOOR HEIGHT HT=HL+125
HR MINIMUM CEILING HEIGHT HR=HT+(5 min)
Dt TOTAL DOOR DEDUCTION Dt=Dop+S1+S2dch+S2izq
S2izq MINIMUM SAFETY DISTANCE HEAD AND BODY AS PER DET 2.4.1
S2dch MINIMUM SAFETY DISTANCE HEAD AND BODY AS PER DET 2.4.1
S1 MINIMUM SAFETY DISTANCE HANDS AND FINGERS AS PER DET 2.4.2
Sp* OVERLAP FIXED LEAF / SLIDING LEAF DEP. ON FRAME
Dop * OPERATOR DEDUCTION DEP. ON FRAME
1.1 LEGEND AND FORMULAE
1. INSTALLATION DIMENSIONS AND CHECKS
