Manusa Visio C2H - Page 9

DMJOIC201EN - v2

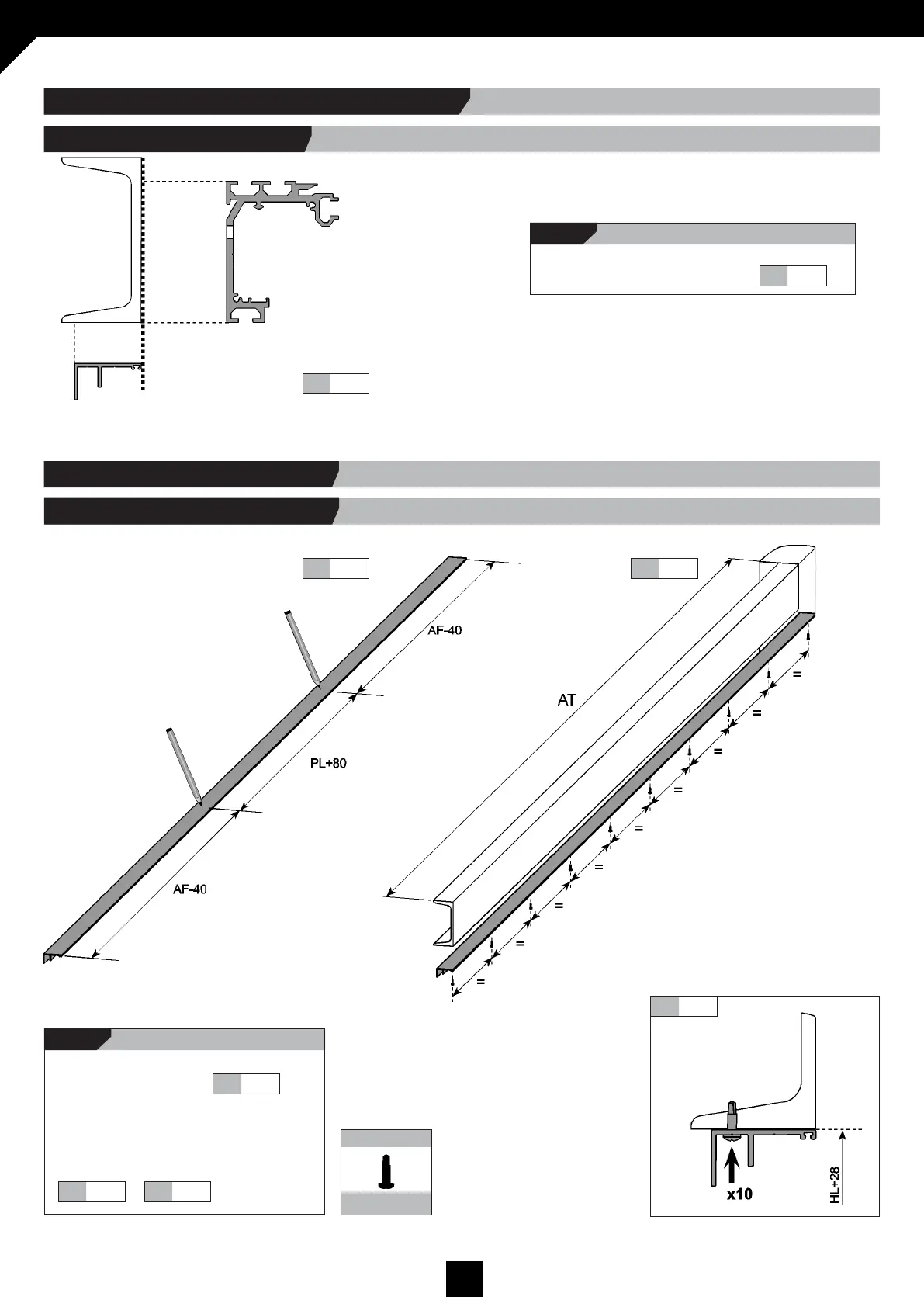

VISIO C2H OPERATOR - INSTALLATION MANUAL
9
Reference vertical
Nuts & bolts
DIN7504N
i
Make marks in the top lintel as shown in
the diagram.
Self thread top lintel to the UPN beam x10
self-threading screws placed at equal
intervals along the length of the beam, as
shown in the diagrams.
Fig. 3.3 Fig. 3.3
Fig. 3.2
Fig. 3.4
Fig. 3.3 Fig. 3.2
Fig. 3.1
i
Set out the sections as shown in the diagram.
Fig. 3.1
3.1 PROFILES LAYOUT
3. MAIN PROFILE AND TOP LINTEL ASSEMBLY
3.2 TOP LINTEL ASSEMBLY
3.2.1 Mark and screw.
