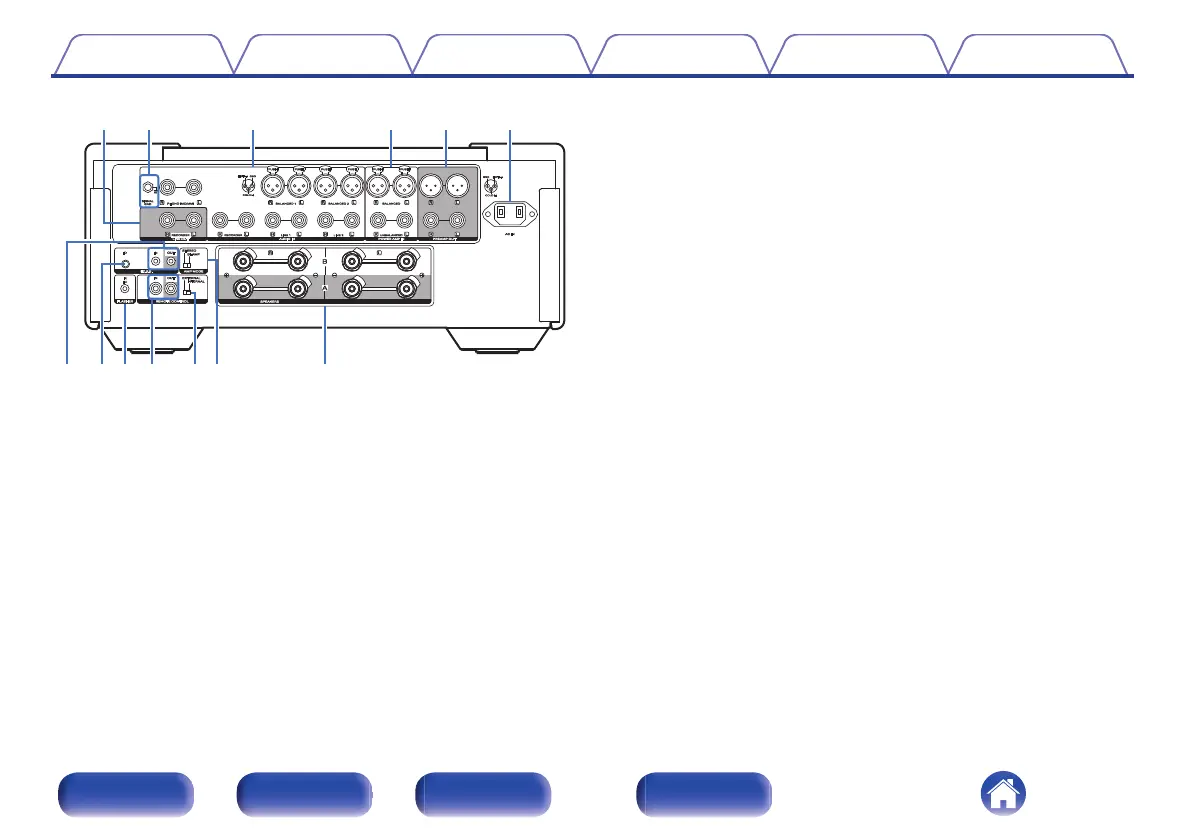

A
LINE OUT connectors (RECORDER)
Used to connect the input connector of a recorder. (v p. 23)
B
SIGNAL GND terminal
Used to connect a turntable. (v p. 21)
C
Analog audio input connectors (AUDIO IN)
Used to connect devices equipped with analog audio output
connectors.
0
“Connecting a playback device” (v p. 21)
0
“Connecting a recording device” (v p. 23)
D
Power amplifier connectors (POWER AMP IN)
Used to connect a pre-amplifier when this unit is used as a power
amplifier. (v p. 24)
E
PREAMP OUT connectors
Use this to add such equipment as a power amplifier. (v p. 24)
F
AC inlet (AC IN)
Used to connect the power cord. (v p. 38)
G
F.C.B.S. connectors
Used to connect a high quality playback system using two or more of
these units. (v p. 26)
H
F.C.B.S. ID button
Used to set the ID for F.C.B.S.. (v p. 28)
I
FLASHER IR IN jack
Used to connect a control box, etc. (v p. 35)
J
Remote control input/output connectors (REMOTE CONTROL)
Used to connect to a Marantz audio device that is compatible with the
remote control function. (v p. 36)
K
EXTERNAL/INTERNAL switch
Turn this switch to "INTERNAL", this unit receives the remote control
signal and the Marantz audio device connected to this unit using the
remote control connection operates by receiving the remote control
signal from this unit. (v p. 37)
L
AMP MODE switch
Used to switch the amplifier mode (STEREO/BI-AMP). (v p. 29)
M
Speaker terminals (SPEAKERS)
Used to connect speakers. (v p. 17)
