13

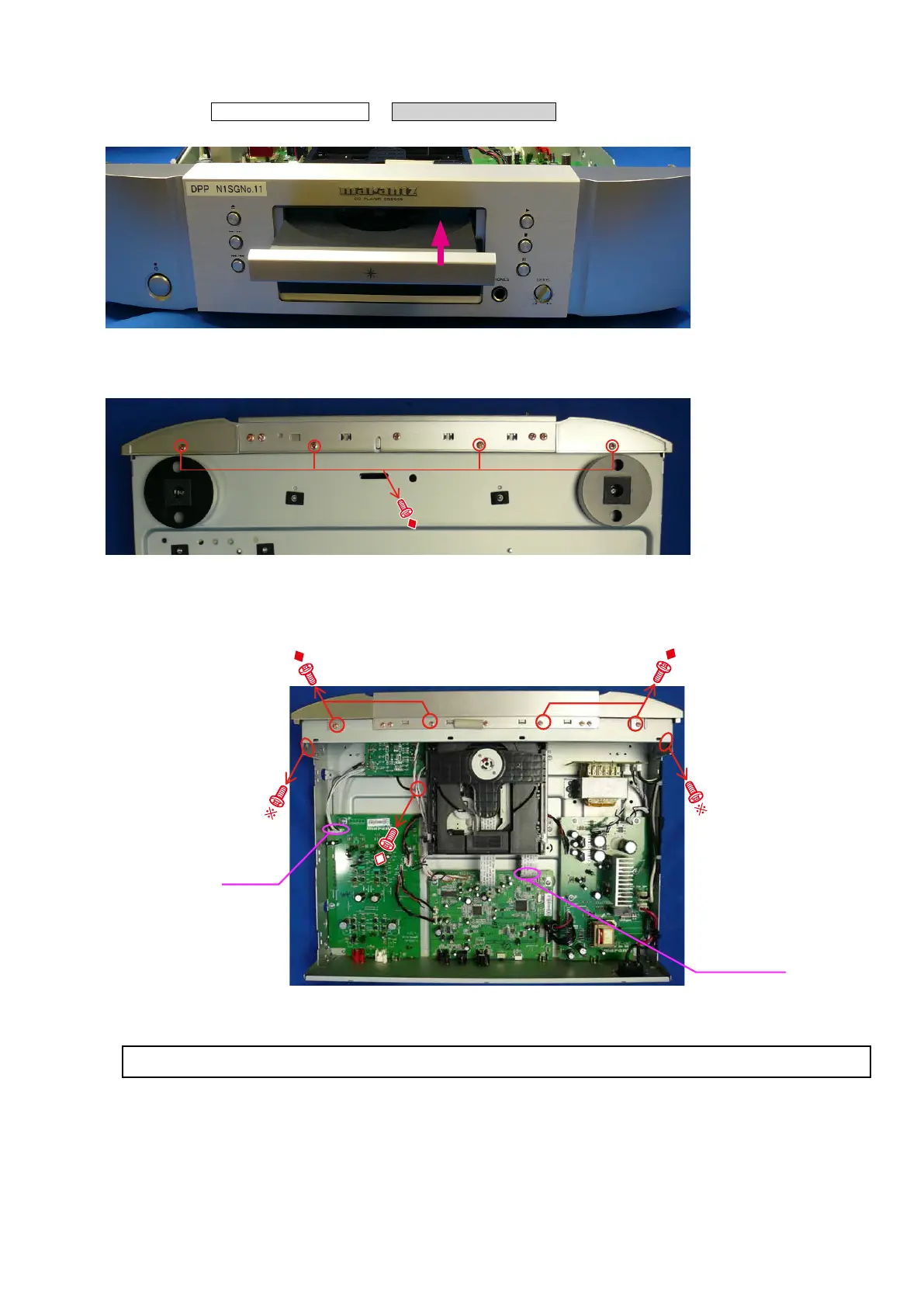

1. FRONT PANEL ASSY
Proceeding : CABINET TOP
→
FRONT PANEL ASSY
(1) Remove the loader panel.
(2) Remove the screws.
(3) Remove the connector wires and FFC. Remove the screws.
CN3301
FFC Cable
See "EXPLODED VIEW" for instructions on how to remove each PCB of the FRONT PANEL ASSY.
Shooting direction B
