Marantz CD5005 - Printed Circuit Boards Layout

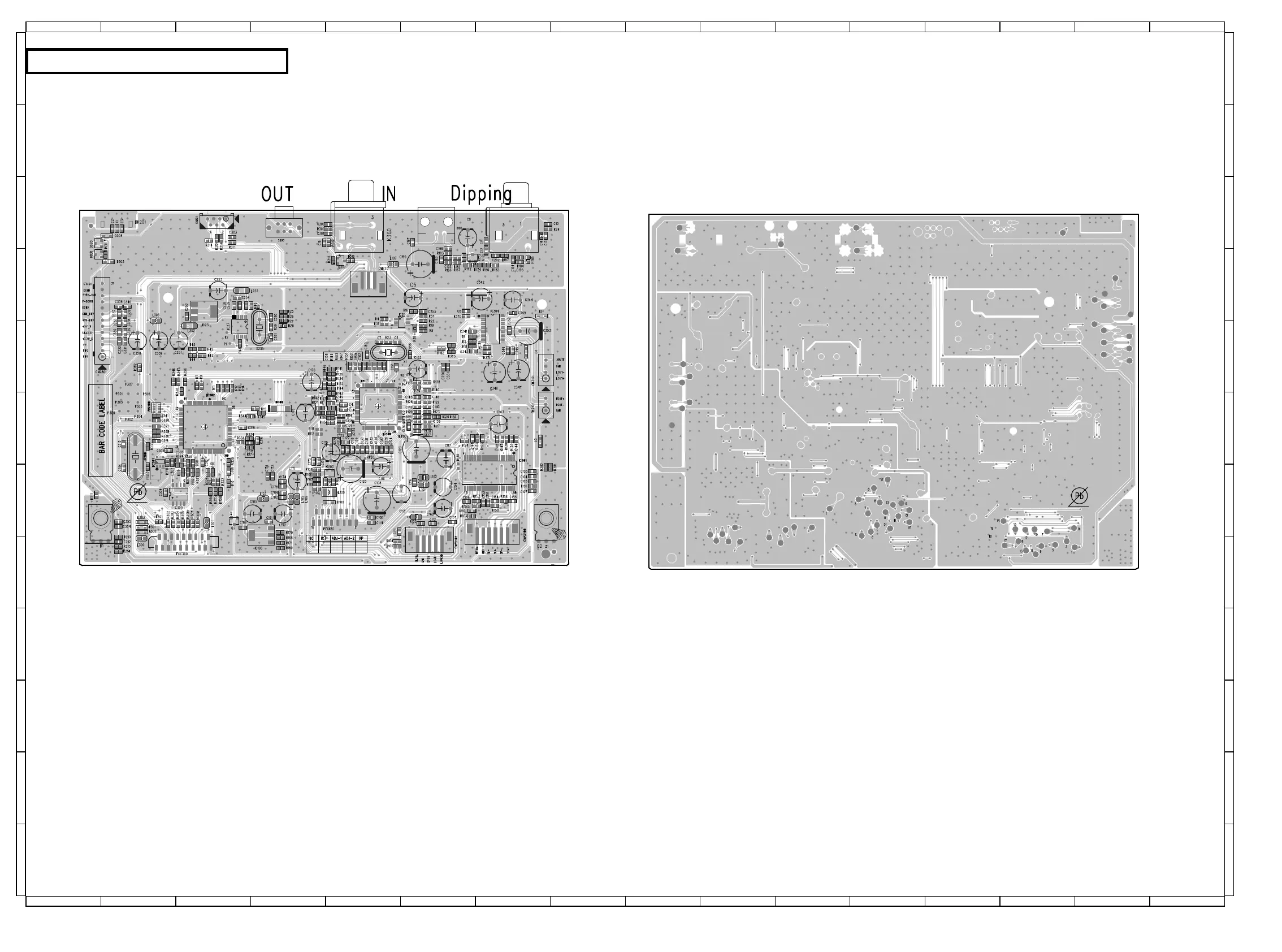

MAIN (A SIDE) MAIN (B SIDE)
Lead-free Solder
When soldering, use the Lead-free Solder (Sn-Ag-Cu).
PRINTED CIRCUIT BOARDS
