12

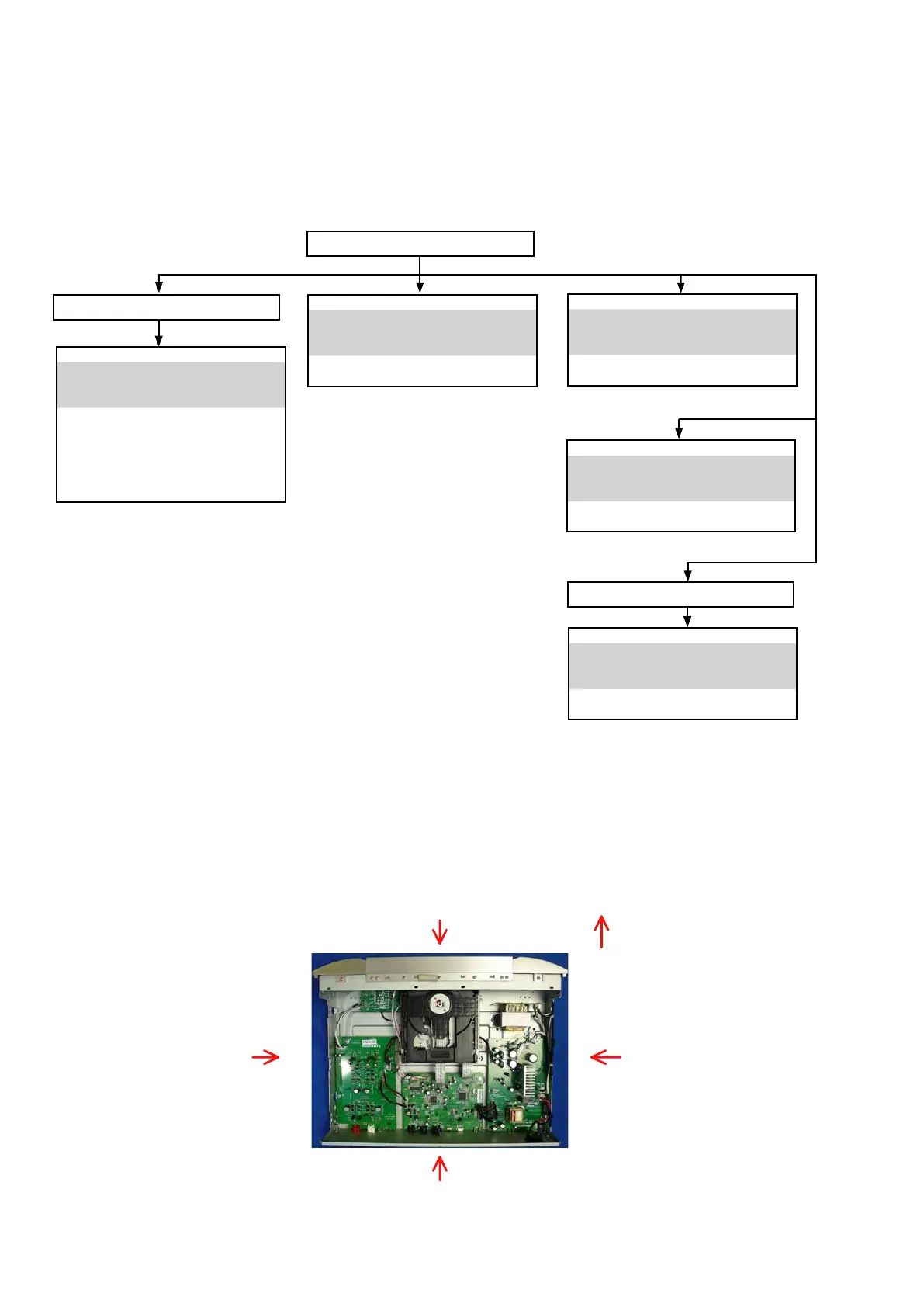

DISASSEMBLY
• Remove each part in the order of the arrows below.
• Reassemble removed parts in the reverse order.
• Read "Precautions During Work" before reassembling removed parts.
• If wire bundles are removed or moved during adjustment or part replacement, reshape the wires after completing the
work. Failure to shape the wires correctly may cause problems such as noise.
Explanatory Photos for DISASSEMBLY
• The angles from which the photos are taken are shown by "Photo angle
：
A, B, C, D".
• See the diagram below about the shooting direction of each photograph.
• Photographs with no shooting direction indicated were taken from the top of the unit.
• The photograph is CD5005N1G model.
The viewpoint of each photograph
(Shooting direction:X)
［
View from the top
］
Shooting direction: B
Shooting direction: C
Shooting direction: A
Shooting direction: D
Front side
FRONT PANEL ASSY
See "DISASSEMBLY"
1. FRONT PANEL ASSY"
and "EXPLODED VIEW"
FRONT PCB
(Ref. No. of EXPLODED VIEW : 14)
STANDBY PCB
(Ref. No. of EXPLODED VIEW : 15)
PHONE PCB
(Ref. No. of EXPLODED VIEW : 16)
POWER PCB
See "DISASSEMBLY"
3. POWER PCB"
and "EXPLODED VIEW"
POWER PCB
(Ref. No. of EXPLODED VIEW : 30)
CD MECHA ASSY
See "DISASSEMBLY"
5. MECHA ASSY"
and "EXPLODED VIEW"
CD MECHA ASSY
(Ref. No. of EXPLODED VIEW : 28)
CABINET TOP
MAIN PCB
See "DISASSEMBLY"
2. MAIN PCB"
and "EXPLODED VIEW"
MAIN PCB
(Ref. No. of EXPLODED VIEW : 28)
AUDIO PCB
See "DISASSEMBLY"
4. AUDIO PCB"
and "EXPLODED VIEW"
AUDIO PCB
(Ref. No. of EXPLODED VIEW: 29)
LOARDER PANEL
LOARDER PANEL
To Next Page
