Marantz CD5005 - Measurement Methods and Waveforms; Test Point Identification on Main PCB; Waveform Measurement Points

MEASURING METHOD AND WAVEFORMS
Measuring Disc: 4822 397 30184
TCD-784
(It is better to use wires for extending between the probe and test points.)

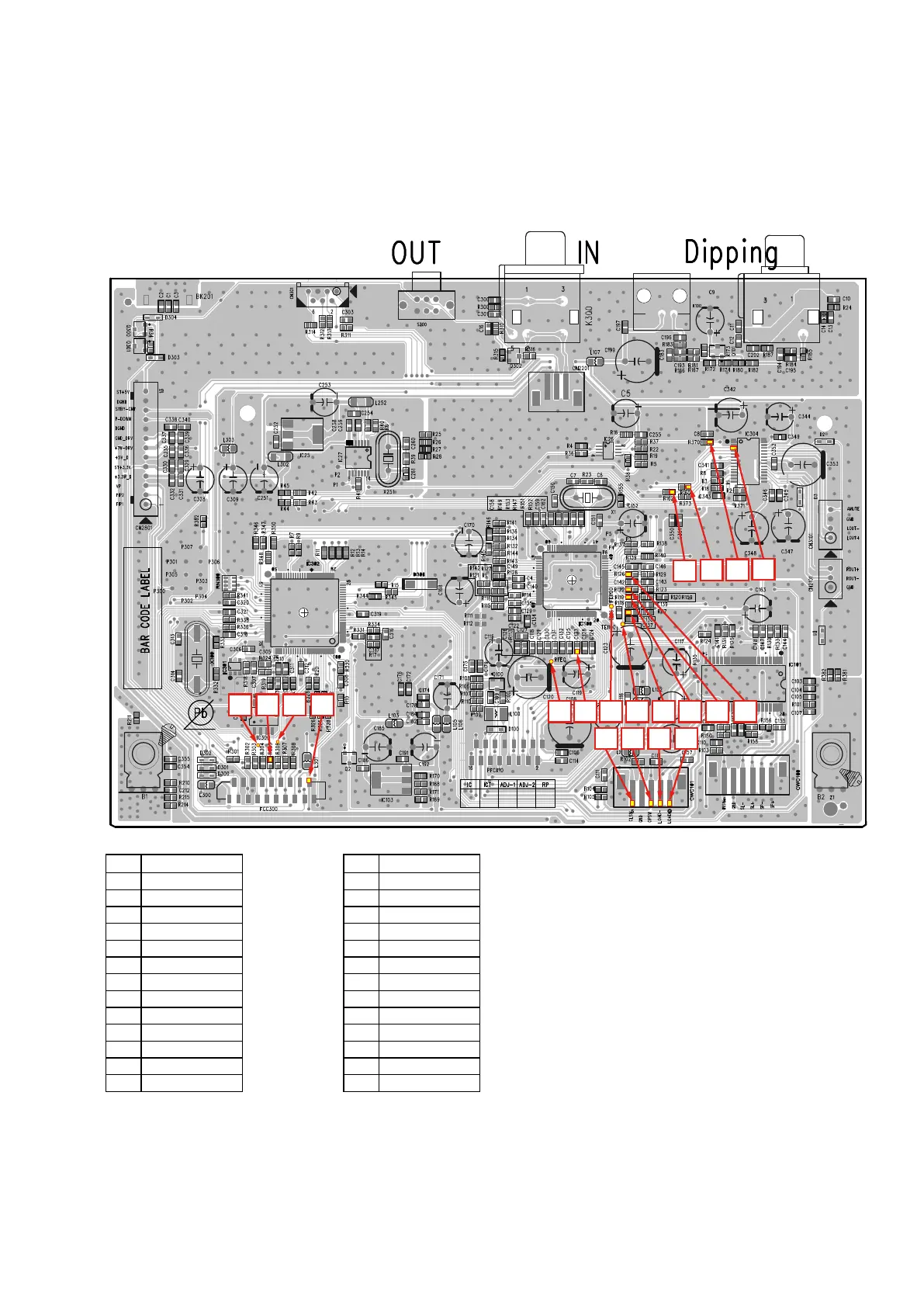

CPU12662Z_A MAIN PCB ASSY: TEST POINT
q
RFEQO
W1
VDD
w
RFO
W2
DIS CD
e
FSMONIT
W3
DIS SCL(CP)
r
FOO
W4
DIS SO(DA)
t
TEI
W5
MCLK
y
TRO
W6
BLK
u
FMO
W7
DATA
i
DMO
W8
LRCK
o
OP SW
Q0
CL SW
Q1
LOAD+
Q2
LOAD-
q w e t r y u i
Q0 o Q2 Q1
W4 W3 W2 W1
W8
W6
W5
W7
37
