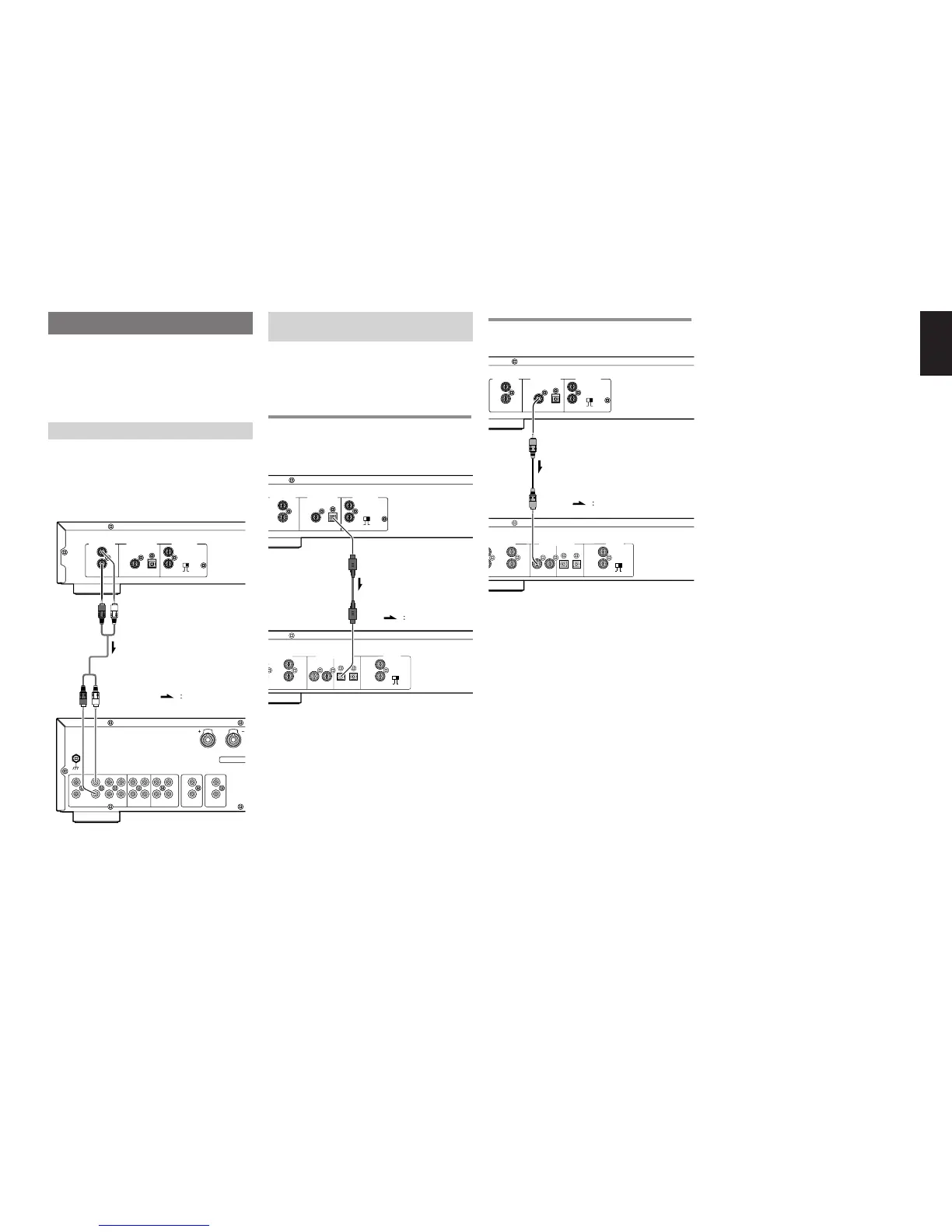

CONNECTIONS
This CD player is connected to an amplifier, CD
recorder and other components for use. To ensure
that the components are connected properly, refer
to the instruction manuals that come with the
components to be connected.
Before connecting the components, be absolutely
sure to turn off their power.
CONNECTING TO AN AMPLIFIER
Use the audio connecting cord to connect the player
with a stereo amplifier or AV amplifier. Do not connect
the player to the PHONO input connectors on the
amplifier.
When making the connections, insert the plugs
securely into the connectors. Failure to insert the
plugs securely may result in noise.
L
R
REMOTE
CONTROL
OPT.COAX.
ANALOG OUT
EXTERNAL INTERNAL
IN
OUT
DIGITAL OUT
L
R
CONTROL
REMOTE PRE OUT
GND
PHONO
R
L
CD
/DVD
AUX TUNERPHONO
L
R
REC PLAY
CD-R
OUT
IN
REC
PLAY
MD/TAPE
R
SPE
A
SPEAKERS IMP
E
CONNECTING TO A DIGITAL AUDIO
COMPONENT
The player has one digital optical output connector
and one digital coaxial output connector.
You can enjoy digital recording when the player is
connected to a CD recorder or other digital recording
component.
CONNECTING THE OPTICAL OUTPUT CONNECTOR
Use an optical digital connecting cable available on
the market. Insert the plug firmly in until it clicks into
place. Do not bend or bundle the optical digital
connecting cable.
L
R
REMOTE
CONTROL
OPT.COAX.
ANALOG OUT
EXTERNAL INTERNAL
IN
OUT
DIGITAL OUT
INTERNAL
EXTERNAL
N
ALOG IN/OUT
OUTPUT
OUTPUT
R
L
DIGITAL IN/OUT
INPUT
OPTICAL COAXIAL
CONTROL
REMOTE
INPUT OUTPUT
IN
OUT
(Red)
(White)
Audio connecting cord (supplied)
Signal flow
Amplifier
(Red)
(White)
Optical digital connecting
cable (available on market)
Signal flow
CD recorder, MD deck, AV amplifier, etc.
CONNECTING THE COAXIAL OUTPUT CONNECTOR
Use a coaxial digital connecting cable available on
the market.
L
R
REMOTE
CONTROL
OPT.COAX.
ANALOG OUT
EXTERNAL INTERNAL
IN
OUT
DIGITAL OUT
INTERNAL
EXTERNAL
A
NALOG IN/OUT
OUTPUT
OUTPUT
R
L
DIGITAL IN/OUT
INPUT
OPTICAL COAXIAL
CONTROL
REMOTE
INPUT OUTPUT
IN
OUT
Coaxial digital connecting cable
(available on market)
CD recorder, MD deck, AV amplifier, etc.
Signal flow
