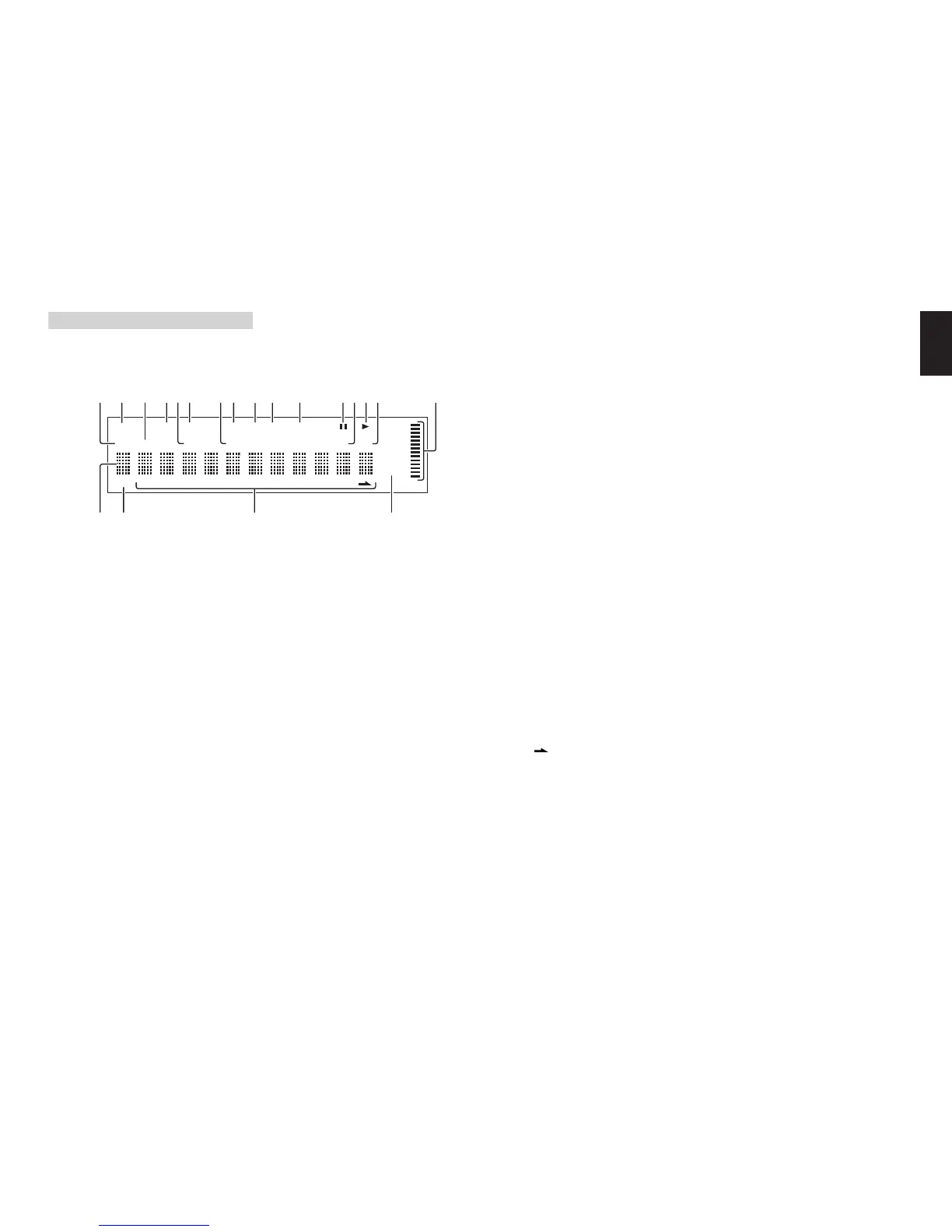

DISPLAY
aa
aa
a Main display
This displays the time information and text information
of the disc played, the setting menus, etc.
bb
bb
b TEXT indicator
This lights when a disc supporting CD-TEXT has
been loaded.
cc
cc
c DISC indicator
This flashes during readout of the table of contents
(TOC) information on the disc.
dd
dd
d TIMER indicator
This lights when timer play has been set.
ee
ee
e TTL (total track) indicator
This lights above the display of the total number of
tracks recorded on the disc.
ff
ff
f RNDM (random) indicator
This lights during random play.
gg
gg
g TRK (track) indicator
This lights above the display of the number of the
track being played, etc.
TIMER
DISC
TEXT 12 34 56 78 910 1112 1314 1516 1718 1920
TTL TRK INDX TTL TIME
MP3
RNDM PROG A — B RPT 1 S.PLAY
c
a
b t
g if h j k l n po q
s
ed m r
hh
hh
h PROG (program) indicator
This lights during program play.
ii
ii
i INDX (index) indicator
This lights above the display of the index number
being played, etc.
jj
jj
j A-B (A-B repeat) indicator
This lights during A-B repeat play.
kk
kk
k RPT (repeat) indicator
This lights during repeat play.
ll
ll
l 1 (1-track repeat) indicator
This lights during 1-track repeat play.
mm
mm
m S.PLAY (single track play) indicator
This lights during single track play.
nn
nn
n 8 (pause) indicator
This lights when play is temporarily suspended.
oo
oo
o TTL (total time) indicator
When the total remaining time or total program time
is displayed, this lights above that display.
pp
pp
p 3 (play) indicator
This lights during play.
qq
qq
q TIME indicator
This lights while the elapsed time or other such time
is displayed.
rr
rr
r Pitch control indicator
This displays the pitch control setting.
ss
ss
s MP3 indicator
This lights when a disc on which MP3 files have been
recorded is loaded.
tt
tt
t 1 - 20, (music calendar)
This displays the track numbers recorded on the disc,
the track numbers still to be played, and the track
numbers programmed for program play. During MP3
file play, the album is displayed.
