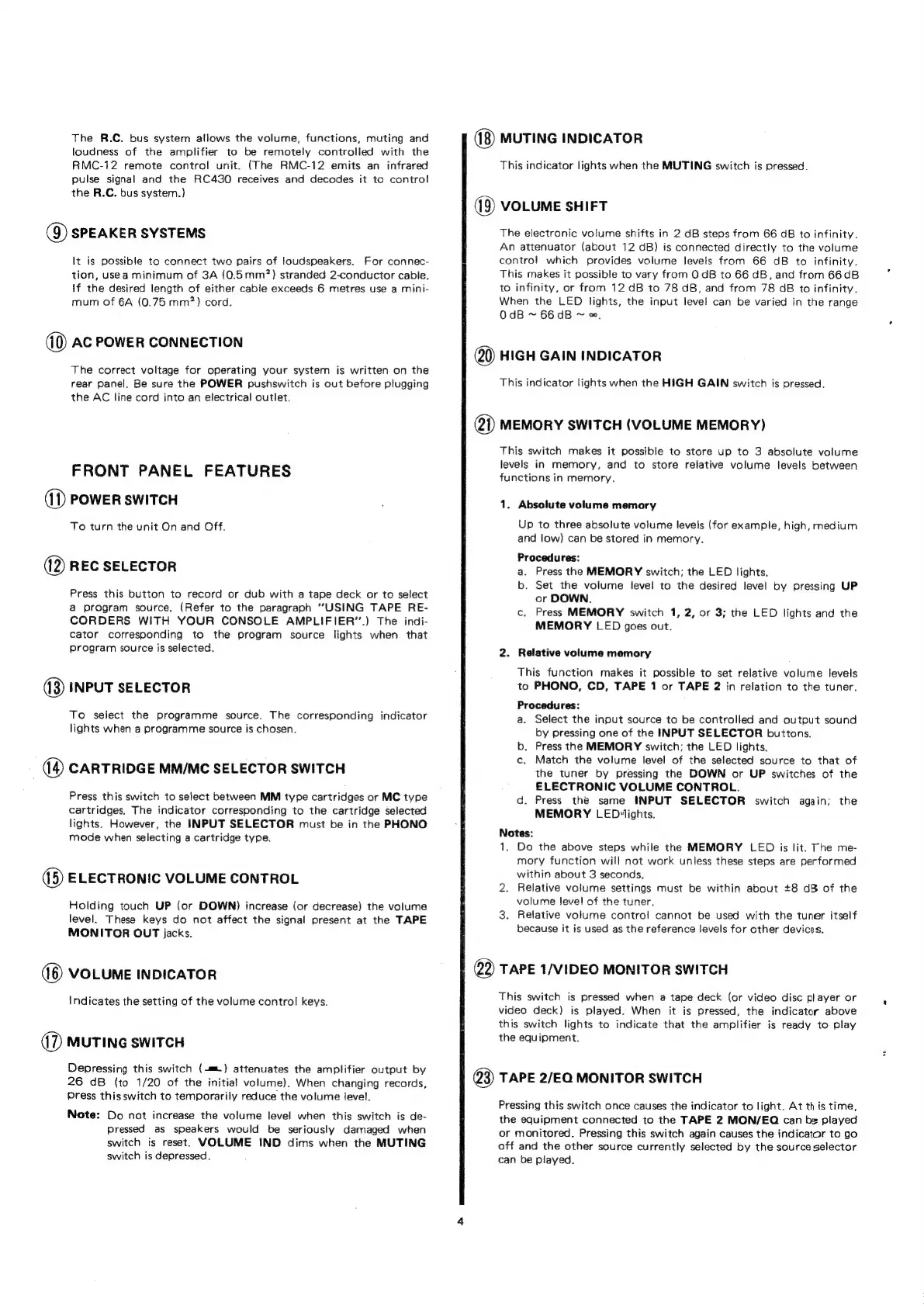

The
F.C.
bus
system
allows
the
volume,
functions,
muting
and
loudness
of
the
amplifier
to
be
remotely
controlled
with
the
RMC-12
remote
control
unit.
(The
RMC-12
emits
an
infrared
pulse
signal
and
the
RC430
receives
and
decodes
it
to
control
the
R.C.
bus
system.)
@Q)
SPEAKER
SYSTEMS
It
is
possible
to
connect
two
pairs
of
loudspeakers.
For
connec-
tion,
use
a
minimum
of
3A
(0.5mm?)
stranded
2-conductor
cable.
if
the
desired
length
of
either
cable
exceeds
6
metres
use
a
mini-
mum
of
6A
(0.75
mm?)
cord.
AC
POWER
CONNECTION
The
correct
voltage
for
operating
your
system
is
written
on
the
rear
panel.
Be
sure
the
POWER
pushswitch
is
out
before
plugging
the
AC
line
cord
into
an
electrical
outlet.
FRONT
PANEL
FEATURES
(11)
POWER
SWITCH
To
turn
the
unit
On
and
Off.
(2)
REC
SELECTOR
Press
this
button
to
record
or
dub
with
a
tape
deck
or
to
select
a
program
source,
(Refer
to
the
paragraph
“USING
TAPE
RE-
CORDERS
WITH
YOUR
CONSOLE
AMPLIFIER”.)
The
indi-
cator
corresponding
to
the
program
source
lights
when
that
program
source
is
selected.
(3)
INPUT
SELECTOR
To
select
the
programme
source.
The
corresponding
indicator
lights
when
a
programme
source
is
chosen.
CARTRIDGE
MM/MC
SELECTOR
SWITCH
Press
this
switch
to
select
between
MM
type
cartridges
or
MC
type
cartridges.
The
indicator
corresponding
to
the
cartridge
selected
lights.
However,
the
INPUT
SELECTOR
must
be
in
the
PHONO
mode
when
selecting
a
cartridge
type.
(15)
ELECTRONIC
VOLUME
CONTROL
Holding
touch
UP
(or
DOWN)
increase
(or
decrease)
the
volume
level.
These
keys
do
not
affect
the
signal
present
at
the
TAPE
MONITOR
OUT
jacks.
(16)
VOLUME
INDICATOR
Indicates
the
setting
of
the
volume
control
keys.
(7)
MUTING
SWITCH
Depressing
this
switch
(-m)
attenuates
the
amplifier
output
by
26
dB
(to
1/20
of
the
initial
volume).
When
changing
records,
Press
this
switch
to
temporarily
reduce
the
volume
level.
Note:
Do
not
increase
the
volume
level
when
this
switch
is
de-
Pressed
as
speakers
would
be
seriously
damaged
when
switch
is
reset.
VOLUME
IND
dims
when
the
MUTING
switch
is
depressed.
MUTING
INDICATOR
This
indicator
lights
when
the
MUTING
switch
is
pressed.
VOLUME
SHIFT
The
electronic
volume
shifts
in
2
dB
steps
from
66
GB
to
infinity.
An
attenuator
(about
12
dB)
is
connected
directly
to
the
volume
control
which
provides
volume
levels
from
66
dB
to
infinity.
This
makes
it
possible
to
vary
from
0
dB
to
66
dB,
and
from
66dB
to
infinity,
or
from
12
dB
to
78
GB,
and
from
78
GB
to
infinity.
When
the
LED
lights,
the
input
level
can
be
varied
in
the
range
OdB
~
66
dB
~
~,
HIGH
GAIN
INDICATOR
This
indicator
lights
when
the
HIGH
GAIN
switch
is
pressed.
(21)
MEMORY
SWITCH
(VOLUME
MEMORY)
This
switch
makes
it
possible
to
store
up
to
3
absolute
volume
levels
in
memory,
and
to
store
relative
volume
levels
between
functions
in
memory.
1.
Absolute
volume
memory
Up
to
three
absolute
volume
levels
(for
example,
high,
medium
and
low)
can
be
stored
in
memory.
Procedures:
a.
Press
the
MEMORY
switch;
the
LED
lights.
b.
Set
the
volume
level
to
the
desired
level
by
pressing
UP
or
DOWN.
c.
Press
MEMORY
switch
1,
2,
or
3;
the
LED
lights
and
the
MEMORY
LED
goes
out.
2.
Relative
volume
memory
This
function
makes
it
possible
to
set
relative
volume
levels
to
PHONO,
CD,
TAPE
1
or
TAPE
2
in
relation
to
the
tuner.
Procedures:
a.
Select
the
input
source
to
be
controlled
and
output
sound
by
pressing
one
of
the
INPUT
SELECTOR
buttons.
b,
Press
the
MEMORY
switch;
the
LED
lights.
c.
Match
the
volume
level
of
the
selected
source
to
that
of
the
tuner
by
pressing
the
DOWN
or
UP
switches
of
the
ELECTRONIC
VOLUME
CONTROL.
d.
Press
the
same
INPUT
SELECTOR
switch
again;
the
MEMORY
LED
lights.
Notes:
1.
Do
the
above
steps
while
the
MEMORY
LED
is
lit.
The
me-
mory
function
will
not
work
unless
these
steps
are
performed
within
about
3
seconds,
2.
Relative
volume
settings
must
be
within
about
+8
dB
of
the
volume
level
of
the
tuner.
3.
Relative
volume
contro!
cannot
be
used
with
the
tuner
itself
because
it
is
used
as
the
reference
levels
for
other
devices.
Q2)
TAPE
1/VIDEO
MONITOR
SWITCH
This
switch
is
pressed
when
a
tape
deck
(or
video
disc
player
or
video
deck)
is
played.
When
it
is
pressed,
the
indicator
above
this
switch
lights
to
indicate
that
the
amplifier
is
ready
to
play
the
equipment.
(23)
TAPE
2/EQ
MONITOR
SWITCH
Pressing
this
switch
once
causes
the
indicator
to
light.
At
this
time,
the
equipment
connected
to
the
TAPE
2
MON/EQ
can
be
played
or
monitored.
Pressing
this
switch
again
causes
the
indicator
to
go
off
and
the
other
source
currently
selected
by
the
source
selector
can
be
played.
we
