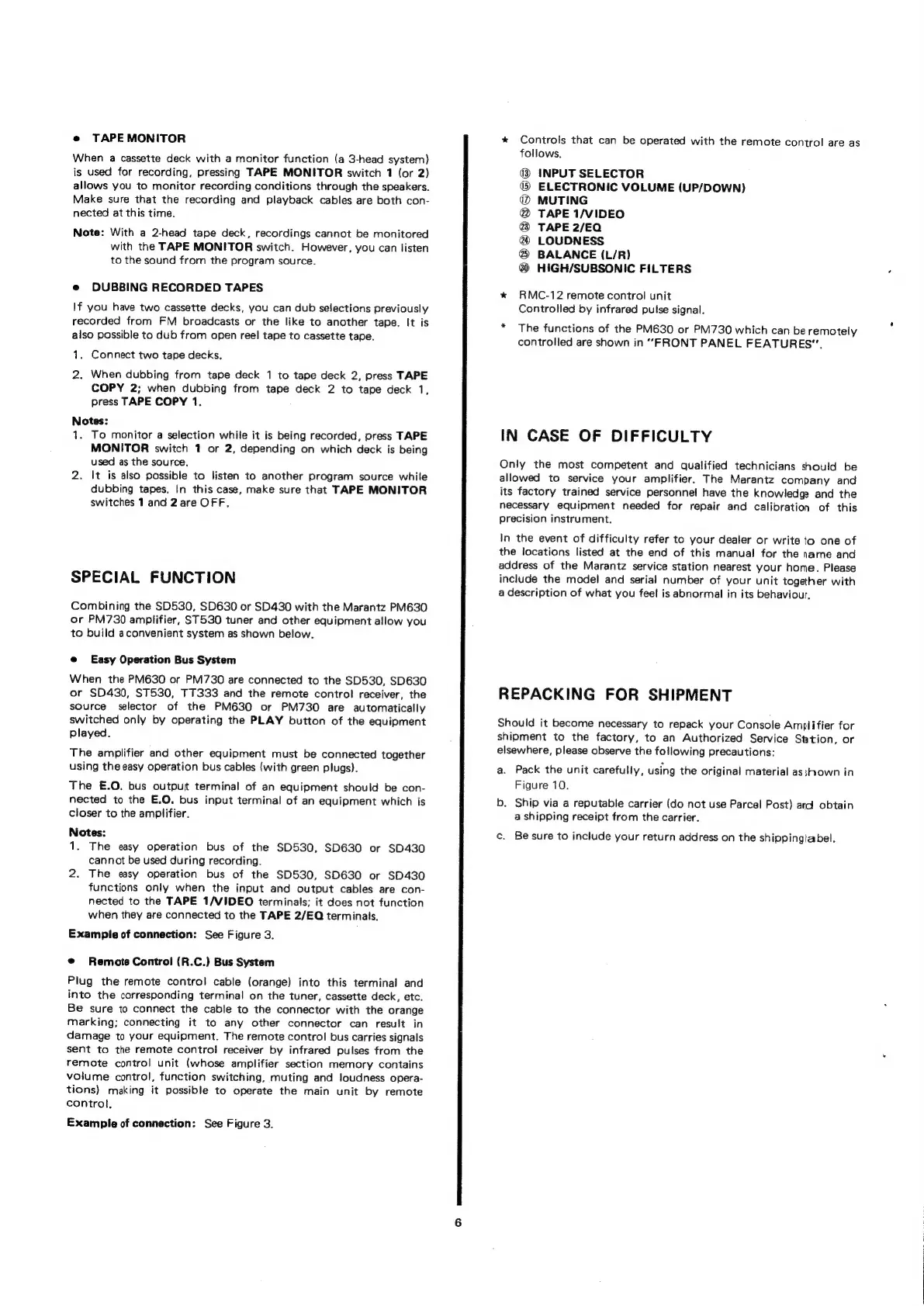

e@ TAPE MONITOR
When a cassette deck with a monitor function (a 3-head system)
is used for recording, pressing TAPE MONITOR switch 1 (or 2)
allows you to monitor recording conditions through the speakers.
Make sure that the recording and playback cables are both con-
nected at this time.
Note: With a 2-head tape deck, recordings cannot be monitored
with the TAPE MONITOR switch. However, you can listen
to the sound from the program source.
e DUBBING RECORDED TAPES
If you have two cassette decks, you can dub selections previously
recorded from FM broadcasts or the like to another tape. It is
also possible to dub from open reel tape to cassette tape.
1. Connect two tape decks,
2. When dubbing from tape deck 1 to tape deck 2, press TAPE
COPY 2; when dubbing from tape deck 2 to tape deck 1,
press TAPE COPY 1.
Notes:
1. To monitor a selection while it is being recorded, press TAPE
MONITOR switch 1 or 2, depending on which deck is being
used as the source.
2. It is also possible to listen to another program source while
dubbing tapes. In this case, make sure that TAPE MONITOR
switches 1 and 2 are OFF.
SPECIAL FUNCTION
Combining the SD530, SD630 or SD430 with the Marantz PM630
or PM730 amplifier, ST530 tuner and other equipment allow you
to build aconvenient system as shown below.
@ Easy Operation Bus System
When the PM630 or PM730 are connected to the SD530, SD630
or SD430, ST530, TT333 and the remote contro! receiver, the
source selector of the PM630 or PM730 are automatically
switched only by operating the PLAY button of the equipment
played.
The amplifier and other equipment must be connected together
using the easy operation bus cables (with green plugs).
The £.0. bus output terminal of an equipment should be con-
nected to the E.Q. bus input terminal of an equipment which is
closer to the amplifier.
Notes:
1. The easy operation bus of the SD530, SD630 or SD430
cannot be used during recording.
2. The easy operation bus of the SD530, SD630 or SD430
functions only when the input and output cables are con-
nected to the TAPE 1/VIDEO terminals; it does not function
when they are connected to the TAPE 2/EQ terminals.
Example of connection: See Figure 3.
© Remote Control (R.C.) Bus System
Plug the remote control cable (orange) into this terminal and
into the corresponding terminal on the tuner, cassette deck, etc.
Be sure to connect the cable to the connector with the orange
marking; connecting it to any other connector can result in
damage to your equipment. The remote control bus carries signals
sent to the remote control receiver by infrared pulses from the
remote control unit (whose amplifier section memory contains
volume control, function switching, muting and loudness opera-
tions) making it possible to operate the main unit by remote
control.
Example of connection: See Figure 3.
*
Controls
that
can
be
operated
with
the
remote
control
are
as
follows.
@® INPUT SELECTOR
® ELECTRONIC VOLUME (UP/DOWN)
MUTING
TAPE 1/VIDEO
TAPE 2/EQ
LOUDNESS
BALANCE (L/R)
HiGH/SUBSONIC FILTERS
288889
* RMC-12 remote control unit
Controlled by infrared pulse signal.
*
The
functions
of
the
PM630
or
PM730
which
can
be
remotely
controlled
are
shown
in
“FRONT
PANEL
FEATURES",
IN CASE OF DIFFICULTY
Only the most competent and qualified technicians should be
allowed to service your amplifier. The Marantz company and
its factory trained service personnel have the knowledge and the
necessary equipment needed for repair and calibration of this
precision instrument.
In the event of difficulty refer to your dealer or write to one of
the locations listed at the end of this manual for the name and
address
of
the
Marantz
service
station
nearest
your
hone.
Please
include the model and serial number of your unit together with
a description of what you feel is abnormal in its behaviour.
REPACKING FOR SHIPMENT
Should
it
become
necessary
to
repack
your
Console
Amplifier
for
shipment
to
the
factory,
to
an
Authorized
Service
Station,
or
elsewhere, please observe the following precautions:
a. Pack the unit carefully, using the original material as shown in
Figure 10.
b. Ship via a reputable carrier (do not use Parcel Post) ard obtain
a shipping receipt from the carrier.
c.
Be
sure
to
inciude
your
return
address
on
the
shippinglabel.
