Marantz DV9600 - Audio Output; Digital Audio Characteristics; Video Outputs

1
General
System.......................... DVD-Video, DVD-Audio, DVD-R/RW,
Video-CD, Super Audio CD, CD, MP3 files and JPEG files
Power requirements
F Version............................................AC 100 V, 50 / 60 Hz
K Version ..................................................AC 220 V, 50 Hz
L Version...................................................AC 110 V, 60 Hz
N Version ..................................................AC 230 V, 50 Hz
S Version ...........................................AC 230 V, 50 / 60 Hz
U Version ..................................................AC 120 V, 60 Hz
Power consumption ........................................................35 W
Power consumption in standby mode............................0.6 W
Weight .....................................................8.6 kg (18 lb 15 oz)
Dimensions......................... 440 (W) x 384 (D) x 115 (H) mm
(17.3 (W) x 15.1 (D) x 4.5 (H) in.)
(Not including protruding cables, etc.)
Operating temperature ... + 5 °C to + 35 °C (+ 41 °F to + 96 °F)
Operating humidity ................5 % to 85 % (no condensation)
S-Video output
Y (luminance) - Output level ............................. 1 Vp-p (75
Ω
)
C (color) - Output level : NTSC.................. 286 mVp-p (75
Ω
)
: PAL ..................... 300 mVp-p (75
Ω
)
Jacks ...............................................................S-VIDEO jack
Video output (2 individual outputs)
Output level....................................................... 1 Vp-p (75
Ω
)
Jacks .......................................................................RCA jack
Component video output (Y, C
B
/P
B
, C
R
/P
B
)
Output level...............................................Y : 1.0 Vp-p (75
Ω
)
C
B
/P
B
, C
R
/P
R
: 0.7 Vp-p (75
Ω
)
Jacks .......................................................................RCA jack
HDMI output
Output Terminal ............................................................19-pin

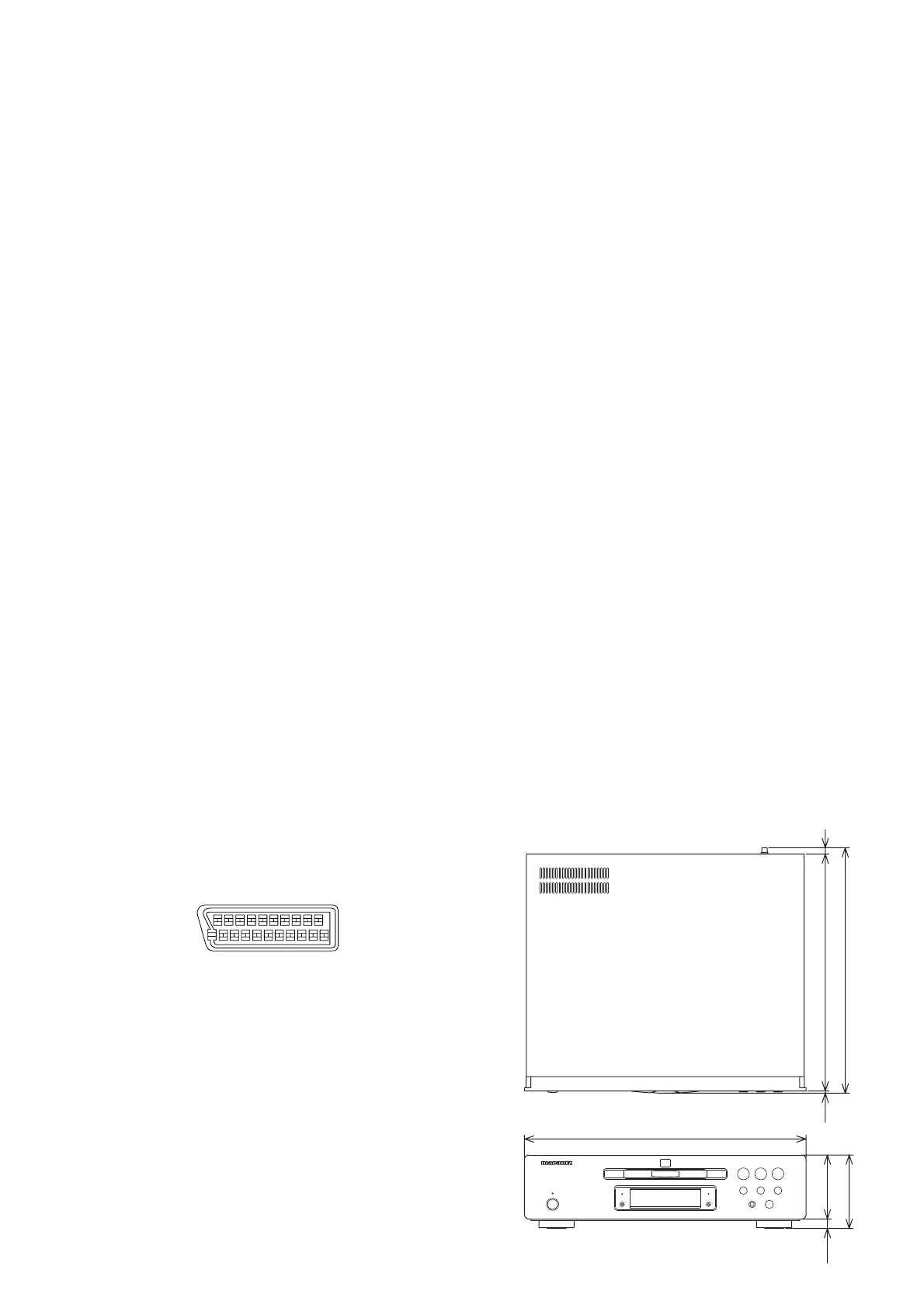

21-pin connector assignment
AV connector output ....................................21-pin connector
This connector provides the video and audio signals for
connection to a compatible color TV or monitor.
D1/D2 video output [except for N, U Version]
Output level...............................................Y : 1.0 Vp-p (75
Ω
)
C
B
/P
B
, C
R
/P
R
: 0.7 Vp-p (75
Ω
)
Jacks ..................................................................... D terminal
Audio output
Output level (During audio output).........2 Vrms (1 kHz, 0 dB)
Number of channels .............................................................2
Jacks .......................................................................RCA jack
Audio output (multi-channel / L, R, C, SW, LS, RS)
Output level (During audio output).........2 Vrms (1 kHz, 0 dB)
Number of channels .............................................................2
Jacks .......................................................................RCA jack
Digital audio characteristics
Frequency response............4 Hz to 44 kHz (DVD fs: 96 kHz)
4 Hz to 88 kHz (DVD-Audio fs: 192 kHz)
S/N ratio...................................................................... 130 dB
Dynamic range ........................................................... 110 dB
Total harmonic distortion .........................................0.0008 %
Wow and flutter.................................... Limit of measurement
(± 0.001 % W. PEAK) or lower
Digital output
Optical digital output..................................Optical digital jack
Coaxial digital output ...............................................RCA jack
i.LINK in/output
Output Terminal ..................................................4-pin (S400)
Other terminals
Control in/out ...........................................................RCA jack
Flasher input..................................................Mini jack (3.5Ø)
RS232C................................................................................1
Accessories
Audio/Video cable (yellow / red / white)................................1
System control cable ............................................................1
Power cable..........................................................................1
Remote controller .................................................................1
AA (R6P) dry cell batteries...................................................2
User guide ............................................................................1
1. TECHNICAL SPECIFICATIONS
PIN no.
1 Audio 2/R out 11 G out
3 Audio 1/L out 15 R or C out
4 GND 17 GND
7 B out 19 Video out or Y out
8 Status 21 GND
2018161412108642
21191715131197531
440
115 100
15
4
384 370 1
