[PD01] QT01 : SiI9030CTU-7
Si
I
9030 Features
PanelLink Cinema Transmitter
Industry-Standard
Compliance
• HDMI 1.0
• DVI 1.0
• EIA/CEA-861B
• HDCP 1.1
Digital Video Output
• Integrated PanelLink
®
core
• Supports DTV (480i/576i/480p/
576p/720p/1080i/1080p) and PC
(VGA/XGA/SXGA/WSXGA) resolutions
• Flexible video interface supports DVD
and HD MPEG decoders
- 12/24-bit RGB YCbCr 4:4:4
- 16/20/24-bit YCbCr 4:2:2
- 8/10/12-bit YCbCr 4:2:2
(ITU-R BT.601 & BT.656)
• Integrated YCbCr
<
—
>
RGB color space
conversion
• 4:2:2
<
—
>
4:4:4 up-converter
• Programmable Data Enable (DE)
generator
Digital Audio Output
• DVD-Audio support thru 4xI
2
S inputs
• Supports 2-channel 192kHz or
8-channel 96kHz
• Supports IEC60958 2-channel PCM or
IEC61937 compressed audio (Dolby
Digital, DTS, etc.)
• Industry-standard S/PDIF input
Content Protection
• Integrated HDCP cipher engine
• Pre-programmed HDCP keys
- Simplify manufacturing process
- Most secure solution available
- Lower system, manufacturing costs
• Encrypts both video and audio
System Operation
• Register-programmable via slave I
2
C
interface
• Master I
2
C simplifies system design
• Flexible interrupt registers with
interrupt pin
• Monitor detection supported through
hot plug and receiver detection
Power Management
• 1.8 V core provides low-power
operation
• Flexible power-down modes
Silicon Image’s
SiI 9030 Starter Kit
(CP9030HDMI)
Contents include:
Hardware
• SiI 9030 Transmitter Stand Alone Board
• HDMI to HDMI cable
Software
• HDMIGear Software Tool
Documentation
• User’s Guide
• Schematics
• Bill of Materials (BOM)

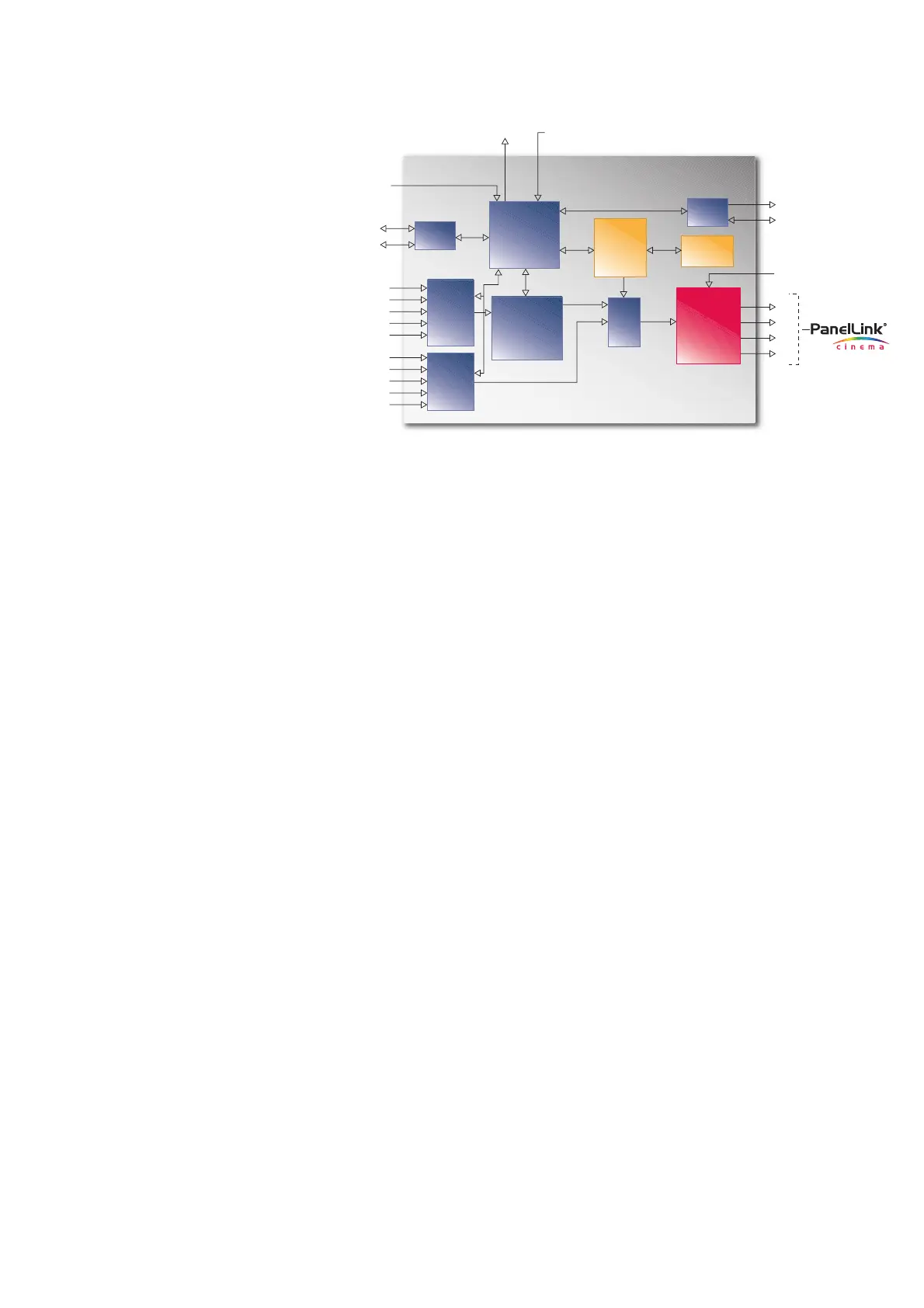

RESET#
CSDA
CSCL
VSYNC
HSYNC
IDCK
DE
D[23:0]
INT
HPD
I
2
C
Slave
Registers
and
Configuration
Logic
HDCP Keys
E
2
PROM
Audio
Capture
Logic
Si
I
9030
EXT_SWING
Tx0
Tx1
Tx2
TxC
PanelLink
TMDS
Core
S/PDIF
MCLK
HDCP
Encryption
Engine
XOR
Mask
DSCL
DSDA
I
2
C
Master
Video
Data
Capture
Logic/DE
Generator
WS
SCK
SD[3:0]
YCbCr-to-RGB
Color Space
Converter/
4:2:2 to 4:4:4
Converter
183
