Connecting MM8077 with an AV pre-tuner (AV8801)

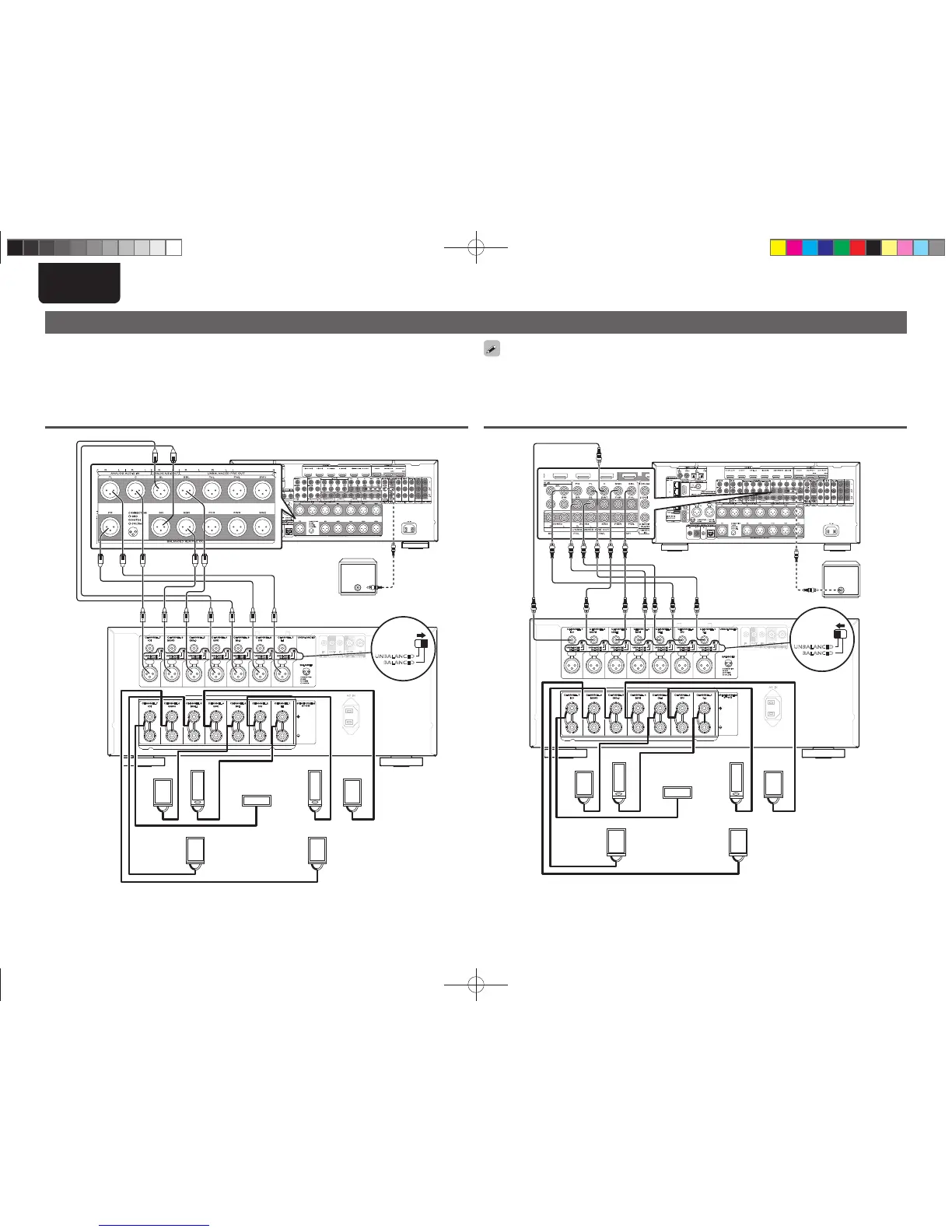

The illustrations below show connection examples for performing 7.1-channel surround playback using the
MM8077 and AV pre-tuner (AV8801).
Balanced connections
(when connecting to the XLR input connectors)
wqwq wqwq
wq wq
BALANCED
UNBALANCED
(FL)
(C)
(FR)
(SL)
(SR)
(SBL) (SBR)
AV pre-tuner AV8801
MM8077
• For settings and operating procedures of the AV8801, see the AV8801 owner’s manual.
