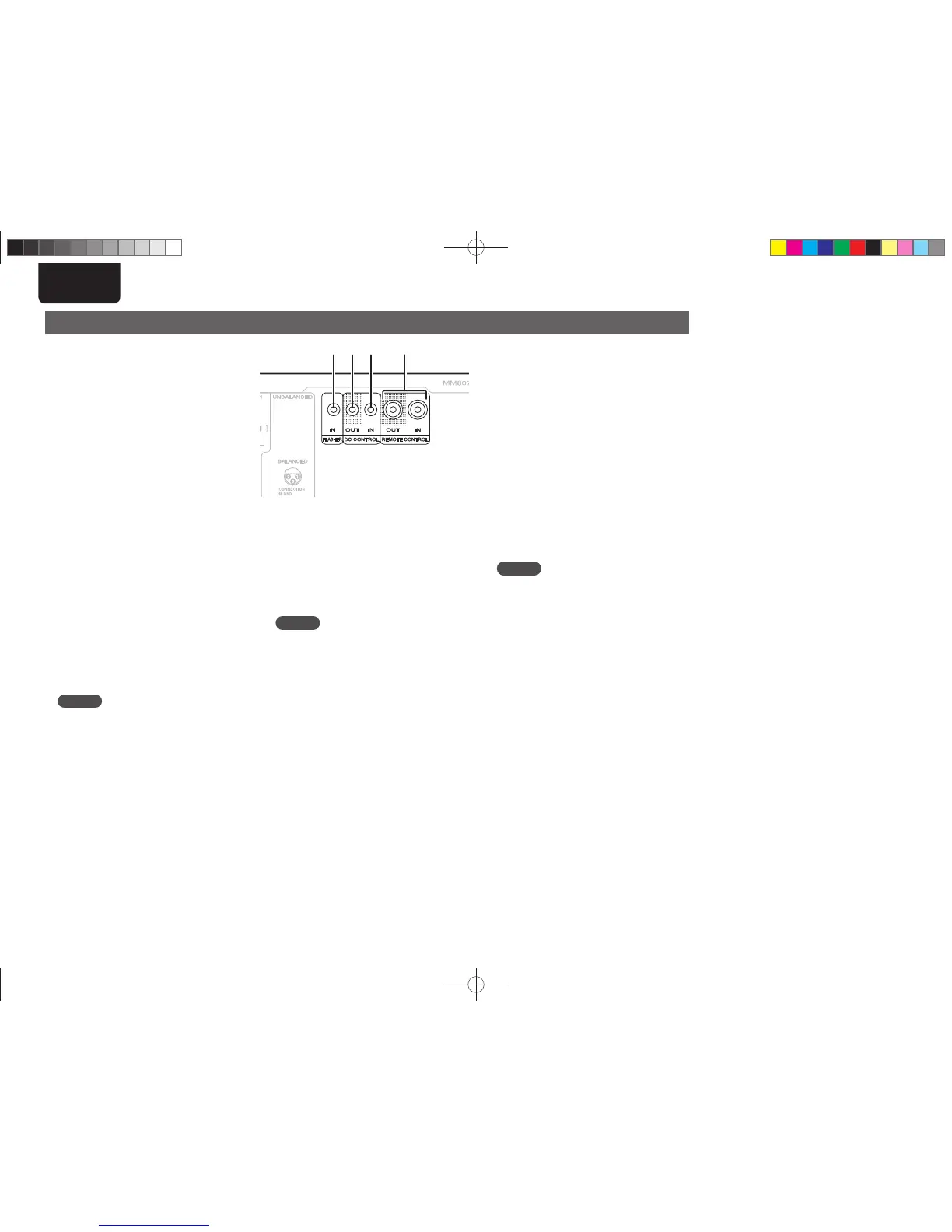

Connection to an external control device
qw re
q Flasher input connector (FLASHER IN)
Used when connecting a control box or other
control device to this unit, and using such a
device to control this unit.
wDC control output connector
(DC CONTROL OUT)
Used when connecting a device that has a DC
control input terminal to this unit, and linking
the power ON/STANDBY function of this device
with the power ON/STANDBY of the connected
device.
An electrical signal of max 12 V/44 mA is output
from the DC control output terminal.
For details, see the instruction manual of the
connected device.
NOTE
• Do not use the DC control output terminal as
the power supply for an external device.
• When using this unit with a device connected
to the DC control connector, set the auto
standby function to “Off” (vpage 9
“Setting the power to standby automatically
(Auto standby function)”).
eDC control input connector
(DC CONTROL IN)
Used when connecting a unit that has a DC
control input terminal to this device, and linking
the power ON/STANDBY of the connected
device with the power ON/STANDBY of this
unit.
For details, see the instruction manual of the
connected device.
NOTE
• When a 5 V – 15 V voltage is input to the DC
control input terminal, the power of this unit
switches ON.
However, inputting voltage outside of this
range will cause damage to this unit.
• When using this unit with a device connected
to the DC control connector, set the auto
standby function to “Off” (vpage 9
“Setting the power to standby automatically
(Auto standby function)”).
rRemote control connector
Used when connecting an external control
device to this unit, and using the device to
control this unit.
NOTE
When connecting a marantz AV8801 or AV7701
AV pre-tuner, you can switch the power of this
unit to ON/STANDBY together with the AV8801/
AV7701 power supply.
For details, see the AV8801 or AV7701 owner’s
manual.
1.MM8077NENG2nd1030.inddSec81.MM8077NENG2nd1030.inddSec8 2012/11/0116:56:402012/11/0116:56:40

Marantz MM8077 Specifications

General

Damping factor	100
Amplifier class	-
Frequency range	10 - 100000 Hz
Output impedance	8 Ω
Input sensitivity	1200 mV
Audio output channels	- channels
Peak power per channel	- W
Signal-to-Noise Ratio (SNR)	105 dB
Total Harmonic Distortion (THD)	0.03 %
RMS power output per channel (8 Ohm)	150 W
Pre out port	No
Line inputs (RCA)	1
Speakers connectivity type	RCA
Purpose	Home
Material	Aluminium, Glass, Metal
Product color	Black
Channels quantity	7 channels
Connectivity technology	Wired
Power consumption (standby)	0.4 W
Power consumption (typical)	880 W

Weight and Dimensions

Depth	384 mm
Width	440 mm
Height	185 mm
Weight	18000 g
