Marantz NR1603 - Part Names and Functions; Front Panel

132

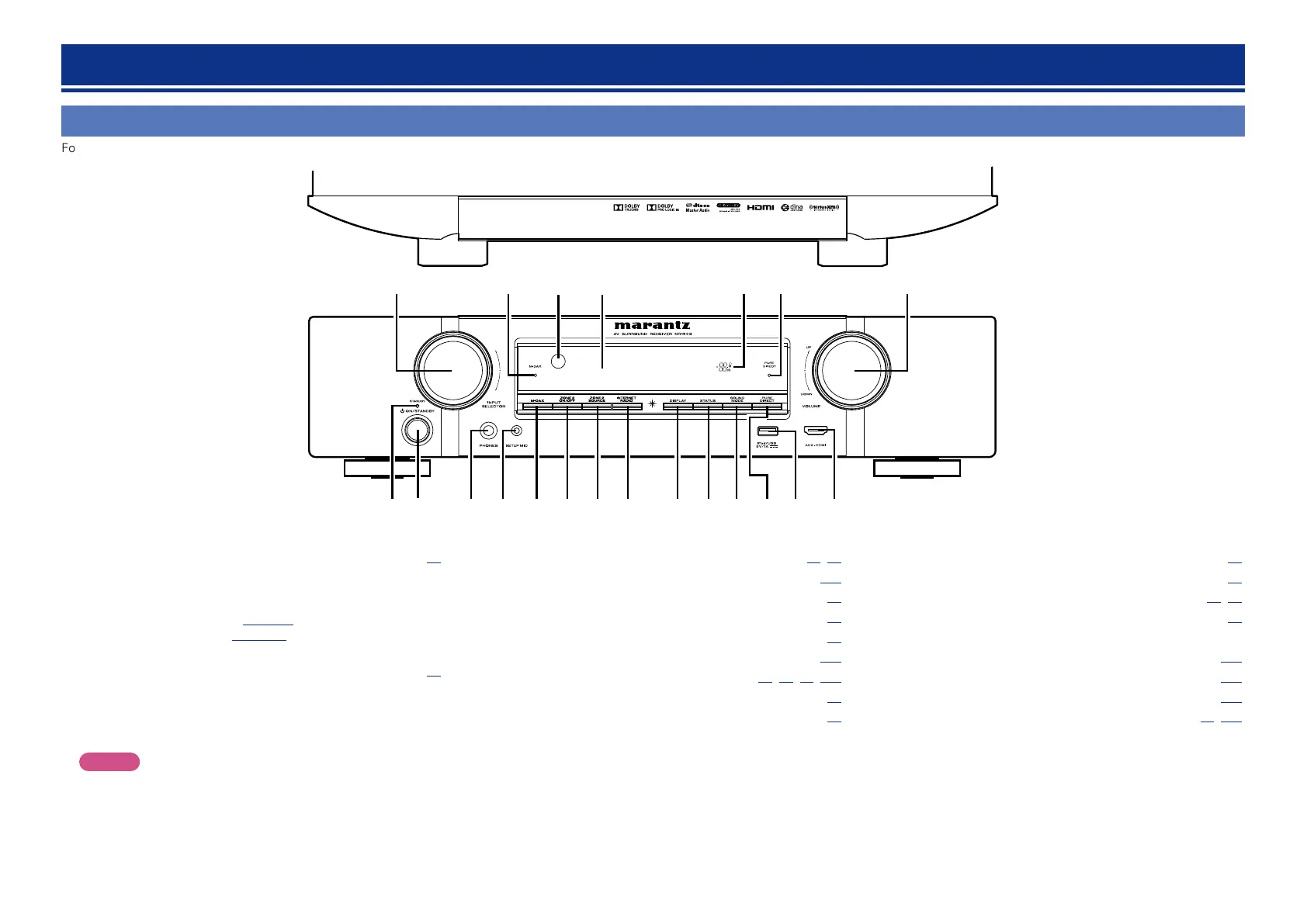

Front panel
For buttons not explained here, see the page indicated in parentheses ( ).
q e r y u it
Q5
w
W0 Q9
Q6W1 Q7Q8
Q0o Q3Q1 Q2 Q4
q STANDBY indicator ································································· (31)
GSTANDBY indicator statusH
•Power on : Off
•Normal standby : Red
•When “HDMI Control” (vpage109) is set to “On” : Orange
•When “IP Control” (vpage 122) is set to “Always On” :
Orange
w Power operation button (X ON/STANDBY) ························· (31)
Turns power to this unit on and off (standby).
e Headphones jack (PHONES)
When the headphones are plugged into this jack, audio will no
longer be output from the connected speakers.
NOTE
To prevent hearing loss, do not raise the volume level excessively
when using headphones.
Q3 iPod/USB port ········································································· (18)
Q4 AUX-HDMI connector ····························································· (10)
Q5 VOLUME knob ··································································· (32, 95)
Q6 PURE DIRECT indicator ··························································· (68)
Q7 Master volume indicator
Q8 Display ···················································································· (133)
Q9 Remote control sensor ························································· (136)
W0 M-DAX indicator ···································································· (105)
W1 INPUT SELECTOR knob ·················································· (31, 151)
r SETUP MIC jack ································································· (26, 85)
t M-DAX button ······································································· (105)
y ZONE2 ON/OFF button ··························································· (95)
u ZONE2 SOURCE button ·························································· (95)
i INTERNER RADIO button ······················································· (48)
o DISPLAY button ····································································· (127)
Q0 STATUS button ··················································· (34, 48, 52, 127)
Q1 SOUND MODE button ···························································· (68)
Q2 PURE DIRECT button ······························································ (68)
