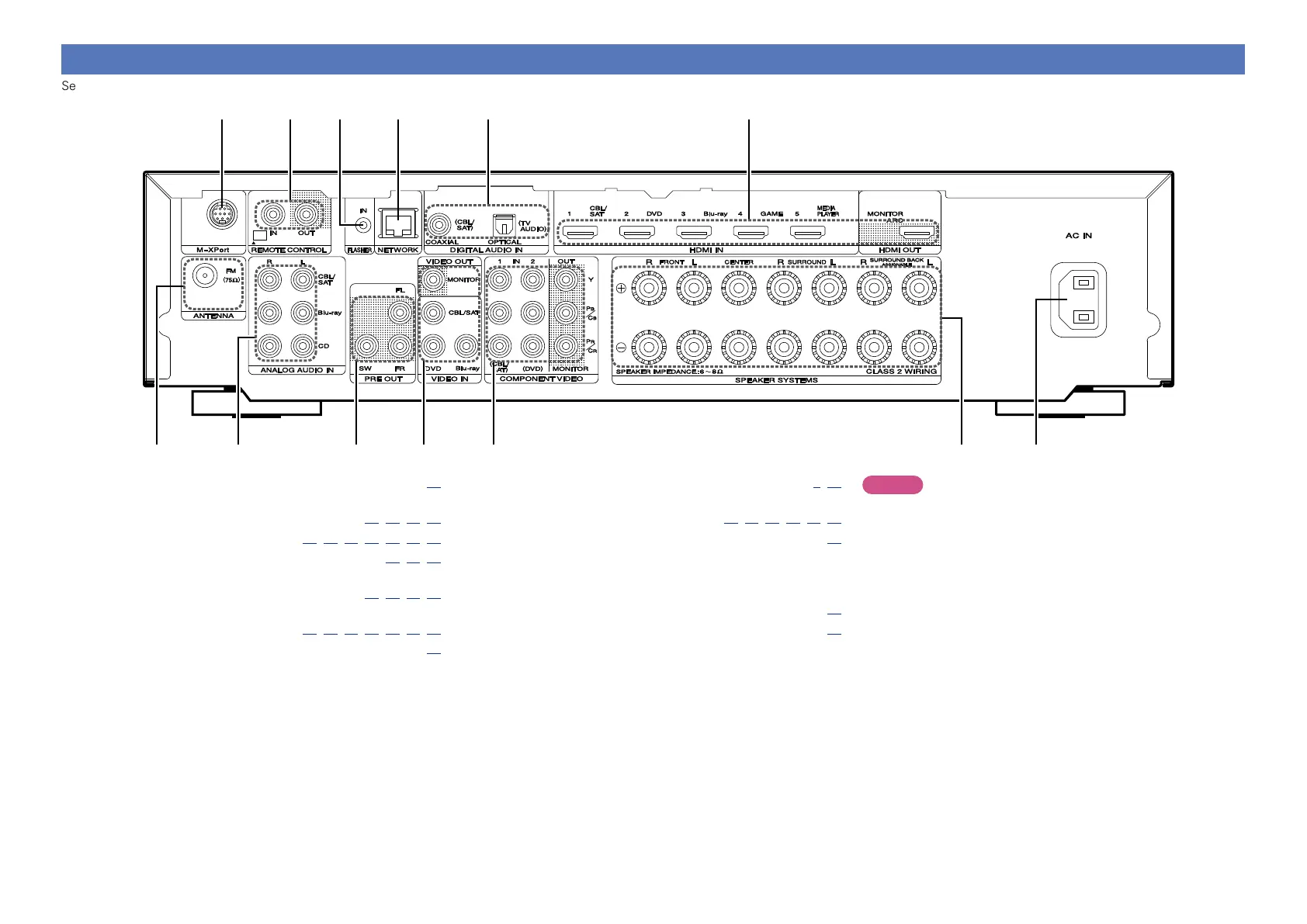

Rear panel
See the page indicated in parentheses ( ).
Q2
q w e r t y u
o
Q1 Q0Q3 i
q FM antenna terminal (ANTENNA) ········································· (20)
w Analog audio connectors
(ANALOG AUDIO IN) ············································· (14, 15, 16, 19)
e PRE OUT connectors ··························· (77, 78, 79, 80, 81, 82, 83)
r Video connectors (VIDEO IN / VIDEO OUT)·············· (13, 14, 15)
t Component video connectors
(COMPONENT VIDEO) ·········································· (14, 15, 16, 17)
y Speaker terminals (SPEAKER SYSTEMS)
······························································ (77, 78, 79, 80, 81, 82, 83)
u AC inlet (AC IN) ········································································ (23)
i HDMI connectors ································································· (9, 10)
o Digital audio connectors
(DIGITAL AUDIO IN) ·································· (13, 14, 15, 16, 17, 19)
Q0 Network connector (NETWORK) ··········································· (22)
Q1 FLASHER IN jack
Used when using a control BOX or other such control devices to
control this unit.
Q2 REMOTE CONTROL connectors ············································· (87)
Q3 M-XPort connector ·································································· (21)
NOTE
Do not touch the inner pins of the connectors on the rear panel.
Electrostatic discharge may cause permanent damage to the unit.
