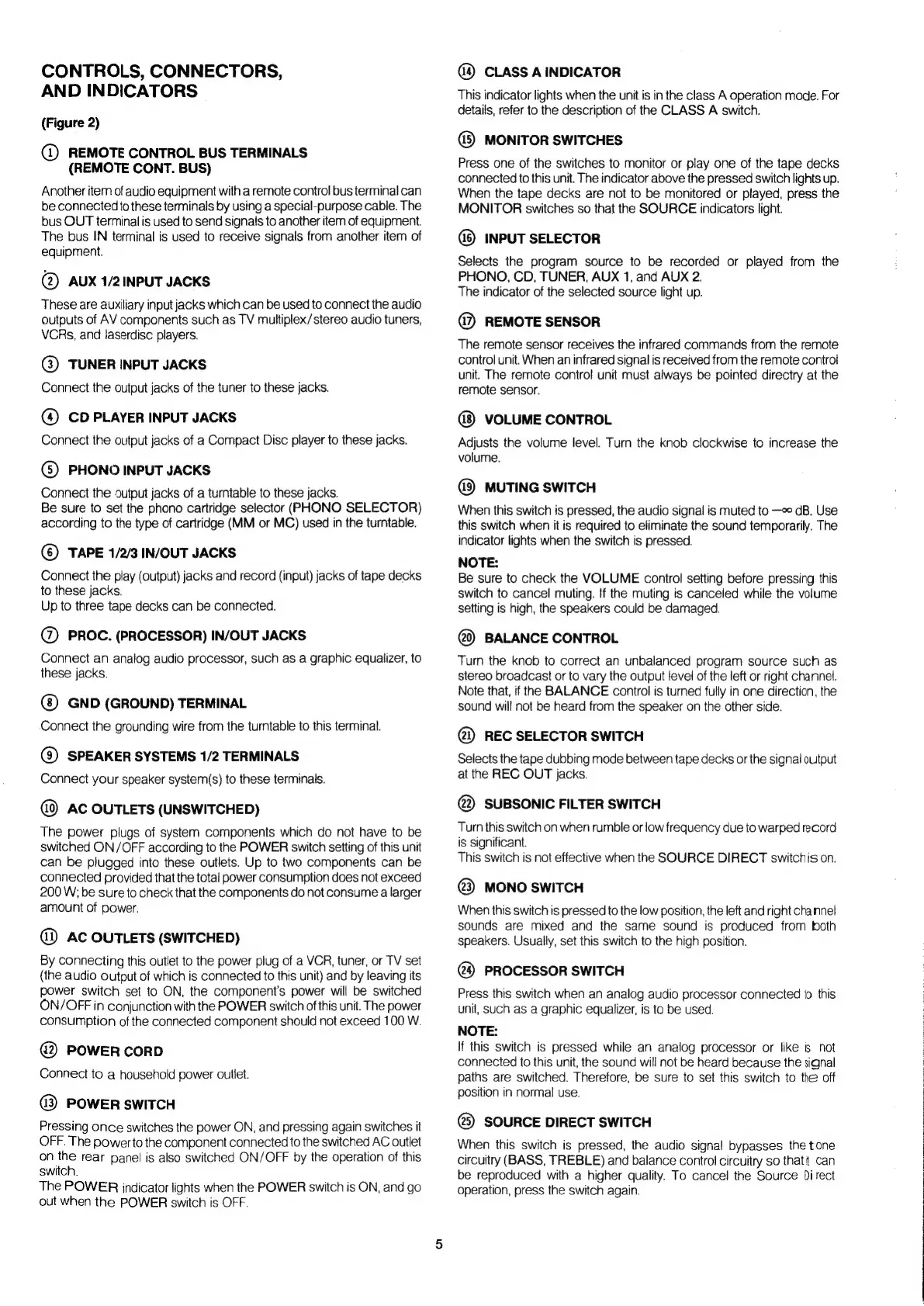

CONTROLS,
CONNECTORS,
AND
INDICATORS
(Figure
2)
@)
REMOTE
CONTROL
BUS
TERMINALS
(REMOTE
CONT.
BUS)
Another
itern
of
audio
equipment
with
a
remote
control
bus
terminal
can
be
connected
to
these
terminals
by
using
a
special-purpose
cable.
The
bus
OUT
terminal
is
used
to
send
signals
to
another
item
of
equipment.
The
bus
IN
terminal
is
used
to
receive
signals
from
another
item
of
equipment.
(2)
AUX
1/2
INPUT
JACKS
These
are
auxiliary
input
jacks
which
can
be
used
to
connect
the
audio
outputs
of
AV
components
such
as
TV
multiplex/stereo
audio
tuners,
VCRs,
and
laserdisc
players.
(3)
TUNER
INPUT
JACKS
Connect
the
output
jacks
of
the
tuner
to
these
jacks.
®
CD
PLAYER
INPUT
JACKS
Connect
the
output
jacks
of
a
Compact
Disc
player
to
these
jacks.
G)
PHONO
INPUT
JACKS
Connect
the
output
jacks
of
a
turntable
to
these
jacks.
Be
sure
to
set
the
phono
cartridge
selector
(PHONO
SELECTOR)
according
to
the
type
of
cartridge
(MM
or
MC)
used
in
the
turntable.
©)
TAPE
1/2/3
IN/OUT
JACKS
Connect
the
play
(output)
jacks
and
record
(input)
jacks
of
tape
decks
to
these
jacks.
Up
to
three
tape
decks
can
be
connected.
@
PROC.
(PROCESSOR)
IN/OUT
JACKS
Connect
an
analog
audio
processor,
such
as
a
graphic
equalizer,
to
these
jacks.
GND
(GROUND)
TERMINAL
Connect
the
grounding
wire
from
the
turntable
to
this
terminal.
@®
SPEAKER
SYSTEMS
1/2
TERMINALS
Connect
your
speaker
system(s)
to
these
terminalis.
AC
OUTLETS
(UNSWITCHED)
The
power
plugs
of
system
components
which
do
not
have
to
be
switched
ON/OFF
according
to
the
POWER
switch
setting
of
this
unit
can
be
plugged
into
these
outlets.
Up
to
two
components
can
be
connected
provided
that
the
total
power
consumption
does
not
exceed
200
W;
be
sure
to
check
that
the
components
do
not
consume
a
larger
amount
of
power.
@)
AC
OUTLETS
(SWITCHED)
By
connecting
this
outlet
to
the
power
plug
of
a
VCR,
tuner,
or
TV
set
(the
audio
Output
of
which
is
connected
to
this
unit)
and
by
leaving
its
power
switch
set
to
ON,
the
component's
power
will
be
switched
ON/OFF
in
conjunction
with
the
POWER
switch
of
this
unit.
The
power
consumption
of
the
connected
component
should
not
exceed
100
W.
@
POWER
CORD
Connect
to
a
household
power
outlet.
@)
POWER
SWITCH
Pressing
once
switches
the
power
ON,
and
pressing
again
switches
it
OFF.
The
power
to
the
component
connected
to
the
switched
AC
outlet
on
the
rear
panel
is
also
switched
ON/OFF
by
the
operation
of
this
switch.
The
POWER
indicator
lights
when
the
POWER
switch
is
ON,
and
go
out
when
the
POWER
switch
is
OFF.
@
CLASS
A
INDICATOR
This
indicator
lights
when
the
unit
is
in
the
class
A
operation
mode.
For
details,
refer
to
the
description
of
the
CLASS
A
switch.
®
MONITOR
SWITCHES
Press
one
of
the
switches
to
monitor
or
play
one
of
the
tape
decks
connected
to
this
unit.
The
indicator
above
the
pressed
switch
lights
up.
When
the
tape
decks
are
not
to
be
monitored
or
played,
press
the
MONITOR
switches
so
that
the
SOURCE
indicators
light.
INPUT
SELECTOR
Selects
the
program
source
to
be
recorded
or
played
from
the
PHONO,
CD,
TUNER,
AUX
1,
and
AUX
2.
The
indicator
of
the
selected
source
light
up.
@)
REMOTE
SENSOR
The
remote
sensor
receives
the
infrared
commands
from
the
remote
control
unit.
When
an
infrared
signal
is
received
from
the
remote
control
unit.
The
remote
contro!
unit
must
always
be
pointed
directry
at
the
remote
sensor.
VOLUME
CONTROL
Adjusts
the
volume
level.
Turn
the
knob
clockwise
to
increase
the
volume.
MUTING
SWITCH
When
this
switch
is
pressed,
the
audio
signal
is
muted
to
—e°
dB.
Use
this
switch
when
it
is
required
to
eliminate
the
sound
temporarily.
The
indicator
lights
when
the
switch
is
pressed.
NOTE:
Be
sure
to
check
the
VOLUME
control
setting
before
pressing
this
switch
to
cancel
muting.
!f
the
muting
is
canceled
while
the
volume
setting
is
high,
the
speakers
could
be
damaged.
BALANCE
CONTROL
Turn
the
knob
to
correct
an
unbalanced
program
source
such
as
stereo
broadcast
or
to
vary
the
output
level
of
the
left
or
right
channel.
Note
that,
if
the
BALANCE
control
is
turned
fully
in
one
direction,
the
sound
will
not
be
heard
from
the
speaker
on
the
other
side.
@i)
REC
SELECTOR
SWITCH
Selects
the
tape
dubbing
mode
between
tape
decks
or
the
signal
output
at
the
REC
OUT
jacks.
@
SUBSONIC
FILTER
SWITCH
Turn
this
switch
on
when
rumble
or
low
frequency
due
to
warped
record
iS
significant.
This
switch
is
not
effective
when
the
SOURCE
DIRECT
switchis
on.
@3)
MONO
SWITCH
When
this
switch
is
pressed
to
the
low
position,
the
left
and
right
channel
sounds
are
mixed
and
the
same
sound
is
produced
from
both
speakers.
Usually,
set
this
switch
to
the
high
position.
PROCESSOR
SWITCH
Press
this
switch
when
an
analog
audio
processor
connected
10
this
unit,
such
as
a
graphic
equalizer,
is
to
be
used.
NOTE:
If
this
switch
is
pressed
while
an
analog
processor
or
like
is
not
connected
to
this
unit,
the
sound
will
not
be
heard
because
the
signal
paths
are
switched.
Therefore,
be
sure
to
set
this
switch
to
the
off
position
in
normal
use.
@)
SOURCE
DIRECT
SWITCH
When
this
switch
is
pressed,
the
audio
signal
bypasses
the
tone
circuitry
(BASS,
TREBLE)
and
balance
control
circuitry
so
thatt
can
be
reproduced
with
a
higher
quality.
To
cancel
the
Source
Di
tect
operation,
press
the
switch
again.
