RMS Power output

(40 Hz – 20 kHz simultaneous drive of both channels)

8 Ω load

..............................................................40 W x 2

6 Ω load [F]

.........................................................47 W x 2

4 Ω load

..............................................................55 W x 2

DIN Power output

(40 Hz – 20 kHz simultaneous drive of both channels)

8 Ω load

..............................................................45 W x 2

4 Ω load

..............................................................60 W x 2

IHF Dynamic Power

(1 kHz simultaneous drive of both channels)

8Ω load

...............................................................55 W x 2

6 Ω load [F]

.........................................................67 W x 2

4Ω load

...............................................................80 W x 2

Total harmonic distortion

(40 Hz – 20 kHz simultaneous drive of both channels, 8 Ω load)

.........................................................................0.01 %

Output band width (8 Ω load, 0.06 %)

........................................................... 10 Hz – 30 kHz

Frequency response (CD, 1 W, 8 Ω load)

10 Hz – 50 kHz ........................................+0 dB, -1 dB

Dumping factor (8 Ω load, 40 Hz – 20 kHz)

......................100

Input sensitivity/Input impedance

PHONO (MM)

.............................................2.2 mV/47 kΩ

CD, LINE, TUNER, AUX/DVD, RECORDER

.............................................................200 mV/20 kΩ

Maximum allowable PHONO input level (1 kHz)

....................................................................... 110 mV

RIAA deviation (40 Hz – 20 kHz)

......................... ±0.5 dB

S/N (IHF-A, 1 W, 8 Ω load)

PHONO (MM) : 5 mV input

..................................... 83 dB

CD, LINE, TUNER, AUX/DVD, RECORDER :

500 mV input ................................................... 100 dB

Tone control

Bass (100 Hz)

....................................................... ±10 dB

Treble (10 kHz)

...................................................... ±10 dB

1. TECHNICAL SPECIFICATIONS

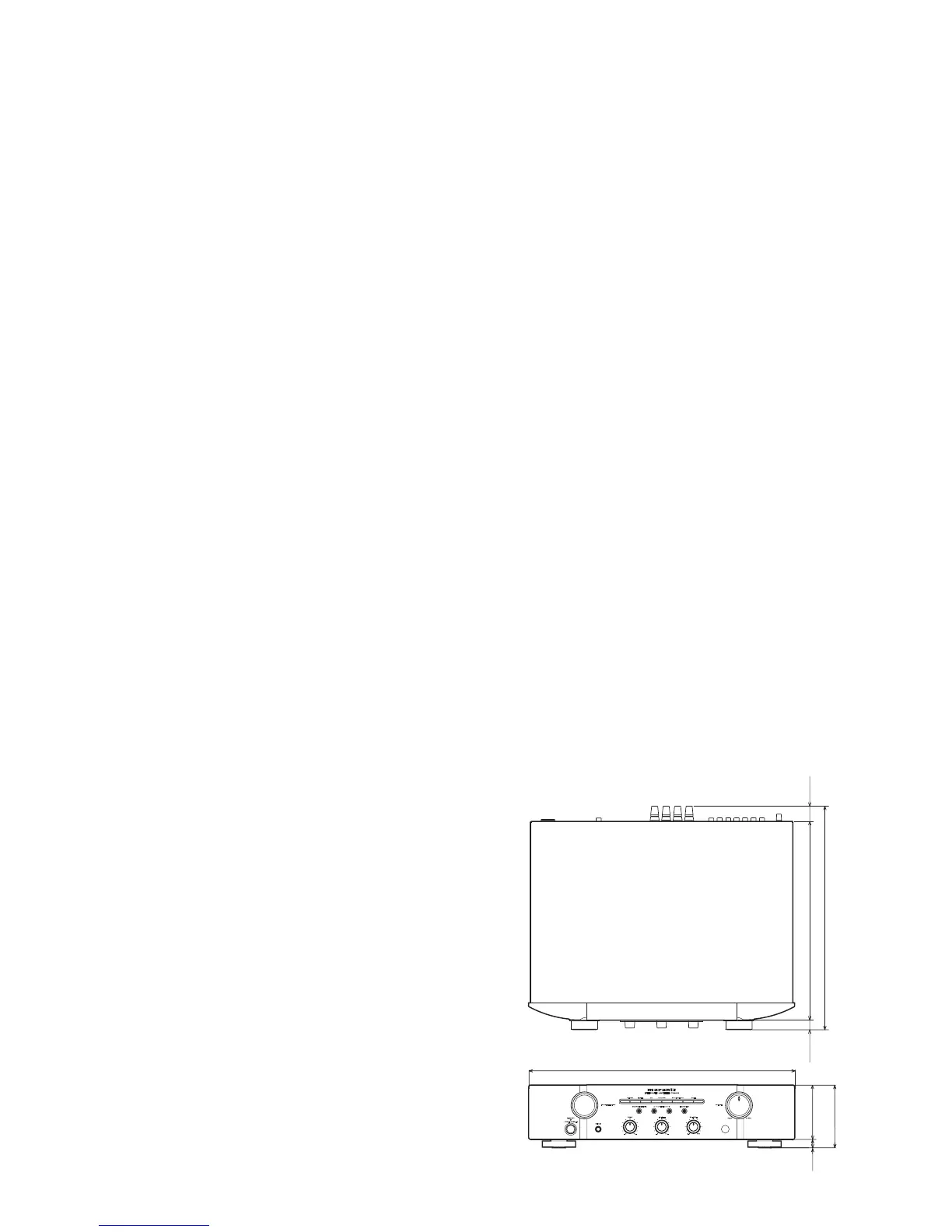

DIMENSIONS (unit : mm)

Power requirement

[F] .....................................................AC 100 V, 50/60 Hz

[N] .....................................................AC 230 V, 50/60 Hz

[U] ..........................................................AC 120 V, 60 Hz

Power consumption

EN60065/J60065

....................................................110 W

4Ω, 55W x 2 output

.................................................250 W

Standby power consumption [F]

....................................0.4 W

Accessories

Remote controller (RC003PM)........................................1

AAA batteries

..................................................................2

Detachable AC power cable

............................................1

Maximum outer dimensions (Amplifier)

Width

....................................................................440 mm

Height

..............................................................104.5 mm

Depth

................................................................369.5 mm

Weight (Amplifier)

................................................... 6.7 kg

BASIC

CONNECTIONS

BASIC

OPERATION

ADVANCED

CONNECTION

REMOTE CONTROLLER

OPERATION

TROUBLESHOOTING

NAMES AND

FUNCTIONS

OTHERS

ENGLISH

OTHERS

TECHNICAL SPECIFICATIONS

RMS Power output (40 Hz – 20 kHz simultaneous drive of both channels)

..................................................................................................................................40W x 2 (87 load)

..................................................................................................................................55W x 2 (47 load)

DIN Power Output (40 Hz – 20 kHz simultaneous drive of both channels)

..................................................................................................................................45W x 2 (87 load)

..................................................................................................................................60W x 2 (47 load)

IHF Dynamic Power (1 kHz simultaneous drive of both channels)

..................................................................................................................................55W x 2 (87 load)

..................................................................................................................................80W x 2 (47 load)

Total harmonic distortion (40Hz – 20kHz simultaneous drive of both channels, 87 load) ....................0.01%

Output band width (87 load, 0.06%) ....................................................................................... 10Hz – 30kHz

Frequency response (CD, 1W, 87 load) .............................................................. 10Hz – 50kHz +0dB, -1dB

Dumping factor (87 load, 40Hz – 20kHz) .................................................................................................100

Input sensitivity/Input impedance

PHONO (MM) .......................................................................................................................2.2mV/47k7

CD, LINE, TUNER, AUX/DVD, RECORDER .....................................................................200mV/20k7

Maximum allowable PHONO input level (1kHz)

MM ................................................................................................................................................110mV

RIAA deviation (40Hz ~ 20kHz) ................................................................................................... ±0.5dB

S/N (IHF-A, 1W, 87 load)

PHONO (MM) ...............................................................................................................83dB (5mV input)

CD, LINE, TUNER, AUX/DVD, RECORDER .........................................................100dB (500mV input)

Tone control

Bass (100Hz) ................................................................................................................................ ±10dB

Treble (10kHz)............................................................................................................................... ±10dB

Power requirement ............................................................................................................ AC 230V 50/60Hz

Power consumption

(EN60065) .......................................................................................................................................110W

(47, 55W x 2 output) ...................................................................................................................... 250W

Accessories

Remote controller ...................................................................................................................................1

AAA batteries .........................................................................................................................................2

Detachable AC power cable ...................................................................................................................1

Maximum outer dimensions (Amplifier)

Width ............................................................................................................................................440mm

Height ........................................................................................................................................104.5mm

Depth .........................................................................................................................................369.5mm

Weight (Amplifier) .................................................................................................................................. 6.7kg

PHONES

MIN

MAX

LOUDNESS

VOLUME

MUTE1AUX/DVD 2

RECORDER

CDPHONO TUNER

INPUT SELECTOR

INTEGRATED AMPLIFIER PM5003

L R

BASS
