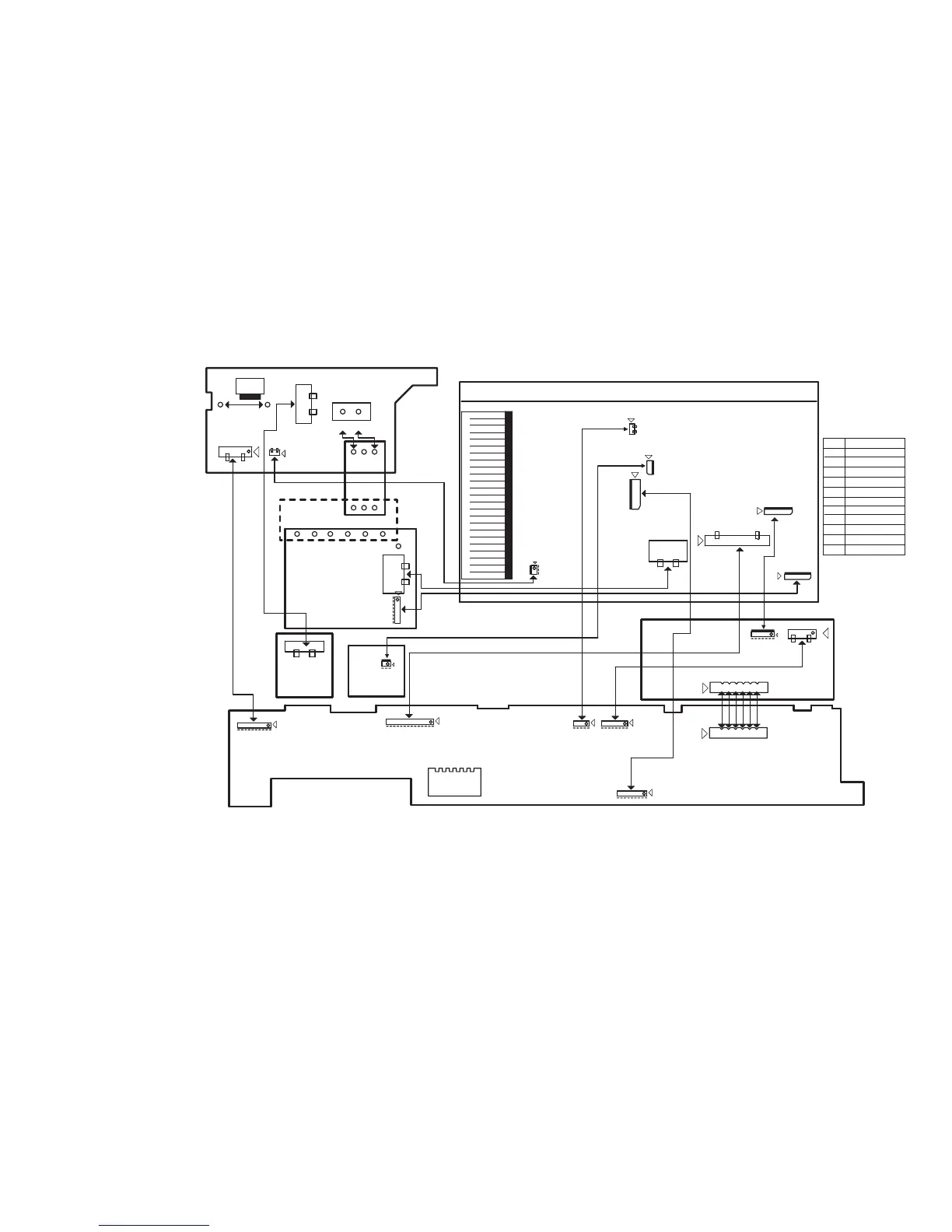

Marantz PM5003 - Wiring Diagram

5 6
CN92(4P,2.5
CN95(11P,2.0
CN90,3P,3.96
CN33,4P,2.5
CN12(4P,2.5
CN55,2P,2.5
CN35,2P,2.0
CUP12099Z
CN96,3P,3.96
(BLACK)
TW91,2P,3.96
CN93,7P,2.0
CUP12100Z-2
CUP12100Z-7
TRANS
BN90,3P,3.96
BN92,4P,2.5
JW93
BN96,3P,3.96
CUP12100Z-4
CUP12100Z-5
CUP12100Z-6
BN55,2P,2.0
BN12,4P,2.0
CN56,4P,2.0
CB52,7PIN HEAD
BN33,4P,2.5
BN52,7PIN HEAD
BN56,4P,2.0BN35,2P,2.0
BN95,11P,2.0
BN51,UPDATE
BN93,7P,2.0
CUP12100Z-3
CUP12100Z-1
BN12
BN33
BN35
BN55
BN56
BN90
BN92
BN93
BN95
BN96
JW94
JW95
JW94
JW96
CWZPM48BN33
CWZPM5003BN33
CWZPM5003BN96
CWB2B902550EN
CWB2C902450BM
CWB2B904230EN
CWZPM5003BN90
CWZPM4001BN92
CWB2B07150EN
CWB2B911320EN
CWEE212140VV
CWEE202140VV
JW95 (RED/BLUE)
CN97,2P,2.0
BN97,2P,2.0
TRANSF.1 PWB
U-PRO & TONE PWB
POWER SW
PWB
HEADPHONE
PWB
MASTER VOLUME PWB
SUB TRANSF. PWB
INPUT & AMPLIFIER PWB
4. WIRING DIAGRAM
