Marantz PM7001 series User Manual

13
Press the POWER ON/OFF button, and turn on the unit.

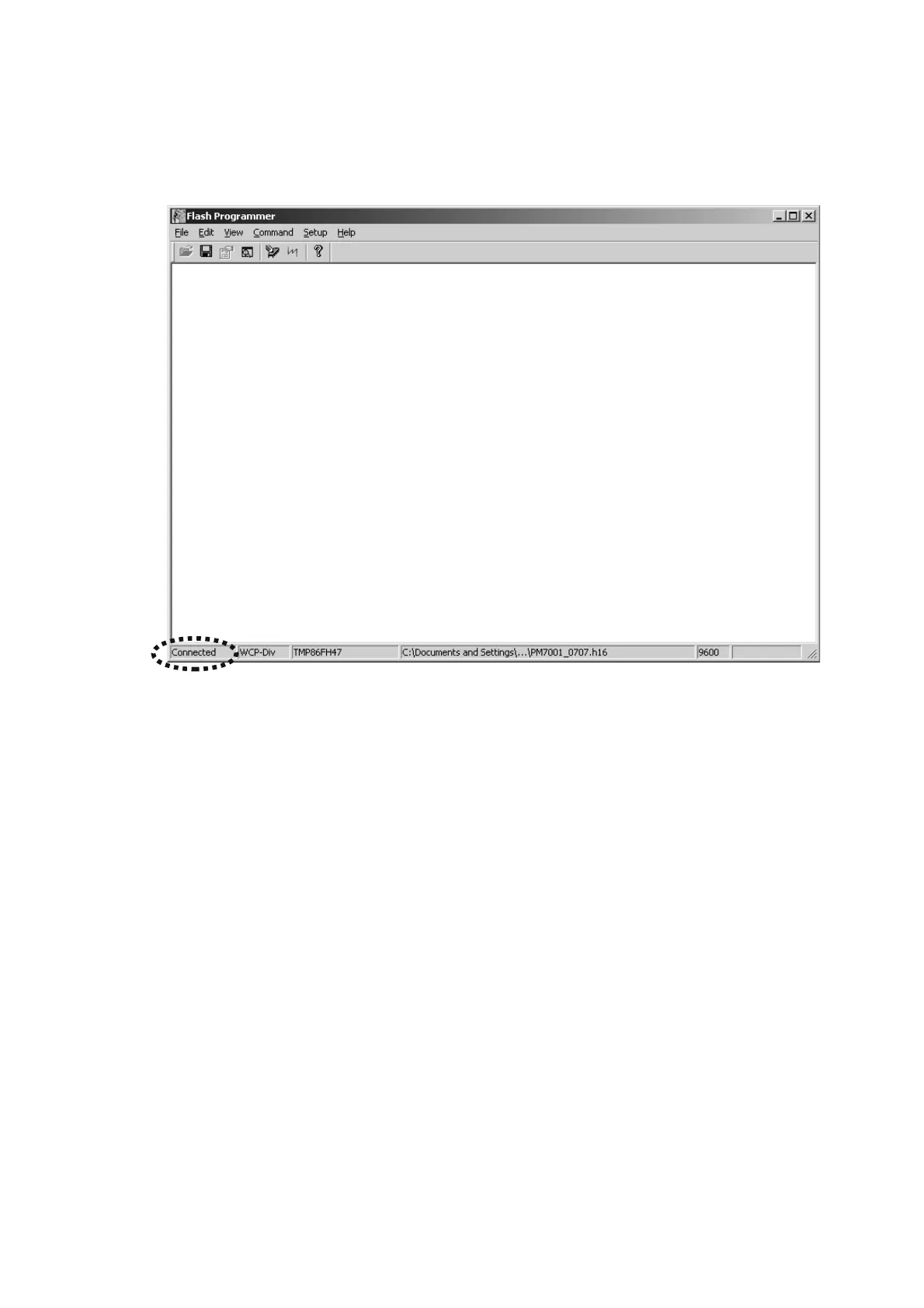

Status indication at lower left in Flash Programming window
is changed to "Connected" from "Connecting".
When it did not changed, check the connection of FPC or
RS-232C cable.
本機の電源スイッチをオンにします。
Flash Programming ウィンドウの左下のステータスが
Connecting から Connected に変わります。もし Connected
に変わらないときは接続を確認してください。

Marantz PM7001 series Specifications

General

Total Harmonic Distortion	0.02%
Input Sensitivity (Line)	200 mV / 20 kOhm
Input Sensitivity (MM)	2.5 mV / 47 kOhm
Weight	10.5 kg
Phono Input	Yes
Damping Factor	100
Signal to Noise Ratio	85 dB (MM)
Dimensions	440 x 126 x 366 mm
Speaker Outputs	A/B
Power Output (8 ohms)	70 W (20 Hz - 20 kHz, 0.03 % THD)
