POWER switch and STANDBY indicator
Press the button to turn the power ON, and press
again to turn it OFF. If the POWER switch is in the
ON position, the power of this unit can be turned
ON/OFF by pressing the POWER button on the
remote control unit.
When this unit is in the standby mode with the
POWER switch set to the ON position, pressing
one of the FUNCTION SELECTOR buttons also
allows to turn the power on.
The STANDBY indicator lights up when this unit is
the standby mode (power OFF) by the remote
control unit.
w
SURROUND MODE Selector knob
When this knob is turned, the surround mode is
switched sequentially.
Note:
• Available surround mode is depending on the
input signal.
e
CLEAR button
Press this button to cancel the station-memory
setting mode or preset scan tuning.
r
MEMORY button
Press this button to enter the tuner preset memory
numbers or station names.

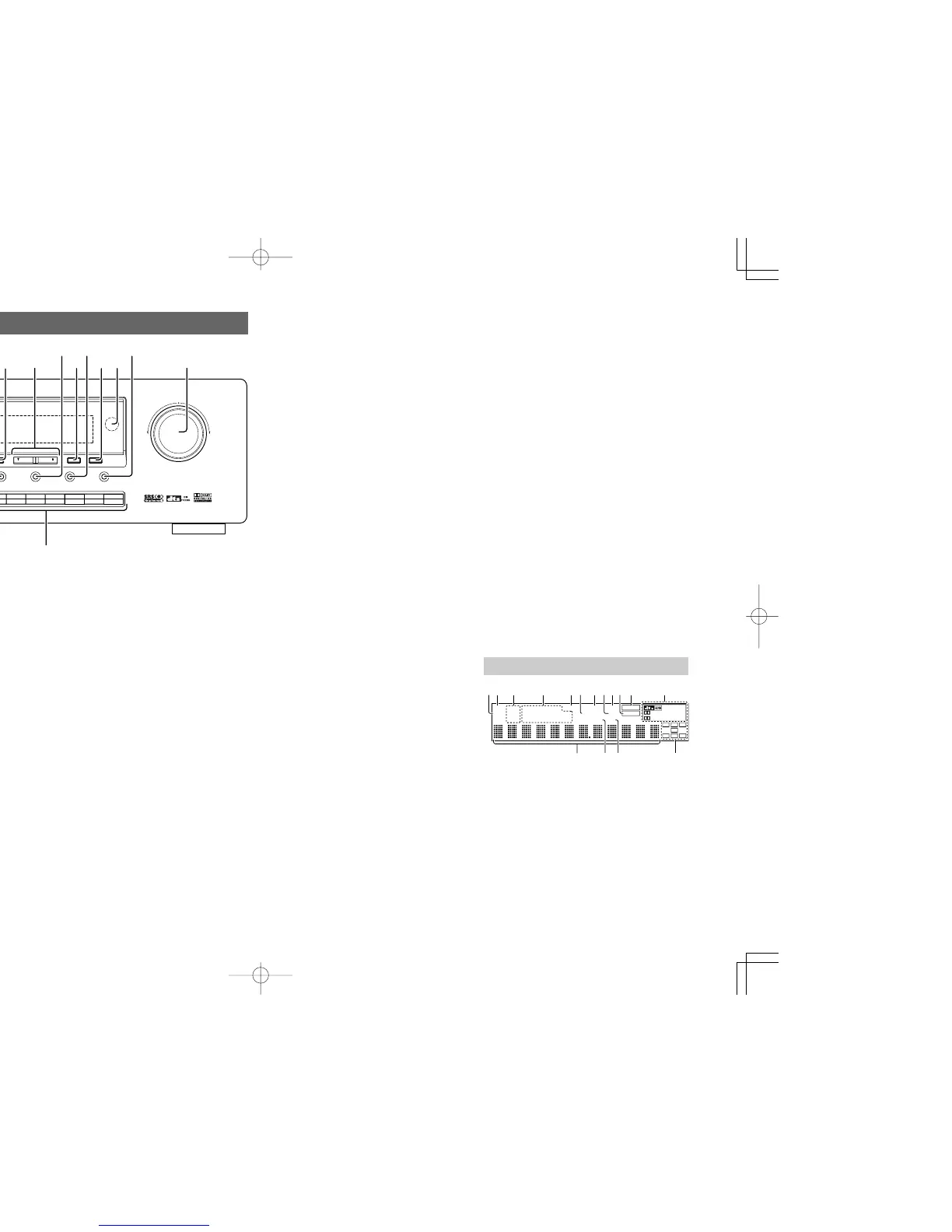

FRONT PANEL
t
TUNING UP / DOWN buttons
Press thses buttons to change the frequency or
the preset number.
y
F/P (FREQUENCY / PRESET) button
During reception of AM or FM, you can change the
function of the UP/DOWN buttons for scanning
frequencies or selecting preset stations by
pressing this button.
u
MODE button
Press this button to select the auto stereo mode or
mono mode when the FM band is selected.
The “AUTO” indicator lights in the auto stereo
mode.
i
Infrared receiving (IR) sensor window
This window receives infrared signals for the
remote control unit.
o
VOLUME control knob
Adjusts the overall sound level. Turning the
control clockwise increases the sound level.
!0
INPUT FUNCTION SELECTOR buttons
(AUDIO/ VIDEO)
These buttons are used to select the input
sources.
The video function selector, such as TV, DVD,
VCR1 and DSS/VCR2, selects video and audio
simultaneously.
Audio function sources such as CD, TAPE, CDR/
MD, TUNER, and 6.1CH-IN may be selected in
conjunction with a Video source.
This feature (Sound Injection) combines a sound
from one source with a picture from another.
Choose the video source first, and then choose a
different audio source to activate this function.
Press TUNER button to switch the between FM or
AM.
!1
6.1CH IN button
Press this button to select the output of an external
multi channel decoder.
Press this button again to return the preivious
function.
!2
PHONES jack for stereo headphones
This jack may be used to listen to the SR4400’s
output through a pair of headphones. Be certain
that the headphones have a standard 1 / 4" stereo
phone plug. Note that the speakers will
automatically be turned off when the headphone
jack is in use.
Notes:
• When using headphones, the surround mode will
automatically change to STEREO.
• The surround mode returns to the previous setting
as soon as the plug is removed from the jack.
!3
A/D (Analog/Digital) SELECTOR button
This is used to select between the analog and
digital inputs.
Note:
• This button is not used for an input source that is
not set to a digital input in the system setup menu.
!4
HT-EQ button
Used to turn on or off HT (Home Theater)-EQ
mode when the surround mode is set as AUTO,
DOLBY, DTS or STEREO.
This mode compensates for the audio portion of a
movie sounding “bright”. When this button is
pressed, “EQ” indicator lights up.
!5
S- (Source) DIRECT button
When this button is pressed, the tone control
circuitry is bypassed as well as Bass Management.
Notes:
• The surround mode is automatically switched to
AUTO when the source direct function is turned
on.
• S-DIRECT is turned off when the other surround
mode is selected with the SURROUND mode
selector knob or the surround mode buttons of the
remote controller.
• Additionally, Speaker Configurations are fixed
automatically as follow.
(Front SPKR = Large, Center SPKR = Large,
Surround SPKR = Large, Sub woofer = On)
!6
DISPLAY button
When this button is pressed once, the display is
dimmed.
When this button is pressed twice, the display is
turned off and “DISP” indicator lights up.
Press this button again to turn the display ON
again.
!7
MUTE button
Press this button to mute the output to the
speakers and headphones. Press it again to
return to the previous volume level.
FL DISPLAY
a
TEST tone indicator
This indicator blinks in generating the test tone in
speaker level setup.
s
DISP (Display Off) indicator
This indicator lights when the SR4400 is in the
display off condition.
