TUNER’s indicators
AUTO : This indicator illuminates when the
tuner’s Auto mode is in use.
ST(Stereo) : This indicator illuminates when an
FM station is being tuned in stereo
condition.
TUNED : This indicator illuminates when a
station is being received with
sufficient signal strength to provide
acceptable listening quality.
f
INPUT SOURCE indicators
These indicators show the current input source.
g
6.1 CHANNEL DIRECT IN indicator
This indicator lights up when the 6.1CH-IN has
been selected as a input source.
h
AUTO.SURR (Auto Surround mode)
indicator.
This indicator illuminates to show that the AUTO
SURROUND mode is in use.
j
DIRECT (Soruce direct) indicator
This indicator lights when the SR4400 is in the
SOURCE DIRECT mode.
k
EQ mode indicator
This indicator lights when the HT-EQ function is
active.
l
SLEEP timer indicator
This indicator lights when the seep timer function
is in use.
¡0
DIGITAL Input Indicator
This indicator lights when digital input has been
selected.
¡1
ANALOG input indicator
This indicator lights when an analog input source
has been selected.
¡2
SIGNAL FORMAT indicators
2 DIGITAL, EX, 2 SURROUND, dts, ES, PCM
and 96kHz
When the selected input is a digital source, some
of these indicators will light to display the specific
type of signal in use.
¡3
ENCODED CHANNEL STATUS
indicators
These indicators display the channels that are
encoded with a digital
input signal. If the selected digital input signal is
Dolby Digital 5.1ch or DTS 5.1ch, “L”, “C”, “R”,
“SL”, “SR” and “LFE” will light up.If the digital input
signal is 2 channel PCM-audio, “L” and “R” will be
displayed.
If Dolby Digital 5.1ch signal with Surround EX flag
or DTS-ES signal comes in, “L”, “C”, “R”, “SL”, “S”,
“SR” and “LFE” will show.
¡4
ATT (Attenuation) indicator
This indicator lights when the attenuation function
is active.
¡5
NIGHT mode indicator
This indicator lights when the SR4400 is in the
Night mode, which reduces the dynamic range of
digital program material at low volume levels.
¡6
Main Information Display
This display shows messages relating to the
status, surround mode, tuner, volume level or
other aspects of unit’s operation.

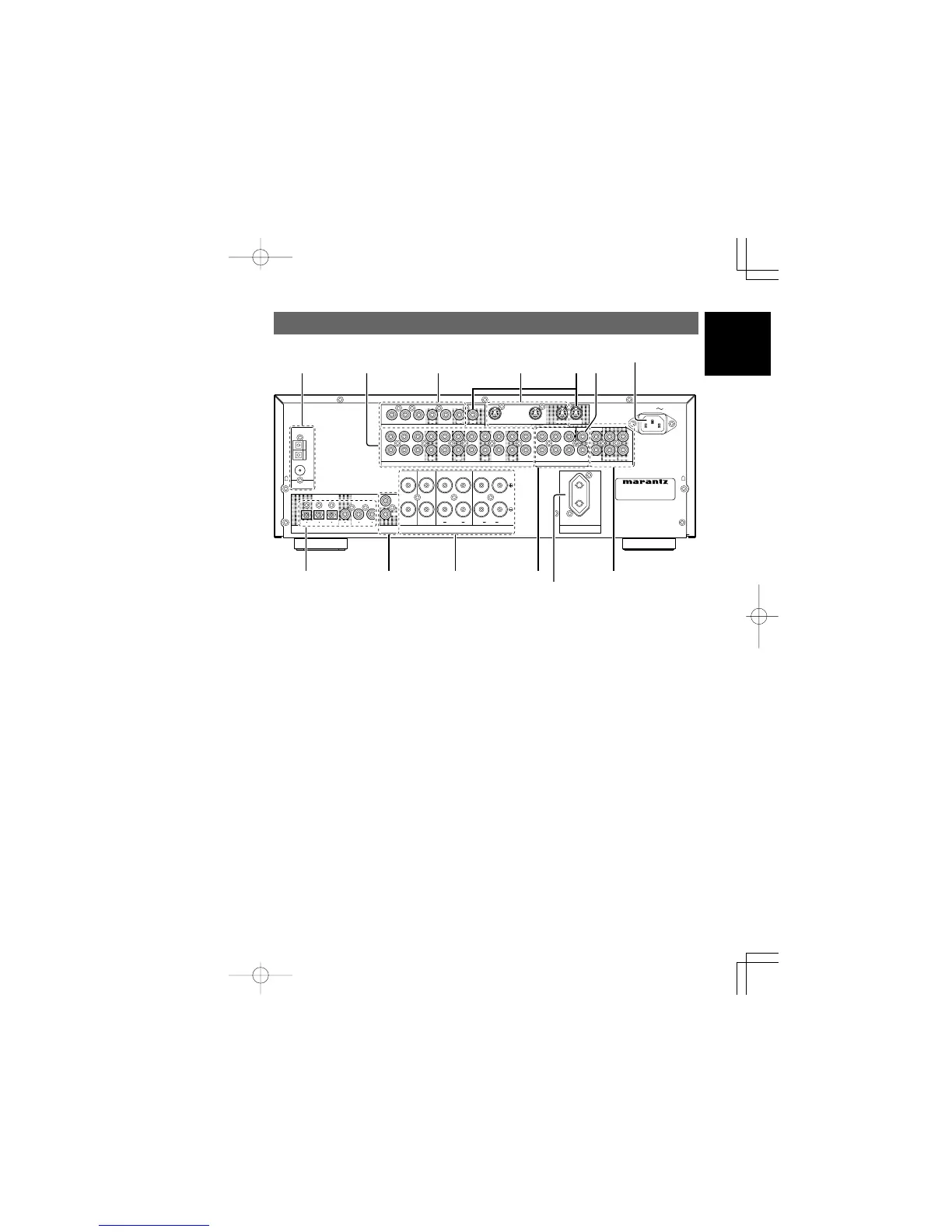

REAR PANEL
z
FM antenna terminal (75 ohms)
Connect an external FM antenna with a coaxial
cable, or a cable network FM source.
AM antenna and ground terminals
Connect the supplied AM loop antenna. Use the
terminals marked “AM” and “GND”. The supplied
AM loop antenna will provide good AM reception
in most areas. Position the loop antenna until you
hear the best
x
AUDIO IN/OUT (CD, TAPE, CDR/MD, TV,
DVD, VCR1, DSS/VCR2)
These are the analog audio inputs and outputs.
There are 7 audio inputs (4 of which are linked to
video inputs) and 4 audio outputs (2 of which are
linked to video outputs). The audio jacks are
nominally labeled for cassette tape decks,
compact disc players,DVD players and etc.... The
audio inputs and outputs require RCA-type
connectors.
c
VIDEO IN/OUT (TV, DVD, VCR1 and DSS/
VCR2)
There are 4 composite video inputs and 2
composite video outputs. Connect VCR, DVD
player, and other video components to the video
input.
The output channels can be used to be connected
to video recorder for making recordings.
v
S-VIDEO IN/OUT
There are 2 S-VIDEO inputs and one S-VIDEO
output.
Connect VCR, DVD player, and other video
components to the S-VIDEO input.
The output channel can be used to be connected
to video recorder for making recordings.
S-VIDEO sources can be viewed through the S-
VIDEO output, and composite sources can only
be viewed through the composite output.
b
MONITOR OUT
There are 2 monitor outputs and each one
includes both composite video and S-video
configurations.
