Marantz SR5013 - Video Pcb

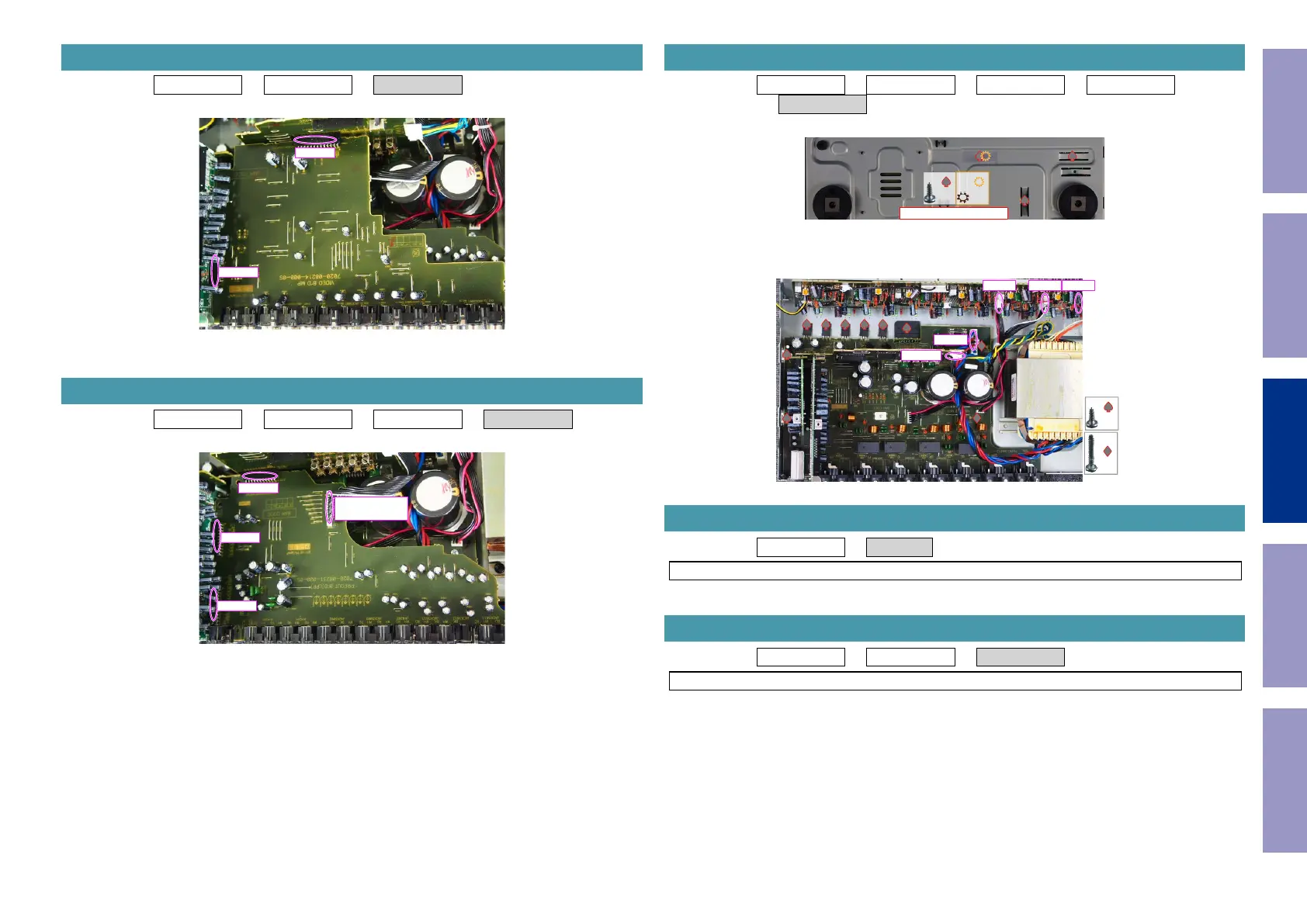

Proceeding : TOP COVER → DIGITAL PCB → VIDEO PCB
(1) Remove the connector.
Proceeding : TOP COVER → DIGITAL PCB → VIDEO PCB → PREOUT PCB
(1) Remove the connector.
4. VIDEO PCB
CN5003
CN5000
5. PREOUT PCB
CN5602
CN5601
CN4704
CN600
from AMP PCB
Proceeding : TOP COVER → DIGITAL PCB → VIDEO PCB → PREOUT PCB
→ PREOUT PCB
(1) Remove the screws.
(2) Remove the screws. Remove the connector.
Proceeding : TOP COVER → SMPS PCB
See "EXPLODED VIEW" for instructions on removing the SMPS PCB.
Proceeding : TOP COVER → DIGITAL PCB → TRANS
See "EXPLODED VIEW" for instructions on removing the transformer (TRANS).
6. MAIN PCB
View from the bottom
x3 x1
x8
x2
CP401
CP5003
CP403 CP405CP402
7. SMPS PCB
8. TRANS
