25
7-1HDMIPWB 用延長治具の接続
- 準備する物 -
998619000470S:
extensionwireforSR6004/5004HDMIPWB:2
絶縁シート--1 (D&M は供給しません )
1. HDMIPWB(CUP12207)をシャーシから取り外し、
裏返した状態にします。
HDMIPWB の下に PWB より大きい絶縁シートを敷いて
下さい。
7-1 Connection of HDMI PWB JIG
-Preparation-
998619000470S :
extension wire for SR6004/5004 HDMI PWB : 2 Set
Insulation sheet 1(Do not supply it)

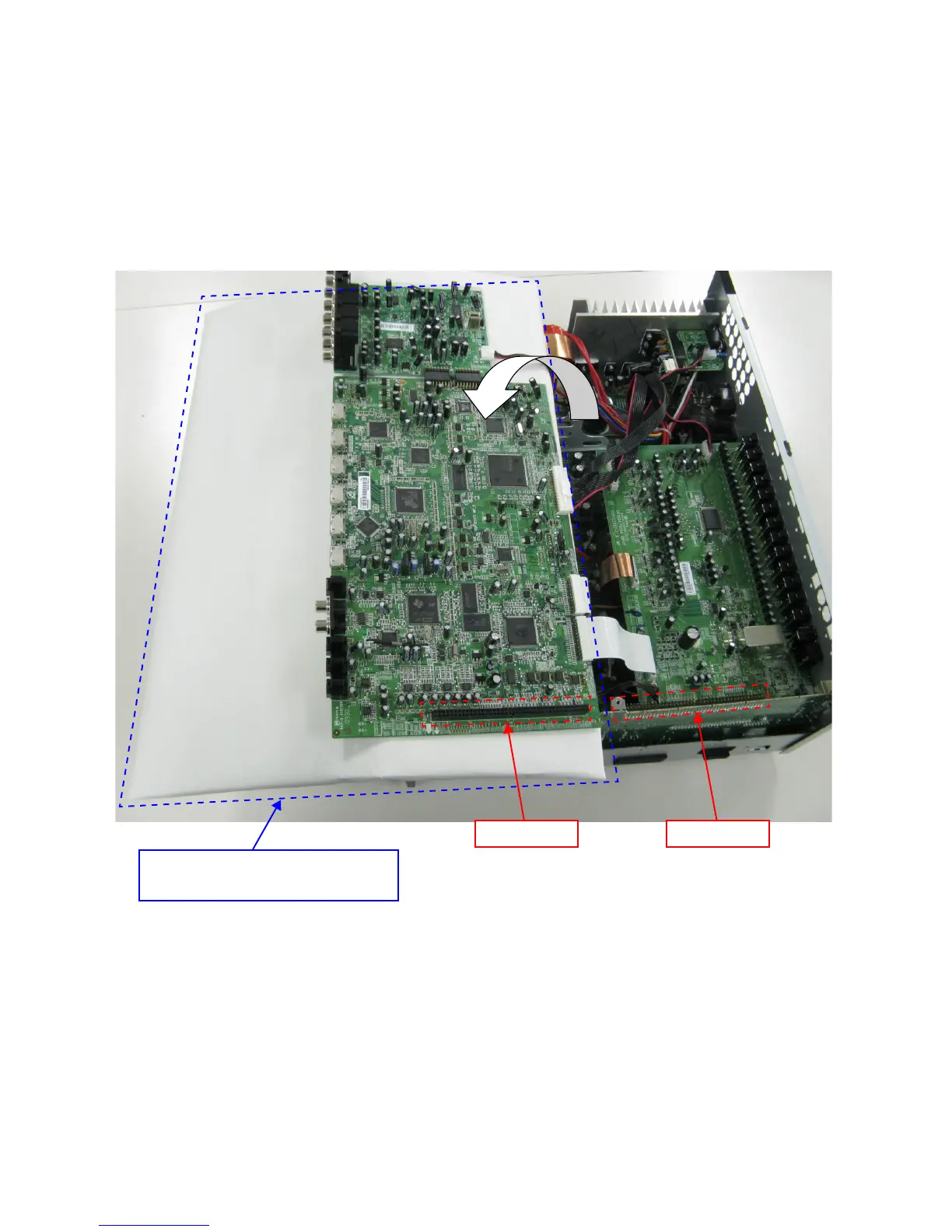

1. HDMI PWB (CUP12207) is detached from the chassis,
and it puts it into the state turned inside out.
Please pave an insulation sheet that is larger than HDMI
PWB under PWB.
HDMI PWB ↪ᑧ㐳ᴦౕߩធ⛯
Insulation sheets that is larger than PWB
PWB より大きい絶縁シート
CN84, CN85
BN85, BN84
