Main Display
HOME
REAR PANELFRONT PANEL WITH DOOR OPEN
4

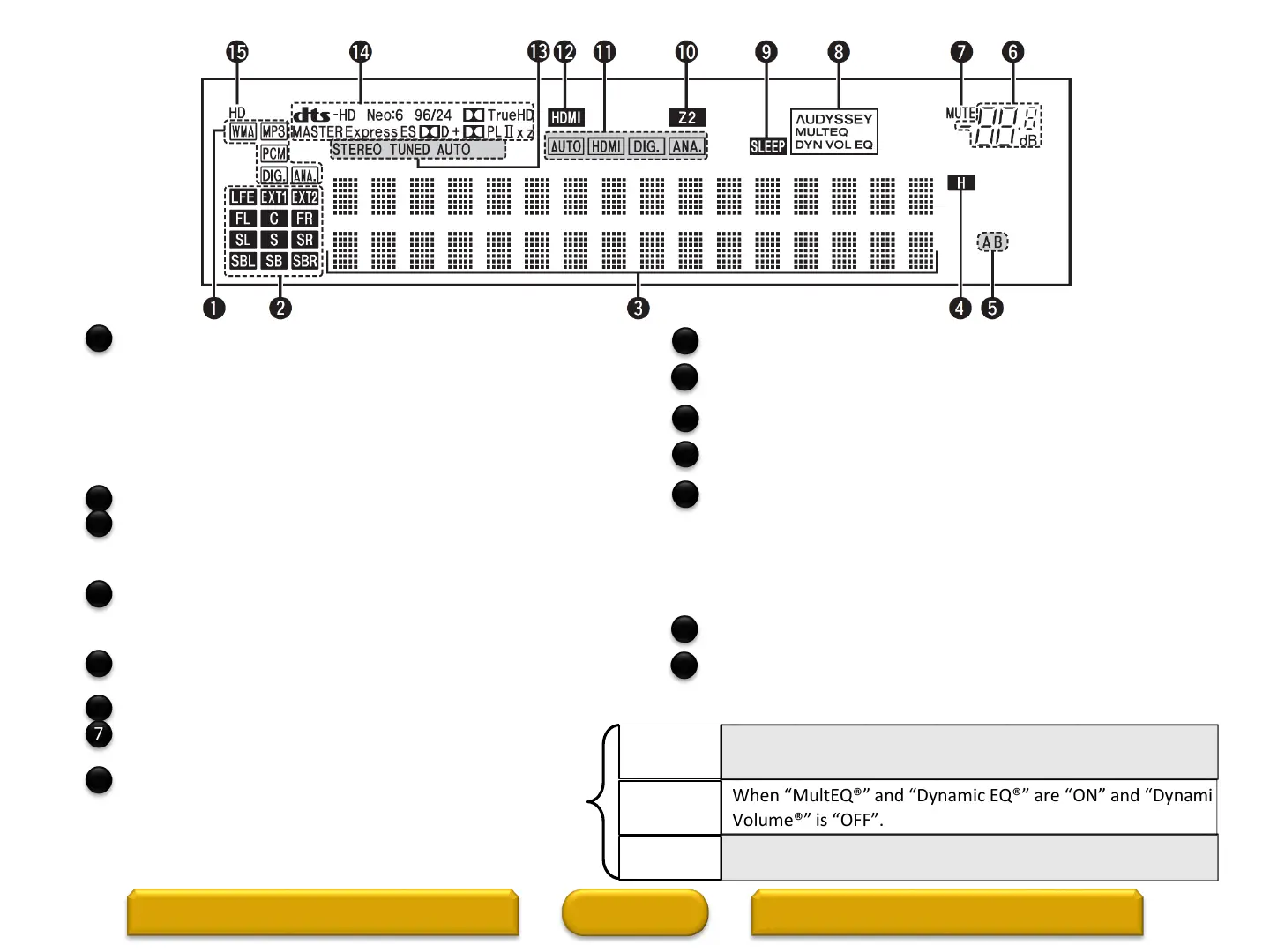

Input signal channel indicators
These light when digital signals are input.
When playing HD Audio sources, the “EXT1” indicator lights when a
signal from an extension channel (a channel other than the front,
center, surround, surround back or LFE channel) is input.
If there are two or more extension channels, the “EXT1” and “EXT2”
indicators light.
Input signal indicators
Information display
The input source name, surround mode, setting values and other.
information are displayed here.
Front height channel indicators
When audio is output from the front height channels, the “H”
indicator lights.
Front speaker indicator
This lights according to the setting of the front A and B speakers.
Master volume indicator
MUTE indicator
This lights when the mute mode is selected.
Audyssey® indicators
Light up as follows, depending on the setting of “MultEQ®” ,
“Dynamic EQ®” and “Dynamic Volume®”.
1
2
3
4
5
Sleep timer indicator
This lights when the sleep mode is selected.
ZONE2 indicator
This lights up when ZONE2 (separate room) power is turned on
Input mode indicators
Set the audio input modes for the different input sources.
HDMI indicator
This lights when playing using HDMI connections.
Tuner reception mode indicators
These light according to the reception conditions when the
input source is set to “TUNER”.
STEREO : In the FM mode, this lights up when receiving stereo
broadcasts.
TUNED : Lights up when the broadcast is properly tuned in.
AUTO : Lights up when in the auto tuning mode.
Decoder indicators
These light when the respective decoders are operating.
HD indicator
This light during HD Radio reception.
7
9
11
12
6
13
8
10
When “MultEQ®”, “Dynamic EQ®” and “Dynamic Volume®”
are “ON”.
When “MultEQ®” and “Dynamic EQ®” are “ON” and “Dynamic
Volume®” is “OFF”.
When “MultEQ®” is “ON” and “Dynamic EQ®” and “Dynamic
Volume®” are “OFF”.
AUDYSSEY
MULTEQ
DYN VOL EQ
AUDYSSEY
MULTEQ
DYN EQ
AUDYSSEY
MULTEQ
14
15
