Install

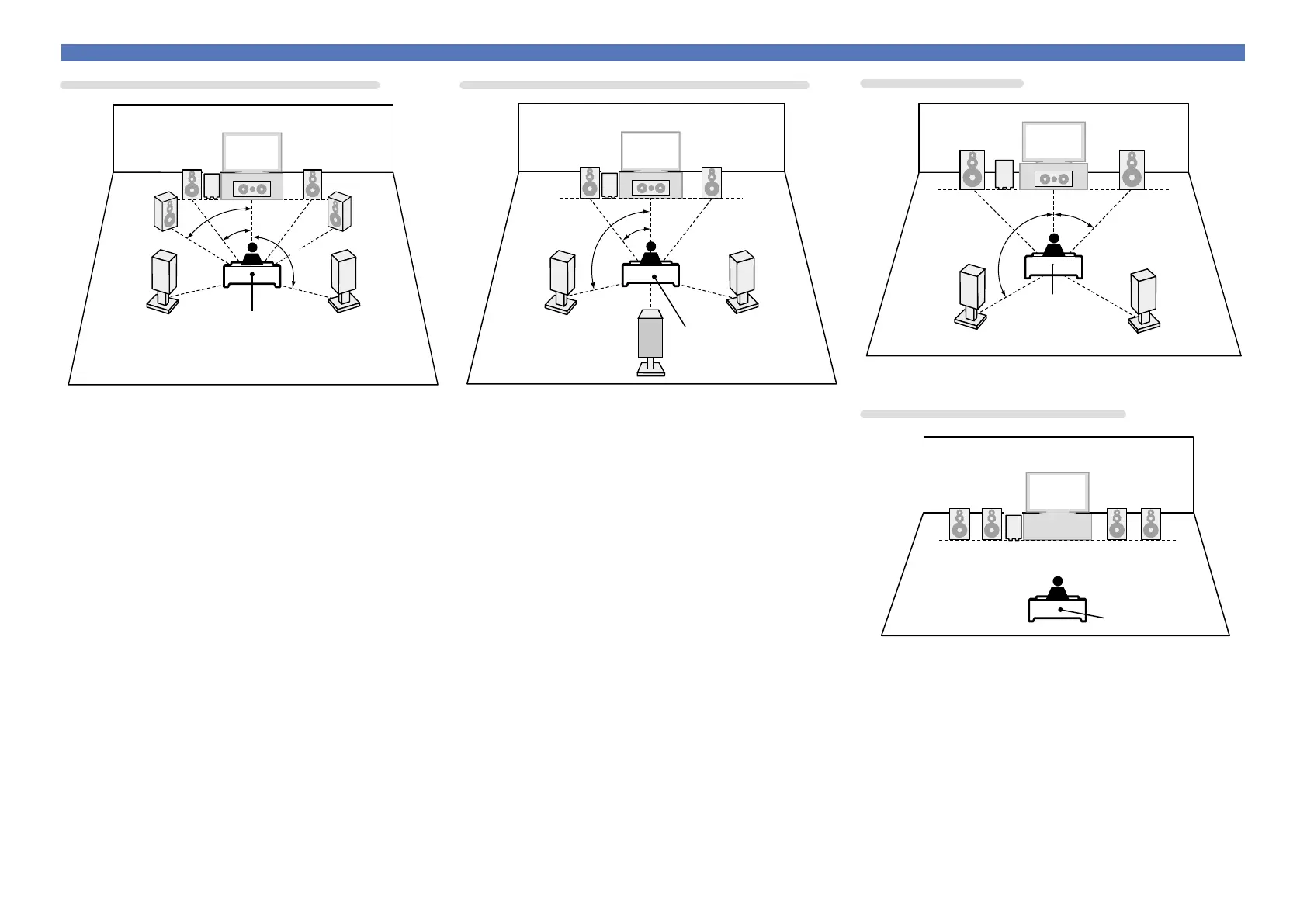

When 7.1ch (Front wide speaker) installed
FL
FR
SL
SR
FWL
FWR
SW
C
z1
z2
z3
Listening
position
z1 22˚ – 30˚ z2 55˚ – 60˚ z3 90˚ – 110˚
GSpeaker abbreviationsH
FL Front speaker (L) SL Surround speaker (L)
FR Front speaker (R) SR Surround speaker (R)
C Center speaker SB Surround back speaker
SW Subwoofer FWL Front wide speaker (L)
FWR Front wide speaker (R)
When 6.1ch (Surround back speaker) installed
FL FR
C
SB
SL
SR
SW
z1
z2
Listening position
z1 22˚ – 30˚ z2 90˚ – 110˚
When 5.1ch installed
FL FR
SW
C
SL
SR
z1
z2
Listening
position
z1 22˚ – 30˚ z2 120˚
When Front A/B speakers installed
FR(A) FR(B)
SW
FL(B) FL(A)
Listening position
