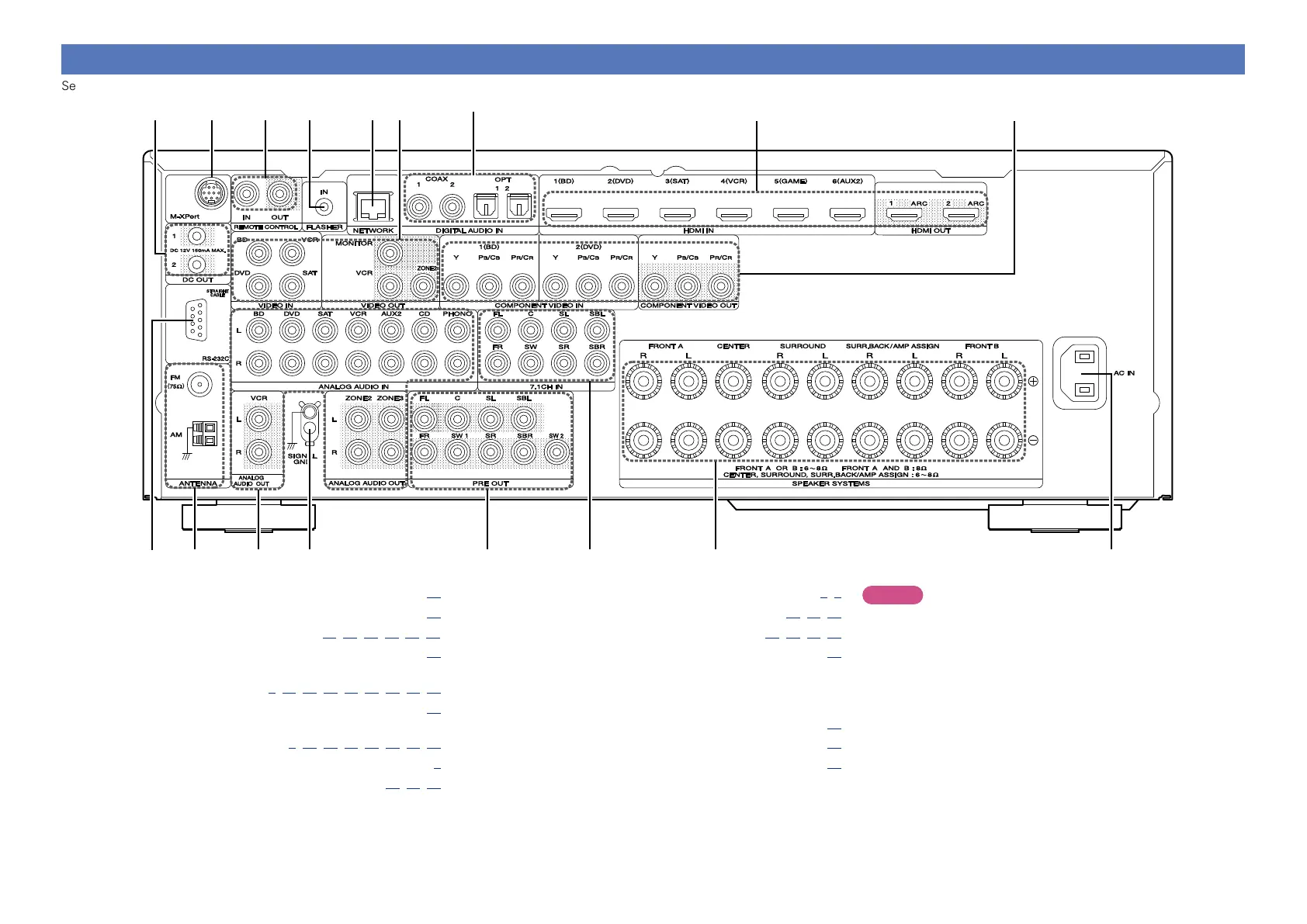

Rear panel
See the page indicated in parentheses ( ).
Q0
q w
e r t y u i
Q1 o
Q4Q5Q6Q7 Q3 Q2
q RS-232C connector ·································································· (67)
w FM/AM antenna terminals ····················································· (15)
e Analog audio connectors ·························· (11, 12, 13, 16, 17, 18)
r SIGNAL GND terminal ···························································· (16)
t PRE OUT connectors
············································ (C 6, 18, 57, 58, 59, 60, 61, 62, 63)
y 7.1CH IN connectors ································································ (17)
u Speaker terminals
·················································· (C 6, 57, 58, 59, 60, 61, 62, 63)
i AC inlet (AC IN) ·································································· (C 5)
o COMPONENT VIDEO connectors ······························· (10, 11, 12)
Q0 HDMI connectors ··························································· (C 3, 8)
Q1 Digital audio connectors ············································· (10, 12, 16)
Q2 VIDEO connectors ················································· (10, 11, 12, 13)
Q3 NETWORK connector ······························································ (19)
Q4 FLASHER IN jack
Used when using a control BOX or other such control devices to
control this unit.
Q5 REMOTE CONTROL jacks ······················································· (66)
Q6 M-XPort connector ·································································· (17)
Q7 DC OUT jacks ··········································································· (67)
NOTE
Do not touch the inner pins of the connectors on the rear panel.
Electrostatic discharge may cause permanent damage to the unit.
