This unit is compatible with Audyssey DSX
®
, Dolby Atmos and DTS Neo:X which
offers an even wider and deeper surround sensation. (v p. 331, 332, 336)
When using Audyssey DSX
®
, install front wide speakers or front height speakers.
0

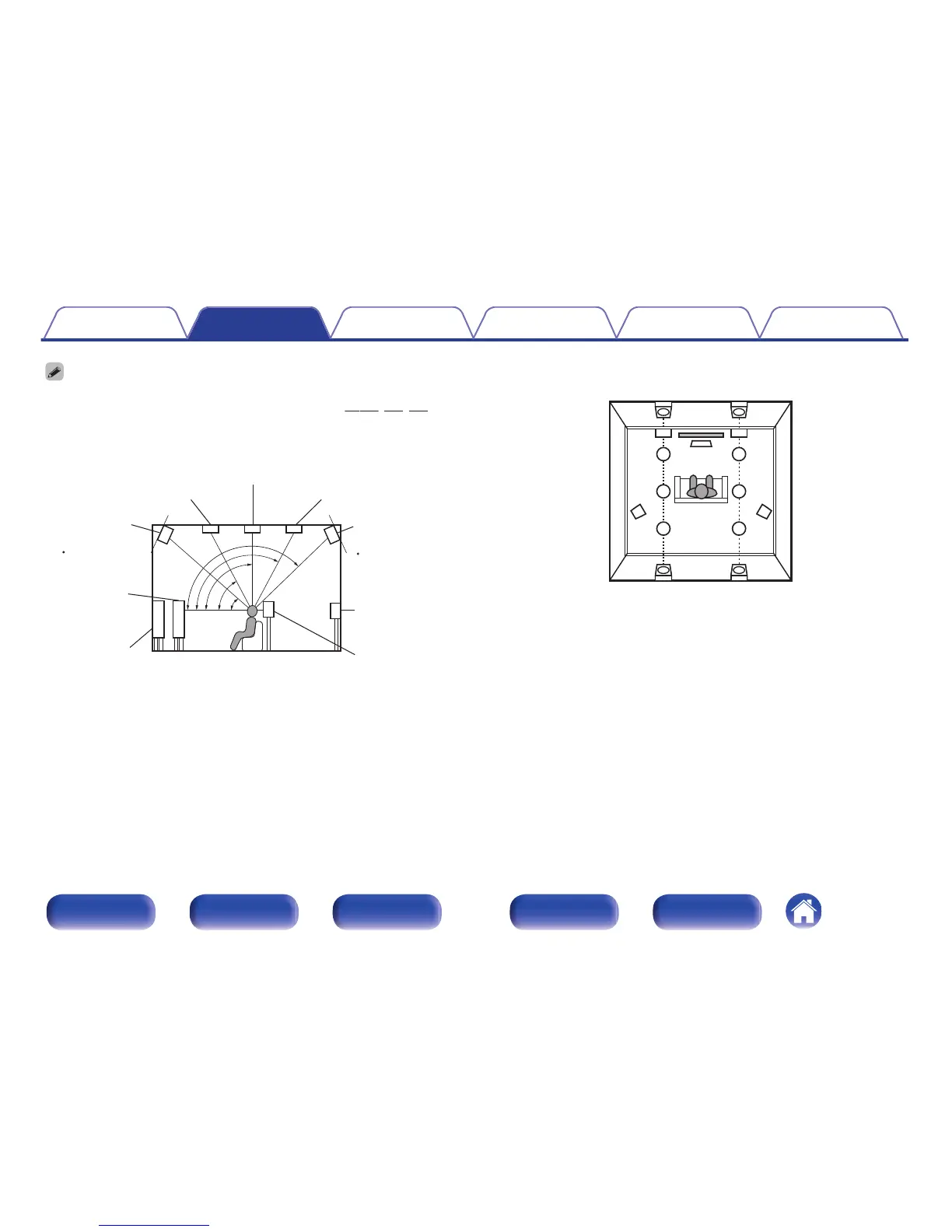

Use the illustration below as a guide for how high each speaker should be
installed. The height does not need to be exactly the same.
.
z1
z2
z3
z4
z5
Point slightly
downwards
Front height
speaker
z1 30° - 45°
z4 125° - 150°
z2 30° - 55°
z3 65° - 100°
z5 135° - 150°
GViewed from the sideH
Top middle speaker
Top front speaker
Top rear speaker
Front speaker
Surround
speaker
Surround
back
speaker
Front wide
speaker
Point slightly
downwards
Rear height
speaker
.
SL
TRL
RHL RHR
FHL
TML
TFL
FL
SR
TRR
FHR
TMR
TFR
FR
C
GViewed from the topH
Height speakers layout
