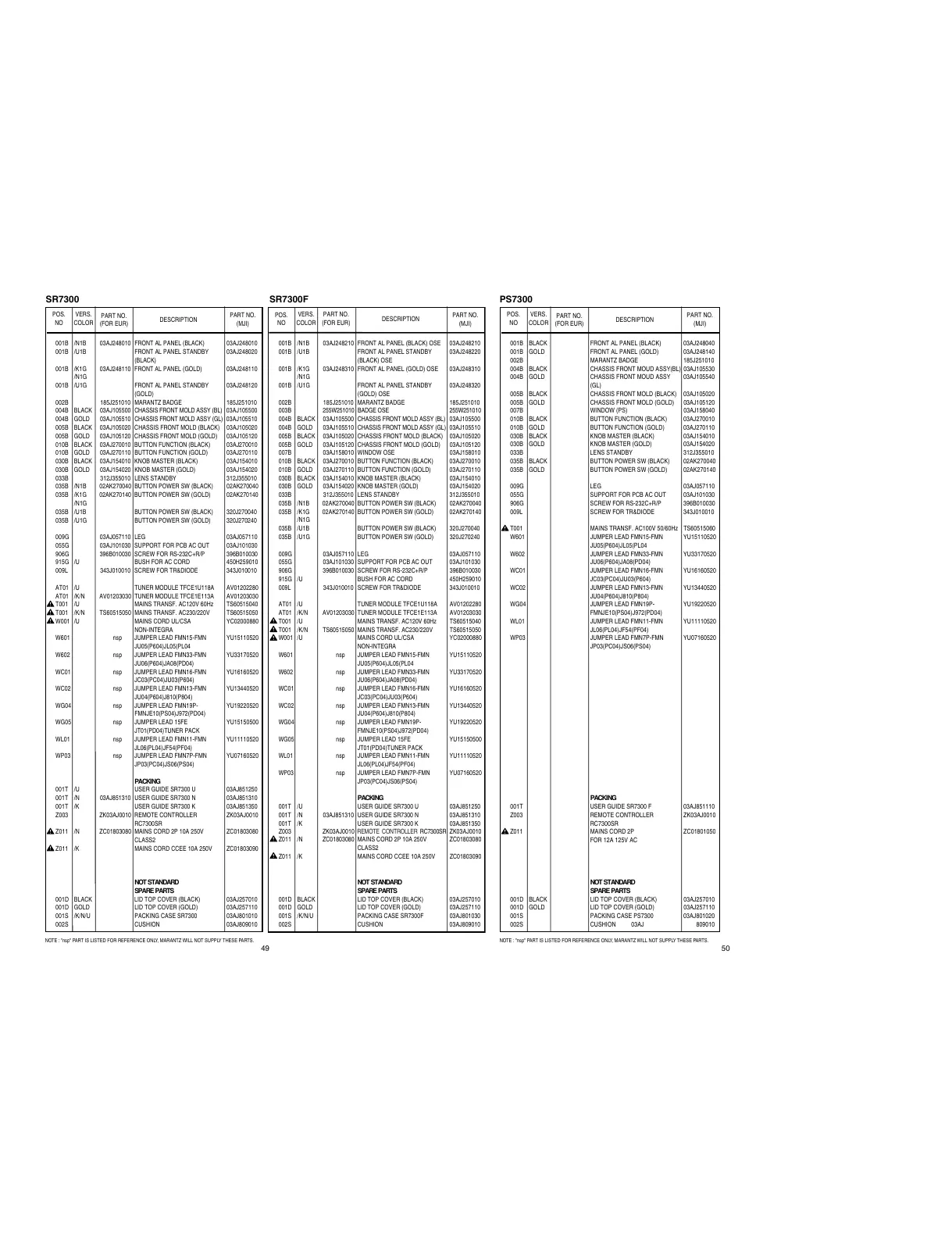

49 50
POS.
NO
VERS.
COLOR
PART NO.
(FOR EUR)
DESCRIPTION
PART NO.
(MJI)
POS.
NO
VERS.
COLOR
PART NO.
(FOR EUR)
DESCRIPTION
PART NO.
(MJI)
001B /N1B 03AJ248010 FRONT AL PANEL (BLACK) 03AJ248010
001B /U1B FRONT AL PANEL STANDBY
(BLACK)
03AJ248020
001B /K1G
/N1G
03AJ248110 FRONT AL PANEL (GOLD) 03AJ248110
001B /U1G FRONT AL PANEL STANDBY
(GOLD)
03AJ248120
002B 185J251010 MARANTZ BADGE 185J251010
004B BLACK 03AJ105500 CHASSIS FRONT MOLD ASSY (BL) 03AJ105500
004B GOLD 03AJ105510 CHASSIS FRONT MOLD ASSY (GL) 03AJ105510
005B BLACK 03AJ105020 CHASSIS FRONT MOLD (BLACK) 03AJ105020
005B GOLD 03AJ105120 CHASSIS FRONT MOLD (GOLD) 03AJ105120
010B BLACK 03AJ270010 BUTTON FUNCTION (BLACK) 03AJ270010
010B GOLD 03AJ270110 BUTTON FUNCTION (GOLD) 03AJ270110
030B BLACK 03AJ154010 KNOB MASTER (BLACK) 03AJ154010
030B GOLD 03AJ154020 KNOB MASTER (GOLD) 03AJ154020
033B 312J355010 LENS STANDBY 312J355010
035B /N1B 02AK270040 BUTTON POWER SW (BLACK) 02AK270040
035B /K1G
/N1G
02AK270140 BUTTON POWER SW (GOLD) 02AK270140
035B /U1B BUTTON POWER SW (BLACK) 320J270040
035B /U1G BUTTON POWER SW (GOLD) 320J270240
009G 03AJ057110 LEG 03AJ057110
055G 03AJ101030 SUPPORT FOR PCB AC OUT 03AJ101030
906G 396B010030 SCREW FOR RS-232C+R/P 396B010030
915G /U BUSH FOR AC CORD 450H259010
009L 343J010010 SCREW FOR TR&DIODE 343J010010
AT01 /U TUNER MODULE TFCE1U118A AV01202280
AT01 /K/N AV01203030 TUNER MODULE TFCE1E113A AV01203030
T001 /U MAINS TRANSF. AC120V 60Hz TS60515040
T001 /K/N TS60515050 MAINS TRANSF. AC230/220V TS60515050
W001 /U MAINS CORD UL/CSA
NON-INTEGRA
YC02000880
W601 nsp JUMPER LEAD FMN15-FMN
JU05(P604)JL05(PL04
YU15110520
W602 nsp JUMPER LEAD FMN33-FMN
JU06(P604)JA08(PD04)
YU33170520
WC01 nsp JUMPER LEAD FMN16-FMN
JC03(PC04)JU03(P604)
YU16160520
WC02 nsp JUMPER LEAD FMN13-FMN
JU04(P604)J810(P804)
YU13440520
WG04 nsp JUMPER LEAD FMN19P-
FMNJE10(PS04)J972(PD04)
YU19220520
WG05 nsp JUMPER LEAD 15FE
JT01(PD04)TUNER PACK
YU15150500
WL01 nsp JUMPER LEAD FMN11-FMN
JL06(PL04)JF54(PF04)
YU11110520
WP03 nsp JUMPER LEAD FMN7P-FMN
JP03(PC04)JS06(PS04)
YU07160520
PACKING
001T /U USER GUIDE SR7300 U 03AJ851250
001T /N 03AJ851310 USER GUIDE SR7300 N 03AJ851310
001T /K USER GUIDE SR7300 K 03AJ851350
Z003 ZK03AJ0010 REMOTE CONTROLLER
RC7300SR
ZK03AJ0010
Z011 /N ZC01803080 MAINS CORD 2P 10A 250V
CLASS2
ZC01803080
Z011 /K MAINS CORD CCEE 10A 250V ZC01803090
NOT STANDARD
SPARE PARTS
001D BLACK LID TOP COVER (BLACK) 03AJ257010
001D GOLD LID TOP COVER (GOLD) 03AJ257110
001S /K/N/U PACKING CASE SR7300 03AJ801010
002S CUSHION 03AJ809010
001B /N1B 03AJ248210 FRONT AL PANEL (BLACK) OSE 03AJ248210
001B /U1B FRONT AL PANEL STANDBY
(BLACK) OSE
03AJ248220
001B /K1G
/N1G
03AJ248310 FRONT AL PANEL (GOLD) OSE 03AJ248310
001B /U1G FRONT AL PANEL STANDBY
(GOLD) OSE
03AJ248320
002B 185J251010 MARANTZ BADGE 185J251010
003B 255W251010 BADGE OSE 255W251010
004B BLACK 03AJ105500 CHASSIS FRONT MOLD ASSY (BL) 03AJ105500
004B GOLD 03AJ105510 CHASSIS FRONT MOLD ASSY (GL) 03AJ105510
005B BLACK 03AJ105020 CHASSIS FRONT MOLD (BLACK) 03AJ105020
005B GOLD 03AJ105120 CHASSIS FRONT MOLD (GOLD) 03AJ105120
007B 03AJ158010 WINDOW OSE 03AJ158010
010B BLACK 03AJ270010 BUTTON FUNCTION (BLACK) 03AJ270010
010B GOLD 03AJ270110 BUTTON FUNCTION (GOLD) 03AJ270110
030B BLACK 03AJ154010 KNOB MASTER (BLACK) 03AJ154010
030B GOLD 03AJ154020 KNOB MASTER (GOLD) 03AJ154020
033B 312J355010 LENS STANDBY 312J355010
035B /N1B 02AK270040 BUTTON POWER SW (BLACK) 02AK270040
035B /K1G
/N1G
02AK270140 BUTTON POWER SW (GOLD) 02AK270140
035B /U1B BUTTON POWER SW (BLACK) 320J270040
035B /U1G BUTTON POWER SW (GOLD) 320J270240
009G 03AJ057110 LEG 03AJ057110
055G 03AJ101030 SUPPORT FOR PCB AC OUT 03AJ101030
906G 396B010030 SCREW FOR RS-232C+R/P 396B010030
915G /U BUSH FOR AC CORD 450H259010
009L 343J010010 SCREW FOR TR&DIODE 343J010010
AT01 /U TUNER MODULE TFCE1U118A AV01202280
AT01 /K/N AV01203030 TUNER MODULE TFCE1E113A AV01203030
T001 /U MAINS TRANSF. AC120V 60Hz TS60515040
T001 /K/N TS60515050 MAINS TRANSF. AC230/220V TS60515050
W001 /U MAINS CORD UL/CSA
NON-INTEGRA
YC02000880
W601 nsp JUMPER LEAD FMN15-FMN
JU05(P604)JL05(PL04
YU15110520
W602 nsp JUMPER LEAD FMN33-FMN
JU06(P604)JA08(PD04)
YU33170520
WC01 nsp JUMPER LEAD FMN16-FMN
JC03(PC04)JU03(P604)
YU16160520
WC02 nsp JUMPER LEAD FMN13-FMN
JU04(P604)J810(P804)
YU13440520
WG04 nsp JUMPER LEAD FMN19P-
FMNJE10(PS04)J972(PD04)
YU19220520
WG05 nsp JUMPER LEAD 15FE
JT01(PD04)TUNER PACK
YU15150500
WL01 nsp JUMPER LEAD FMN11-FMN
JL06(PL04)JF54(PF04)
YU11110520
WP03 nsp JUMPER LEAD FMN7P-FMN
JP03(PC04)JS06(PS04)
YU07160520
PACKING
001T /U USER GUIDE SR7300 U 03AJ851250
001T /N 03AJ851310 USER GUIDE SR7300 N 03AJ851310
001T /K USER GUIDE SR7300 K 03AJ851350
Z003 ZK03AJ0010 ZK03AJ0010
Z011 /N ZC01803080 MAINS CORD 2P 10A 250V
CLASS2
ZC01803080
Z011 /K MAINS CORD CCEE 10A 250V ZC01803090
NOT STANDARD
SPARE PARTS
001D BLACK LID TOP COVER (BLACK) 03AJ257010
001D GOLD LID TOP COVER (GOLD) 03AJ257110
001S /K/N/U PACKING CASE SR7300F 03AJ801030
002S CUSHION 03AJ809010
RC7300SR
REMOTE
CONTROLLER
POS.
NO
VERS.
COLOR
PART NO.
(FOR EUR)
DESCRIPTION
PART NO.
(MJI)
001B BLACK FRONT AL PANEL (BLACK) 03AJ248040
001B GOLD FRONT AL PANEL (GOLD) 03AJ248140
002B 185J251010 MARANTZ BADGE 185J251010
004B BLACK 03AJ105530 CHASSIS FRONT MOUD ASSY(BL) 03AJ105530
004B GOLD 03AJ105540 CHASSIS FRONT MOUD ASSY
(GL)
03AJ105540
005B BLACK 03AJ105020 CHASSIS FRONT MOLD (BLACK) 03AJ105020
005B GOLD 03AJ105120 CHASSIS FRONT MOLD (GOLD) 03AJ105120
007B 03AJ158040 WINDOW (PS) 03AJ158040
010B BLACK 03AJ270010 BUTTON FUNCTION (BLACK) 03AJ270010
010B GOLD 03AJ270110 BUTTON FUNCTION (GOLD) 03AJ270110
030B BLACK 03AJ154010 KNOB MASTER (BLACK) 03AJ154010
030B GOLD 03AJ154020 KNOB MASTER (GOLD) 03AJ154020
033B 312J355010 LENS STANDBY 312J355010
035B BLACK 02AK270040 BUTTON POWER SW (BLACK) 02AK270040
035B GOLD 02AK270140 BUTTON POWER SW (GOLD) 02AK270140
009G 03AJ057110 LEG 03AJ057110
055G 03AJ101030 SUPPORT FOR PCB AC OUT 03AJ101030
906G 396B010030 SCREW FOR RS-232C+R/P 396B010030
009L 343J010010 SCREW FOR TR&DIODE 343J010010
T001 TS60515060 MAINS TRANSF. AC100V 50/60Hz TS60515060
W601 YU15110520 JUMPER LEAD FMN15-FMN
JU05(P604)JL05(PL04
YU15110520
W602 YU33170520 JUMPER LEAD FMN33-FMN
JU06(P604)JA08(PD04)
YU33170520
WC01 YU16160520 JUMPER LEAD FMN16-FMN
JC03(PC04)JU03(P604)
YU16160520
WC02 YU13440520 JUMPER LEAD FMN13-FMN
JU04(P604)J810(P804)
YU13440520
WG04 YU19220520 JUMPER LEAD FMN19P-
FMNJE10(PS04)J972(PD04)
YU19220520
WL01 YU11110520 JUMPER LEAD FMN11-FMN
JL06(PL04)JF54(PF04)
YU11110520
WP03 YU07160520 JUMPER LEAD FMN7P-FMN
JP03(PC04)JS06(PS04)
YU07160520
PACKING
001T 03AJ851110 USER GUIDE SR7300 F 03AJ851110
Z003 ZK03AJ0010 REMOTE CONTROLLER
RC7300SR
ZK03AJ0010
Z011 ZC01801050 MAINS CORD 2P
FOR 12A 125V AC
ZC01801050
NOT STANDARD
SPARE PARTS
001D BLACK 03AJ257010 LID TOP COVER (BLACK) 03AJ257010
001D GOLD 03AJ257110 LID TOP COVER (GOLD) 03AJ257110
001S 03AJ801020 PACKING CASE PS7300 03AJ801020
002S 03AJ809010 CUSHION 03AJ 809010
SR7300FSR7300
NOTE : "nsp" PART IS LISTED FOR REFERENCE ONLY, MARANTZ WILL NOT SUPPLY THESE PARTS.
PS7300
NOTE : "nsp" PART IS LISTED FOR REFERENCE ONLY, MARANTZ WILL NOT SUPPLY THESE PARTS.
