36
63 O(SC) DSPCLK DSP DIR Control CLOCK
64 O _CEFL L FL Driver chip sel
65 - VSS - GND
66 O VOLDATA - Volume IC DATA
67 - VSS - GND
68 - VSS - GND
69 O VOLCLK - Volume IC CLOCK
70 O CE_VOLA H Volume IC Chip Sel A
71 O CE_VOLB H Volume IC Chip Sel B
72 O FLRA_ON H SPK A SELECT
73 O FLRB_ON H SPK B SELECT
74 O SURR_ON H SURR/CNT/SB SPK ON
75 O HEAT H Power Amp ±B_L_Sel
76 I _HEAT_DET H
Power Amp Heat sink Temp
Detect
77 O _STANDBY L Standby Power
78 I _HP_DET L HP Jack Detect
79 O HP_ON H HEAD PHONE ON
80 - VCL -
81 I _RST L Reset
82 NO NMI - Fix H
83 NO _STBY L Fix H
84 I Vcc - +5V
85 O XTAL - Xtal(20M)
86 I EXTAL - Xtal(20M)
87 - VSS - GND
88 I SEL- - Front Select. Encoder
89 I Vcc - +5V
90 I SEL+ - Front Select. Encoder
91 O _STBY LED L Standby LED On
92 O _RSFL L Front FL Driver
93 I VOL- - Front Vol. Encoder
94 I VOL+ - Front Vol. Encoder
95 I CTS - UART
96 O RTS UART
97 O(SO) OSDDATA - Front FL & Video(OSD)
98 I N.C - PULL DOWN
99 - VSS - GND
100 - VSS - GND
101 O(SC) OSDCLK - Front FL & Video(OSD)
102 O _RSTFL L Reset FL Driver
103 - AVCC - +5V
104 - VREF - +5V
105 I(AD) KEY0 - Front Key
106 I(AD) KEY1 - Front Key
107 I(AD) KEY2 - Front Key
108 I(AD) _5V_DOWN - Detect 5V
109 I(AD) P_LINE_FAIL - Emergency Protection
110 I(AD) MODE - CPU mode
111 I _OVFL H Peak Indicator
112 I(AD) TV_AUTO H TV Video Detect
113 - VSS - GND
114 - VSS - GND
115 O M_RC_OUT RC BUS MULTI OUTPUT
116 O RC_OUT RC BUS OUTPUT
117 I M_RC_IN L Multi RC5 IN Detect Signal
118 I VSYNC
↑
V-sync Det. & Change OSD
119 O KILLIR H Kill to IR input signal.
120 O DC_OUT1 L DC Triger1
121 O DC_OUT2 L DC Triger2
122 I RC_IN
↑↓
IR In for RC-5
123 I MD0 - +5V
124 I MD1 - Fix H
125 I MD2 - Normal :H, Boot :L
126 O _FCS L DSP CHIP ENABLE
127 O _RSTDSP L DSP
128 O _SCS L DSP CHIP ENABLE
Pin I/O Name
Port
Note
Act.
1 O BTMOD L FLASH ROM Address (A18)
2 I N.C - PULL DOWN
3 - VSS - GND
4 NC NC GND
5 I Vcc -
6 O _RSTDAC L DAC
7 O DFS H DAC&I(AD)C
8O_ATT LADC
9 O _RSTADC L ADC
10 - VSS - GND
11 O D_A - DIR or _ADC sel
12 I XSTATE - DIR
13 O _CEDIR L DIR CHIP ENABLE
14 O _XMODE L DIR RESET
15 O IICCLK - I2C for E2PROM
16 I/O IICDATA - I2C for E2PROM
17 I _TU_SD L Tuned
18 I TU_ST H Stereo Tune/_MONO
19 - VSS - GND
20 O TU_MUTE H Tuner MUTE
21 O _CE_TU L Tuner Pack
22 O _KILL_RDS L Tuner Pack(RDS)
23 O _CERDS L Tuner Pack(RDS)
24 O TUDOUT - Tuner Pack
25 O TUCLK - Tuner Pack
26 I TUDIN - Tuner Pack
27 I RDSDIN - Tuner Pack(RDS)
28 - VSS - GND
29 I(INT) REQ2 L DSP FINTR EQ
30 I(INT) DIR_INT DIR INT OUTPUT
31 I(INT) _P_AMP_FAIL L Power amp Detect
32 I IRQ7 - PULL DOWN
33 I(INT) REQ1 L DSP INTER Q
34 I(INT) RERR H DIR ERROR
35 - VSS - GND
36 - VSS - GND
37 I(INT) WAKEUP
↑
STANDBY MODE Release
38 I(INT) _P_DOWN L Power Down Detect
39 I Vcc - +5V
40 O N.C - OPEN
41 O _CEEX L P-Exp(Video)Sel A
42 O Y_OSD H Y/C_OSD_IC_BYPASS
43 O CVBS_OSD H CVBS_OSD_IC_BYPASS
44 - VSS - GND
45 O _CEOSD L Video Circuit
46 I HINBSY - DSP Busy Signal
47 O AFDATA - Analog Switch DATA
48 O AFCLK - Analog Switch CLOCK
49 O CE_TCA H Analog Switch TC9273
50 O CE_TCB H Analog Switch TC9262/9264
51 O MULTIMUTE H MULTI ROOM MUTE
52 O SWMUTE H SUB W MUTE
53 - VSS - GND
54 O CNTMUTE H CENTER SP MUTE
55 O SBMUTE H SRR B MUTE
56 O SL/SRMUTE H SL SR MUTE
57 O L/RMUTE H FRONT L R MUTE
58 I Vcc - +5V
59 O(SO) DSPDOUT DSP DIR Control Data OUT
60 O(SO) TXD UART for Panja, Flash WR
61 I(SI) DSPDIN DSP DIR Control Data IN
62 I(SI) RXD UART for Panja, Flash WR

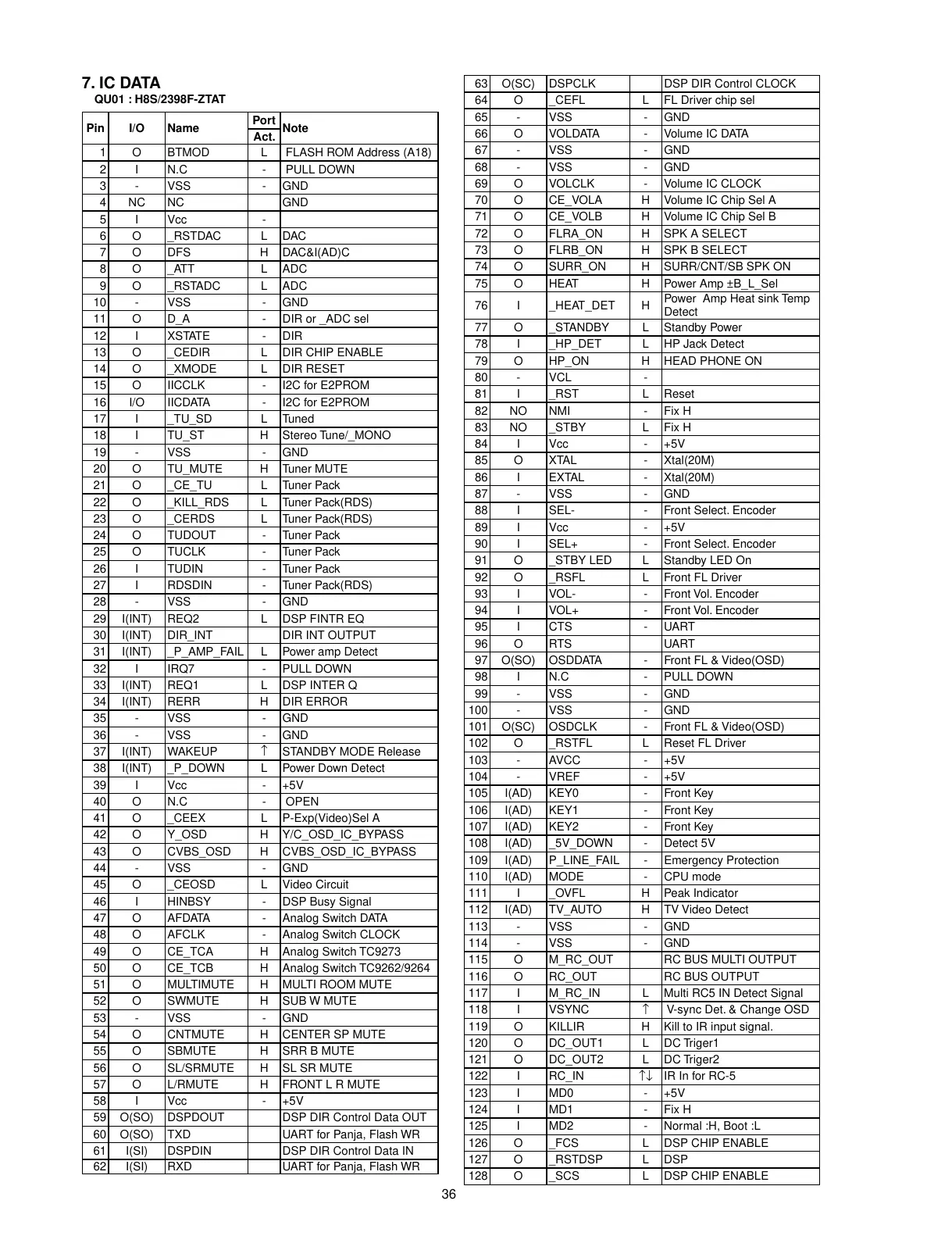

7. IC DATA
QU01 : H8S/2398F-ZTAT
To Next Page
