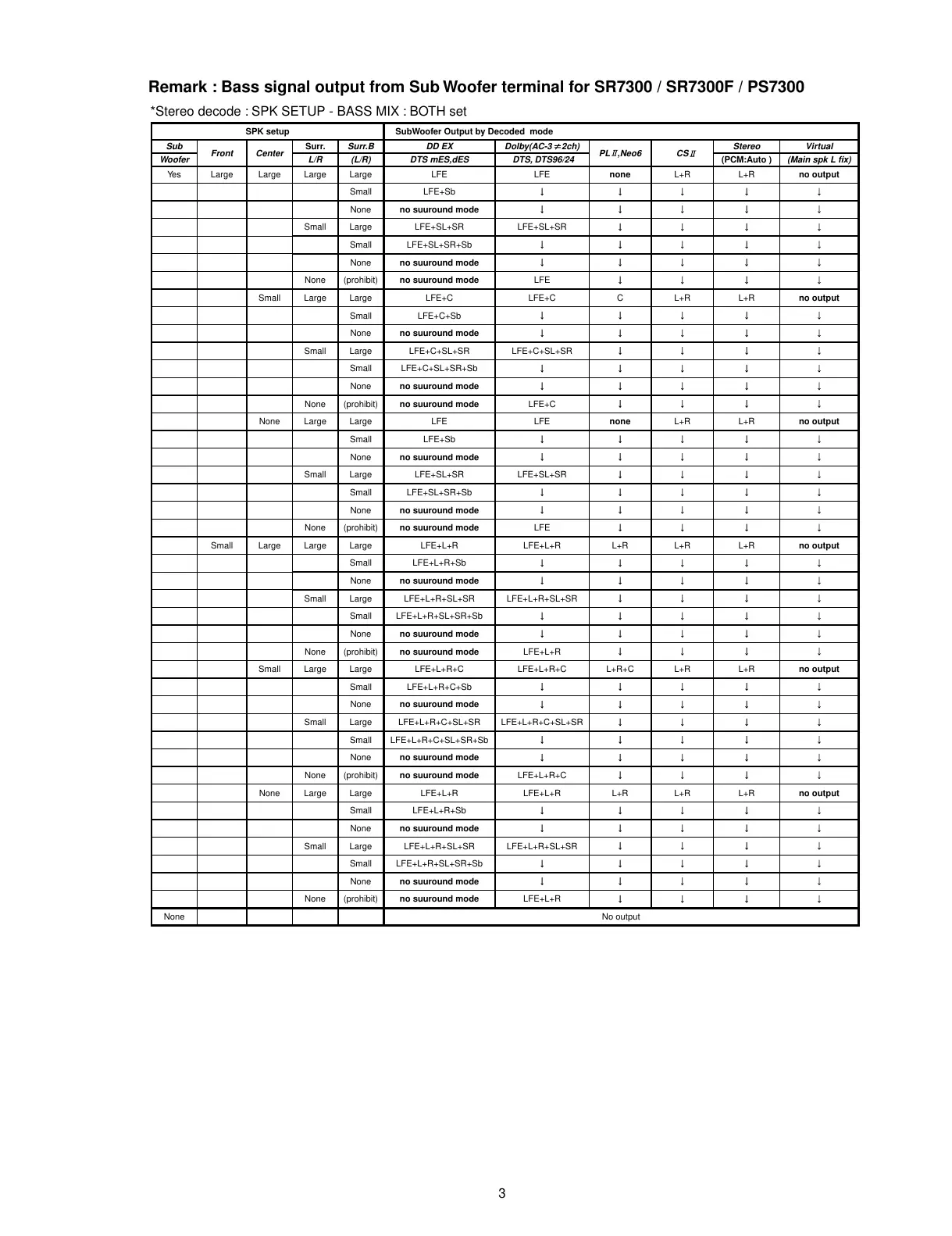

Remark : Bass signal output from Sub Woofer terminal for SR7300 / SR7300F / PS7300
*Stereo decode : SPK SETUP - BASS MIX : BOTH set
SPK setup SubWoofer Output by Decoded mode
Sub
Front Center
Surr. Surr.B DD EX Dolby(AC-3 2ch)
PL ,Neo6 CS
Stereo Virtual
Woofer L/R (L/R) DTS mES,dES DTS, DTS96/24 (PCM:Auto ) (Main spk L fix)
Yes Large Large Large Large LFE LFE none L+R L+R no output
Small LFE+Sb
None no suuround mode
Small Large LFE+SL+SR LFE+SL+SR
Small LFE+SL+SR+Sb
None no suuround mode
None (prohibit) no suuround mode LFE
Small Large Large LFE+C LFE+C C L+R L+R no output
Small LFE+C+Sb
None no suuround mode
Small Large LFE+C+SL+SR LFE+C+SL+SR
Small LFE+C+SL+SR+Sb
None no suuround mode
None (prohibit) no suuround mode LFE+C
None Large Large LFE LFE none L+R L+R no output
Small LFE+Sb
None no suuround mode
Small Large LFE+SL+SR LFE+SL+SR
Small LFE+SL+SR+Sb
None no suuround mode
None (prohibit) no suuround mode LFE
Small Large Large Large LFE+L+R LFE+L+R L+R L+R L+R no output
Small LFE+L+R+Sb
None no suuround mode
Small Large LFE+L+R+SL+SR LFE+L+R+SL+SR
Small LFE+L+R+SL+SR+Sb
None no suuround mode
None (prohibit) no suuround mode LFE+L+R
Small Large Large LFE+L+R+C LFE+L+R+C L+R+C L+R L+R no output
Small LFE+L+R+C+Sb
None no suuround mode
Small Large LFE+L+R+C+SL+SR LFE+L+R+C+SL+SR
Small LFE+L+R+C+SL+SR+Sb
None no suuround mode
None (prohibit) no suuround mode LFE+L+R+C
None Large Large LFE+L+R LFE+L+R L+R L+R L+R no output
Small LFE+L+R+Sb
None no suuround mode
Small Large LFE+L+R+SL+SR LFE+L+R+SL+SR
Small LFE+L+R+SL+SR+Sb
None no suuround mode
None (prohibit) no suuround mode LFE+L+R
None No output
