NOTE : "nsp" PART IS LISTED FOR REFERENCE ONLY, MARANTZ WILL NOT SUPPLY THESE PARTS.
77

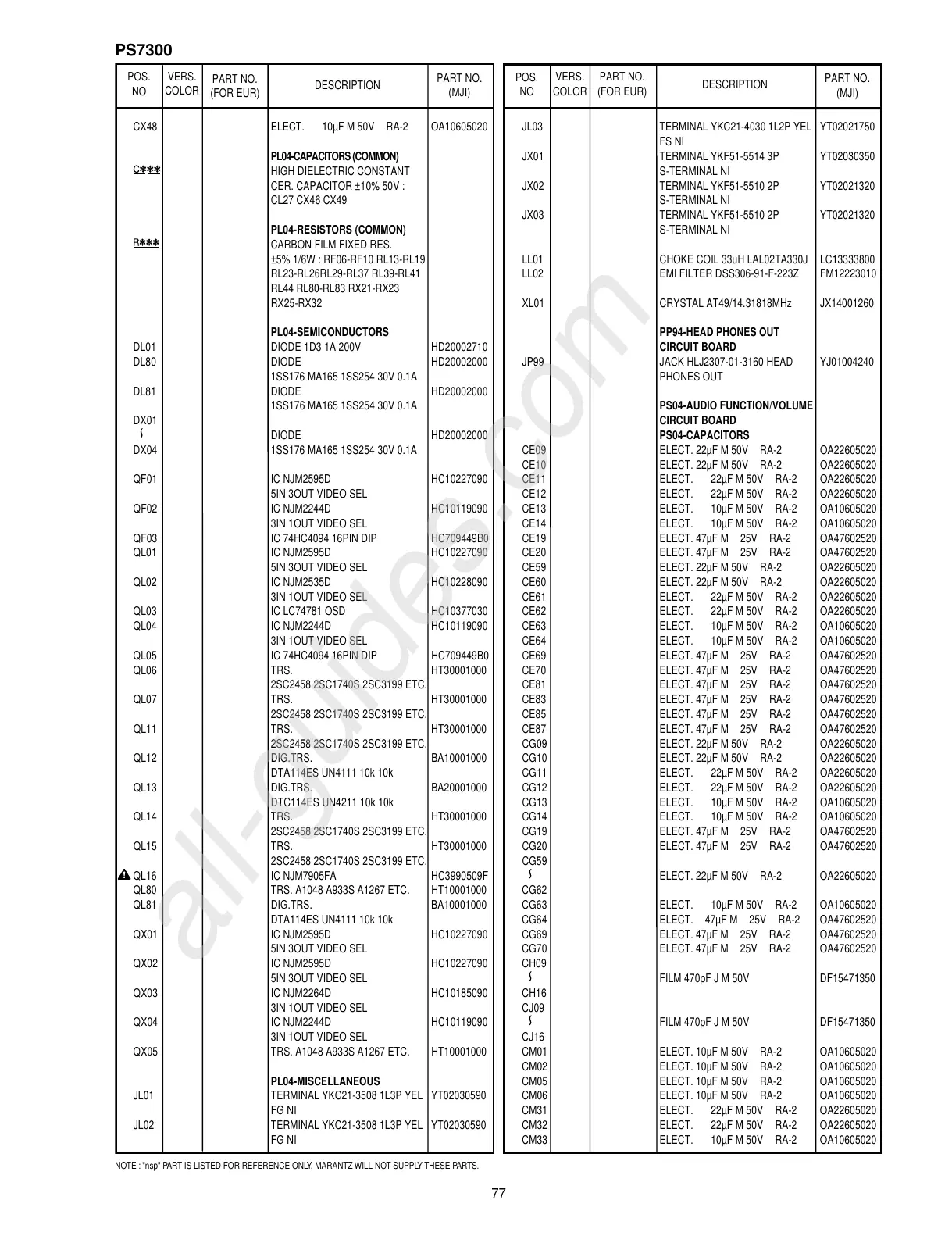

PS7300
POS.
NO
VERS.
COLOR
PART NO.
(FOR EUR)
DESCRIPTION
PART NO.
(MJI)
POS.
NO
VERS.
COLOR
PART NO.
(FOR EUR)
DESCRIPTION
PART NO.
(MJI)
CX48 ELECT. 10µF M 50V RA-2 OA10605020
PL04-CAPACITORS (COMMON)
HIGH DIELECTRIC CONSTANT
CER. CAPACITOR ±10% 50V :
CL27 CX46 CX49
PL04-RESISTORS (COMMON)
CARBON FILM FIXED RES.
±5% 1/6W : RF06-RF10 RL13-RL19
RL23-RL26RL29-RL37 RL39-RL41
RL44 RL80-RL83 RX21-RX23
RX25-RX32
PL04-SEMICONDUCTORS
DL01 DIODE 1D3 1A 200V HD20002710
DL80 DIODE
1SS176 MA165 1SS254 30V 0.1A
HD20002000
DL81 DIODE
1SS176 MA165 1SS254 30V 0.1A
HD20002000
DX01
DIODE HD20002000
DX04 1SS176 MA165 1SS254 30V 0.1A
QF01 IC NJM2595D
5IN 3OUT VIDEO SEL
HC10227090
QF02 IC NJM2244D
3IN 1OUT VIDEO SEL
HC10119090
QF03 IC 74HC4094 16PIN DIP HC709449B0
QL01 IC NJM2595D
5IN 3OUT VIDEO SEL
HC10227090
QL02 IC NJM2535D
3IN 1OUT VIDEO SEL
HC10228090
QL03 IC LC74781 OSD HC10377030
QL04 IC NJM2244D
3IN 1OUT VIDEO SEL
HC10119090
QL05 IC 74HC4094 16PIN DIP HC709449B0
QL06 TRS.
2SC2458 2SC1740S 2SC3199 ETC.
HT30001000
QL07 TRS.
2SC2458 2SC1740S 2SC3199 ETC.
HT30001000
QL11 TRS.
2SC2458 2SC1740S 2SC3199 ETC.
HT30001000
QL12 DIG.TRS.
DTA114ES UN4111 10k 10k
BA10001000
QL13 DIG.TRS.
DTC114ES UN4211 10k 10k
BA20001000
QL14 TRS.
2SC2458 2SC1740S 2SC3199 ETC.
HT30001000
QL15 TRS.
2SC2458 2SC1740S 2SC3199 ETC.
HT30001000
QL16 IC NJM7905FA HC3990509F
QL80 TRS. A1048 A933S A1267 ETC. HT10001000
QL81 DIG.TRS.
DTA114ES UN4111 10k 10k
BA10001000
QX01 IC NJM2595D
5IN 3OUT VIDEO SEL
HC10227090
QX02 IC NJM2595D
5IN 3OUT VIDEO SEL
HC10227090
QX03 IC NJM2264D
3IN 1OUT VIDEO SEL
HC10185090
QX04 IC NJM2244D
3IN 1OUT VIDEO SEL
HC10119090
QX05 TRS. A1048 A933S A1267 ETC. HT10001000
PL04-MISCELLANEOUS
JL01 TERMINAL YKC21-3508 1L3P YEL
FG NI
YT02030590
JL02 TERMINAL YKC21-3508 1L3P YEL
FG NI
YT02030590
JL03 TERMINAL YKC21-4030 1L2P YEL
FS NI
YT02021750
JX01 TERMINAL YKF51-5514 3P
S-TERMINAL NI
YT02030350
JX02 TERMINAL YKF51-5510 2P
S-TERMINAL NI
YT02021320
JX03 TERMINAL YKF51-5510 2P
S-TERMINAL NI
YT02021320
LL01 CHOKE COIL 33uH LAL02TA330J LC13333800
LL02 EMI FILTER DSS306-91-F-223Z FM12223010
XL01 CRYSTAL AT49/14.31818MHz JX14001260
PP94-HEAD PHONES OUT
CIRCUIT BOARD
JP99 JACK HLJ2307-01-3160 HEAD
PHONES OUT
YJ01004240
PS04-AUDIO FUNCTION/VOLUME
CIRCUIT BOARD
PS04-CAPACITORS
CE09 ELECT. 22µF M 50V RA-2 OA22605020
CE10 ELECT. 22µF M 50V RA-2 OA22605020
CE11 ELECT. 22µF M 50V RA-2 OA22605020
CE12 ELECT. 22µF M 50V RA-2 OA22605020
CE13 ELECT. 10µF M 50V RA-2 OA10605020
CE14 ELECT. 10µF M 50V RA-2 OA10605020
CE19 ELECT. 47µF M 25V RA-2 OA47602520
CE20 ELECT. 47µF M 25V RA-2 OA47602520
CE59 ELECT. 22µF M 50V RA-2 OA22605020
CE60 ELECT. 22µF M 50V RA-2 OA22605020
CE61 ELECT. 22µF M 50V RA-2 OA22605020
CE62 ELECT. 22µF M 50V RA-2 OA22605020
CE63 ELECT. 10µF M 50V RA-2 OA10605020
CE64 ELECT. 10µF M 50V RA-2 OA10605020
CE69 ELECT. 47µF M 25V RA-2 OA47602520
CE70 ELECT. 47µF M 25V RA-2 OA47602520
CE81 ELECT. 47µF M 25V RA-2 OA47602520
CE83 ELECT. 47µF M 25V RA-2 OA47602520
CE85 ELECT. 47µF M 25V RA-2 OA47602520
CE87 ELECT. 47µF M 25V RA-2 OA47602520
CG09 ELECT. 22µF M 50V RA-2 OA22605020
CG10 ELECT. 22µF M 50V RA-2 OA22605020
CG11 ELECT. 22µF M 50V RA-2 OA22605020
CG12 ELECT. 22µF M 50V RA-2 OA22605020
CG13 ELECT. 10µF M 50V RA-2 OA10605020
CG14 ELECT. 10µF M 50V RA-2 OA10605020
CG19 ELECT. 47µF M 25V RA-2 OA47602520
CG20 ELECT. 47µF M 25V RA-2 OA47602520
CG59
ELECT. 22µF M 50V RA-2 OA22605020
CG62
CG63 ELECT. 10µF M 50V RA-2 OA10605020
CG64 ELECT. 47µF M 25V RA-2 OA47602520
CG69 ELECT. 47µF M 25V RA-2 OA47602520
CG70 ELECT. 47µF M 25V RA-2 OA47602520
CH09
FILM 470pF J M 50V DF15471350
CH16
CJ09
FILM 470pF J M 50V DF15471350
CJ16
CM01 ELECT. 10µF M 50V RA-2 OA10605020
CM02 ELECT. 10µF M 50V RA-2 OA10605020
CM05 ELECT. 10µF M 50V RA-2 OA10605020
CM06 ELECT. 10µF M 50V RA-2 OA10605020
CM31 ELECT. 22µF M 50V RA-2 OA22605020
CM32 ELECT. 22µF M 50V RA-2 OA22605020
CM33 ELECT. 10µF M 50V RA-2 OA10605020
