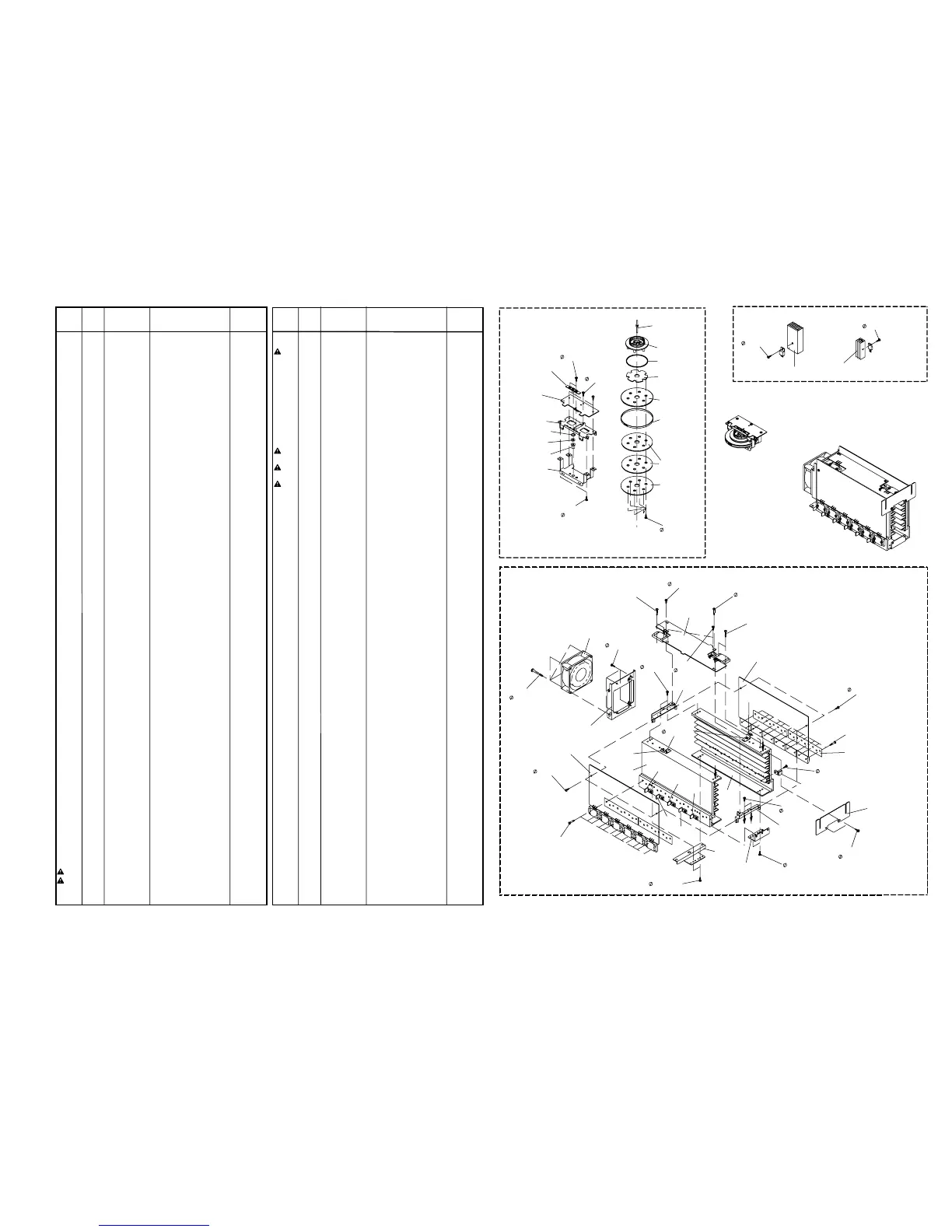

Marantz SR9200 - Page 61

85 86
NOTE : "nsp" PART IS LISTED FOR REFERENCE ONLY, MARANTZ WILL NOT SUPPLY THESE PARTS.
M011
5128
4X35( U)
x4
002L
5128
3X8( M)
x2
006L
5128
3X8( M)
x2
004L
006L
5128
3X8( M)
x2
019L
5128
3X8( M)
x4
5128
3X8( M)
x2
5128
3X8( M)
x2
5128
3X8( M)
x2
P154
P11 4
P414
5126
3X12( M)
P134
P21 4
P314
5126
3X12( M)
x10
P174, PN54, P254, PN64, P354
001L
008L
5128
3X8( M)
x2
001L
5128
3X8( M)
x2
010Lx12
010Lx12
010Lx2
010Lx2
PN24
PN14
5128
3X8( M)
x2
5128
3X8( U)
x2
PY54
026Lx4
008L
001C
002C
004Cx2
001C
003C
5126
3X8( U)
x6
006C
007C
008C
009C
5110
3X8( A)
x2
5128
3X8( M)
x4
5128
3X8( M)
019C
017C
PC94
016C
015C
014C
5110
3X6( M) x7
001K, 002K, 003K
004K, 005K, 006K, 021K
5110
3X6( M)
011K
POS.
NO
VERS.
COLOR
PART NO.
(FOR PCS)
DESCRIPTION
PART NO.
(MJI)
POS.
NO
VERS.
COLOR
PART NO.
(FOR PCS)
DESCRIPTION
PART NO.
(MJI)
001B /N/S
BLK
9965 000 12755 FRONT PANEL(SR9200 BL) 344J248010
001B /N GLD 9965 000 12771 FRONT PANEL(SR9200 GL) 344J248110
001B /S GLD FRONT PANEL(SR9200 GL) 344J248110
001B /U BLK FRONT PANEL STDBY(BLACK) 344J248020
001B /U GLD FRONT PANEL STDBY (GOLD) 344J248120
002B 4822 459 11172 MARANTZ BADGE 185J251010
007B /N/S 9965 000 12756 WINDOW(SR9200) 343J158110
008B BLK 9965 000 12757 FUNCTION BUTTON (BLACK) 343J270050
008B /N GLD 9965 000 12772 FUNCTION BUTTON (GOLD) 343J270150
008B /S/U
GLD
FUNCTION BUTTON (GOLD) 343J270150
009B BLK 9965 000 12735 DOOR INSIDE BUTTON (BLK) 343J270020
009B /N GLD 9965 000 12747 DOOR INSUDE BUTTON (GLD) 343J270120
009B /S/U
GLD
DOOR INSIDE BUTTON(GLD) 343J270120
010B 9965 000 12736 CENTER GOLD BUTTON 343J270030
012B BLK 9965 000 12758 CENTER ESCUTCHEON(BLK) 344J063010
012B /N GLD 9965 000 12773 CENTER ESCUTCHEON(GOLD) 344J063110
012B /S/U
GLD
CENTER ESCUTCHEON(GOLD) 344J063110
030B BLK 9965 000 03432 MASTER KNOB (BLACK) 312J154010
030B GLD 9965 000 01391 MASTER KNOB (GOLD) 312J154020
031B BLK 9965 000 12739 DOOR PANEL(BL) 343J162010
031B /N GLD 9965 000 12750 DOOR PANEL(GL) 343J162110
031B /S/U
GLD
DOOR PANEL(GL) 343J162110
032B BLK 9965 000 12740 DOOR HINGE ARM(BL) 343J002010
032B /N GLD 9965 000 12751 DOOR HINGE ARM(BL) 343J002110
032B /S/U
GLD
DOOR HINGE ARM(GL) 343J002110
033B 9965 000 01393 STANDBY LENS 312J355010
034B /N/S 9965 000 01394 POWER BUTTON JOINT 312J125010
035B /N/S
BLK
9965 000 01975 POWER SW BUTTON (BLACK) 255W270010
035B /N/S
GLD
9965 000 01395 POWER SW BUTTON (GOLD) 255W270110
035B /U BLK POWER SW TACT (BLACK) 320J270040
035B /U GLD POWER SW TACT (GOLD) 320J270240
045B 4822 529 10215 DOOR DUMPER 391H130030
057B 4822 526 20213 DOOR MAGNET 271K305500
001C BLK 4822 410 11675 ESCUTCHEON GYRO ESC.
(UP & DOWN:BL)
290J063010
001C GLD 4822 410 11676 ESCUTCHEON GYRO ESC.
(UP & DOWN:GL)
290J063110
002C BLK 9965 000 12759 GYRO RUBBER RING (BL) 344J066010
002C /N GLD 9965 000 12774 GYRO RUBBER RING (GL) 344J066110
002C /S/U
GLD
GYRO RUBBER RING (GL) 344J066110
003C 9965 000 01397 FLYWHEEL GYRO BASE 290J273110
016C 9965 000 12760 RUBBER RING FOR GYRO 344J066020
009G 4822 462 42045 LEG (FRONT SIDE) 183J057010
010G 4822 462 42048 LEG (REAR SIDE) 183J057110
024G /N/S REAR SIDE STOPPER (IEC) 322J114010
026G /N/S FRONT SIDE STOPPER (IEC) 322J114010
911G USB HALL COVER 343J053010
AT01 /N 9965 000 12333 VHF TUNER MODULE
TFCE1LXXXA
AV01203040
AT01 /S VHF TUNER MODULE
TFCE1EXXXA
AV01203030
AT01 /U VHFTUNER MODULE
TFCE1U118A
AV01202280
L001 /N/S 9965 000 12762 MAINS TRANSF AC230V TS42002210
L001 /U MAINS TRANSF AC120V TS42002200
L011 FERRITE CORE TFCK-23-11-14 FC50230010
L021 /N/S 4822 526 10691 FERRITE CORE TFCK-16-8-13 FC50160030
L031 9965 000 12662 FERRITE CORE SSC-40-12 FC90400010
M011 9965 000 01770 D.C MOTOR COOLING FAN MM01200320
WC01 9965 000 12335 JUMPER LEAD FFC
JC01(PC04)-JU04(P604)
YU23730530
WY01 9965 000 12336 JUMPER LEAD FFC
15P JY23-TUNERPACK
YU15200500
PACKING
001T /N 9965 000 12761 USER GUIDE SR9200 /N 344J851310
001T /S USER GUIDE SR9200 /S 344J851350
001T /U USER GUIDE SR9200 /U 344J851250
Z004 9965 000 12727 REMOTE CONTROLLER
RC3200
ZK344J0010
Z011 /N 4822 321 11033 MAINS CORD
2P 250V 10A CLASS2
ZC01803080
Z011 /S MAINS CORD
250V 10A FOR UK
ZC01804100
Z011 /U MAINS CORD
125V13A UL/CSA
ZC01802100
NOT STANDARD SPARE
PARTS
001D BLK TOP COVER (BLACK) 343J257010
001D GLD TOP COVER (GOLD) 343J257110
001S PACKING CASE (SR9200) 344J801010
002S CUSHION (LEFT) 343J809010
003S CUSHION (RIGHT) 343J809020
