Marantz SR9200 - Page 63

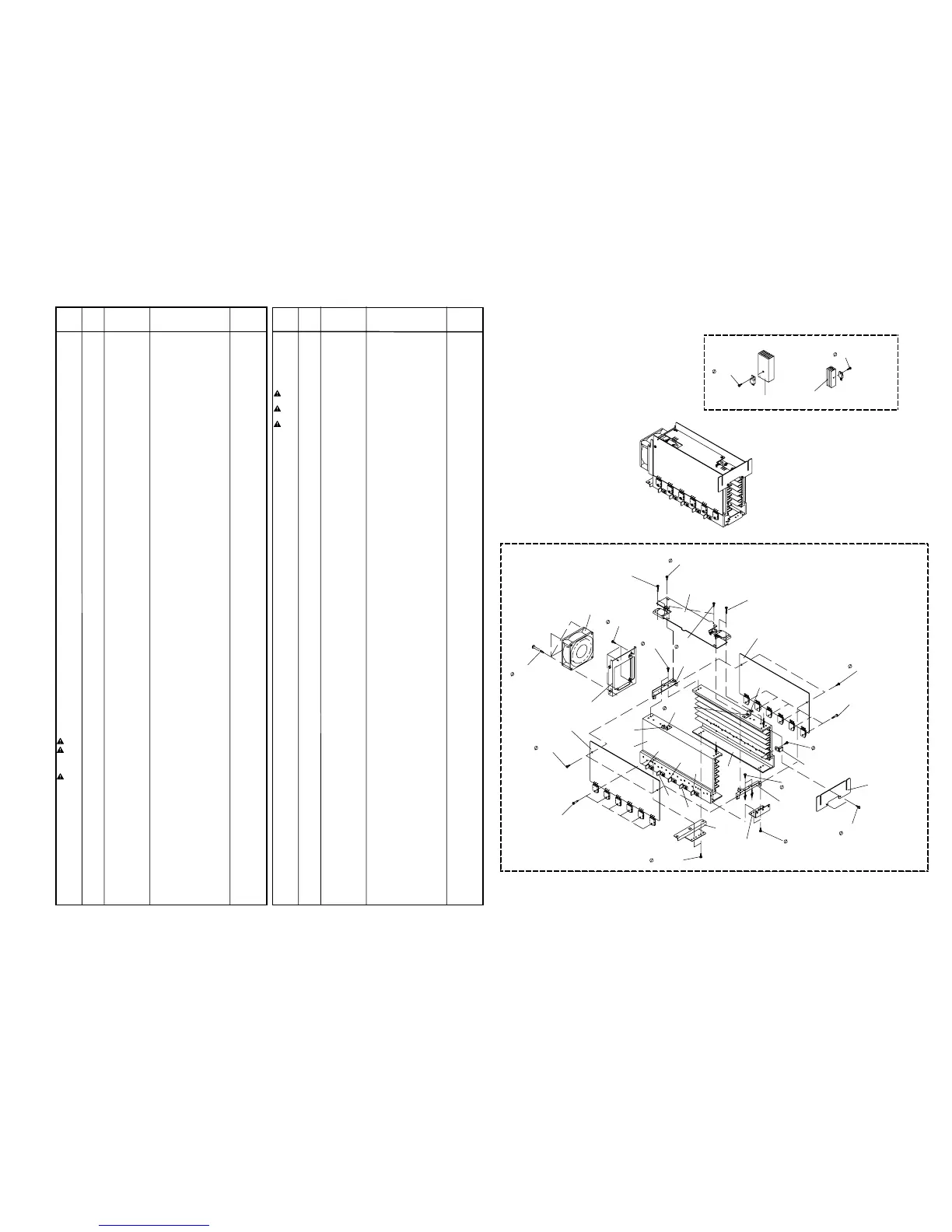

5110
3X6( M) x7
001K, 002K, 003K
004K, 005K, 006K, 021K
5110
3X6( M)
011K
M011
5128
4X35( U)
x4
5128
3X8( M)
x2
008L
5128
3X8( M)
x2
006L
002L
006L
5128
3X8( M)
x2
004L
5128
3X8( M)
x2
5128
3X8( M)
x2
5128
3X8( M)
x2
P15 4
P114
P41 4
P134
P214
P314
5126
3X12( M)
x10
P174, PN54, P254, PN64, P354
008L
001L
001L
5128
3X8( M)
x2
5128
3X8( M)
x2
5128
3X8( M)
x4
019L
010Lx6
010Lx6
010Lx2
010Lx2
PN14
PN24
5128
3X8( M)
x2
5128
3X8( U)
x2
PY54
89 90
NOTE : "nsp" PART IS LISTED FOR REFERENCE ONLY, MARANTZ WILL NOT SUPPLY THESE PARTS.
POS.
NO
VERS.
COLOR
PART NO.
(FOR PCS)
DESCRIPTION
PART NO.
(MJI)
POS.
NO
VERS.
COLOR
PART NO.
(FOR PCS)
DESCRIPTION
PART NO.
(MJI)
001B /N/S
BLK
9965 000 12728 FRONT PANEL(BLK) 343J248010
001B /N/S
GLD
9965 000 12745 FRONT PANEL(GLD) 343J248110
001B /U BLK FRONT PANEL STDBY(BLK) 343J248020
001B /U GLD FRONT PANEL STDBY(GLD) 343J248120
002B 4822 459 11172 MARANTZ BADGE 185J251010
007B 9965 000 12733 WINDOW 343J158010
008B BLK 9965 000 12734 FUNCTION BUTTON(BLACK) 343J270010
008B GLD 9965 000 12746 FUNCTION BUTTON(GOLD) 343J270110
009B BLK 9965 000 12735 DOOR INSIDE BUTTON(BLK) 343J270020
009B GLD 9965 000 12747 DOOR INSUDE BUTTON(GLD) 343J270120
010B 9965 000 12736 CENTER ESC.GOLD BUTTON 343J270030
011B DOOR BUFFER 330J056010
012B BLK 9965 000 12737 CENTER ESCUTCHEON(BLK) 343J063010
012B GLD 9965 000 12748 CENTER ESCUTCHEON(GLD) 343J063110
013B BLK 9965 000 12738 TUNING BUTTON(BLACK) 343J270040
013B GLD 9965 000 12749 TUNING BUTTON(GOLD) 343J270140
030B BLK 9965 000 03432 MASTER KNOB(BLACK) 312J154010
030B GLD 9965 000 01391 MASTER KNOB(GOLD) 312J154020
031B BLK 9965 000 12739 DOOR PANEL(BL) 343J162010
031B GLD 9965 000 12750 DOOR PANEL(GL) 343J162110
032B BLK 9965 000 12740 DOOR HINGE ARM(BL) 343J002010
032B /N GLD 9965 000 12751 DOOR HINGE ARM(BL) 343J002110
032B /S/U
GLD
DOOR HINGE ARM(GL) 343J002110
033B 9965 000 01393 STANDBY LENS 312J355010
034B /N/S 9965 000 01394 POWER BUTTON JOINT 312J125010
035B /N/S
BLK
9965 000 01975 POWER SW BUTTON(BLACK) 255W270010
035B /N/S
GLD
9965 000 01395 POWER SW BUTTON(GOLD) 255W270110
035B /U BLK POWER SW TACT(BLACK) 320J270040
035B /U GLD POWER SW TACT(GOLD) 320J270240
045B 4822 529 10215 DOOR DAMPER 391H130030
057B 4822 526 20213 DOOR MAGNET 271K305500
009G 4822 462 42045 LEG(FRONT SIDE) 183J057010
010G 4822 462 42048 LEG(REAR SIDE) 183J057110
024G /N/S REAR SIDE STOPPER(IEC) 322J114010
026G /N/S FRONT SIDE STOPPER(IEC) 322J114010
911G USB HALL COVER 343J053010
AT01 /N 9965 000 12333 VHF TUNER MODULE
TFCE1LXXXA
AV01203040
AT01 /S VHF TUNER MODULE
TFCE1LXXXA
AV01203030
AT01 /U VHF TUNER MODULE
TFCE1U118A
AV01202280
L001 /N/S 9965 000 12334 MAINS TRANSF AC230V TS60513220
L001 /U MAINS TRANSF AC120V TS60513210
L011 FERRITE CORE TFCK-23-11-14 FC50230010
L031 9965 000 12662 FERRITE CORE SSC-40-12 FC90400010
M011 9965 000 01770 D.C MOTOR COOLING FAN MM01200320
WC01 9965 000 12335 JUMPER LEAD FFC
JC01(PC04)-JU04(P604)
YU23730530
WY01 9965 000 12336 JUMPER LEAD FFC
15P JY23-TUNERPACK
YU15200500
PACKING
001T /N 9965 000 12741 USER GUIDE SR8200 /N 343J851310
001T /S USER GUIDE SR8200 /S 343J851350
001T /U USER GUIDE SR8200 /U 343J851250
Z004 9965 000 12727 REMOTE CONTROLLER
RC3200
ZK344J0010
Z011 /N 4822 321 11033 MAINS CORD
2P 10A 250V CLASS2
ZC01803080
Z011 /S MAINS CORD
250V 10A FOR UK
ZC01804100
Z011 /U MAINS CORD
10A 125V UL/CSA
ZC01803100
NOT STANDARD SPARE
PARTS
001D BLK TOP COVER(BLACK) 343J257010
001D GLD TOP COVER(GOLD) 343J257110
001S PACKING CASE 343J801010
002S CUSHION(LEFT) 343J809010
003S CUSHION(RIGHT) 343J809020
