Marantz SR9200 - Page 65

93 94

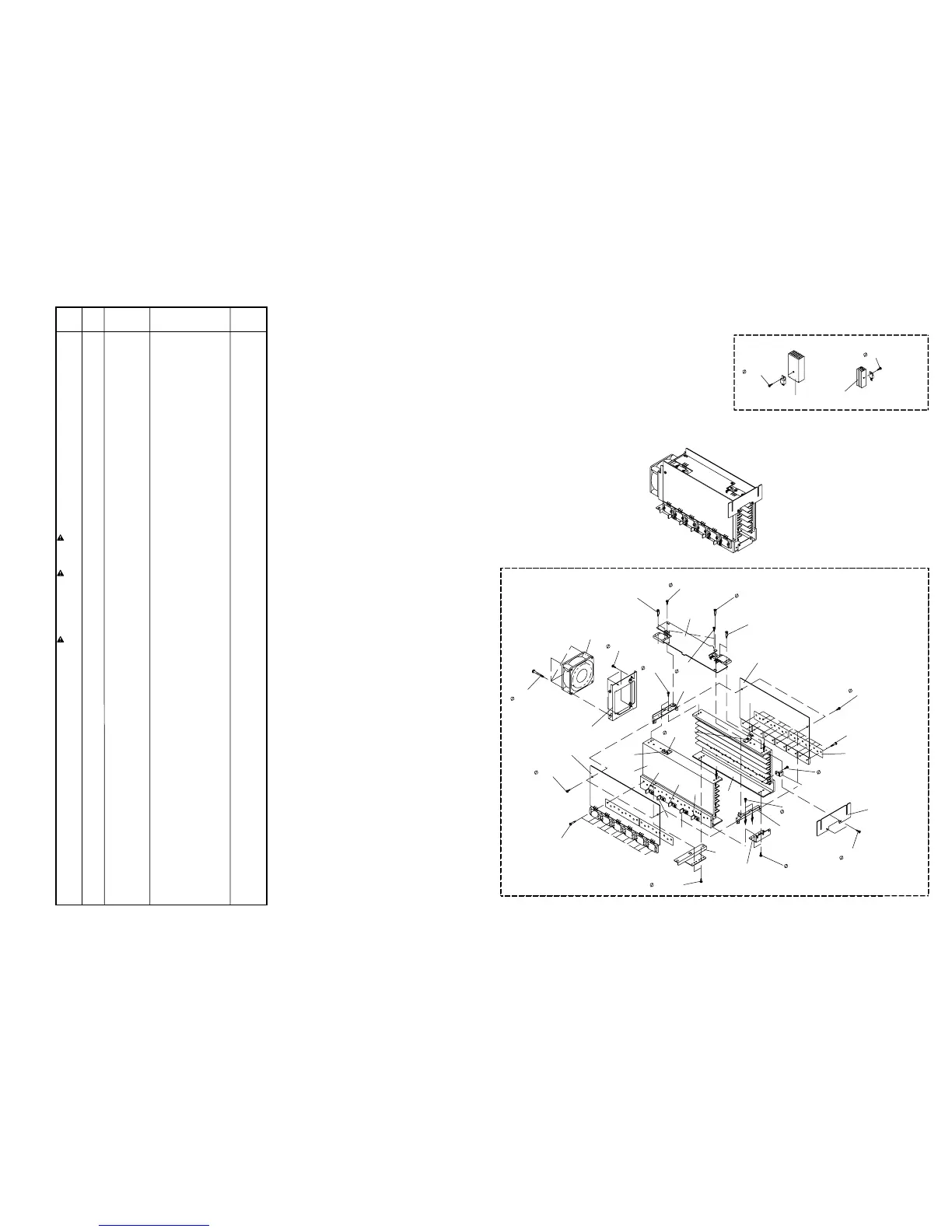

NOTE : "nsp" PART IS LISTED FOR REFERENCE ONLY, MARANTZ WILL NOT SUPPLY THESE PARTS.
M011
5128
4X35( U)
x4
002L
5128
3X8( M)
x2
006L
5128
3X8( M)
x2
004L
006L
5128
3X8( M)
x2
019L
5128
3X8( M)
x4
5128
3X8( M)
x2
5128
3X8( M)
x2
5128
3X8( M)
x2
P154
P11 4
P414
5126
3X12( M)
P134
P21 4
P314
5126
3X12( M)
x10
P174, PN54, P254, PN64, P354
001L
008L
5128
3X8( M)
x2
001L
5128
3X8( M)
x2
010Lx12
010Lx12
010Lx2
010Lx2
PN24
PN14
5128
3X8( M)
x2
5128
3X8( U)
x2
PY54
026Lx4
008L
5110
3X6( M) x7
001K, 002K, 003K
004K, 005K, 006K, 021K
5110
3X6( M)
011K
POS.
NO
VERS.
COLOR
PART NO.
(FOR PCS)
DESCRIPTION
PART NO.
(MJI)
001B FRONT PANEL 344J248140
002B MARANTZ BADGE 185J251010
007B WINDOW 343J158210
008B
FUNCTION BUTTON 343J270150
009B
DOOR INSIDE BUTTON 343J270120
010B CENTERGOLD BUTTON 343J270030
012B CENTER ESCUTCHEON 343J063110
013B TUNING BUTTON 343J270140
030B MASTER KNOB 312J154020
031B
DOOR PANEL 343J162110
032B
DOOR HINGE ARM 343J002110
033B STANDBY LENS 312J355010
034B POWER BUTTON JOINT 312J125010
045B DOOR DUMPER 391H130030
057B DOOR MAGNET 271K305500
005D SIDE PANEL (L) 344J249110
006D SIDE PANEL (R) 344J249120
009G LEG (FRONT SIDE) 183J057010
010G LEG (REAR SIDE) 183J057110
024G REAR SIDE STOPPER (IEC) 322J114010
026G FRONT SIDE STOPPER (IEC) 322J114010
911G USB HALL COVER 343J053010
L001 MAINS TRANSF AC100V TS42002220
L011 FERRITE CORE TFCK-23-11-14 FC50230010
L021 FERRITE CORE TFCK-16-8-13 FC50160030
L031 FERRITE CORE SSC-40-12 FC90400010
M011 D.C MOTOR COOLING FAN MM01200320
WC01 JUMPER LEAD FFC
JC01(PC04)-JU04(P604)
YU23730530
PACKING
001T USER GUIDE PS9200 344J851110
Z004 REMOTE CONTROLLER
RC3200
ZK344J0010
Z011 MAINS CORD
2P 125V 12A
ZC01801050
NOT STANDARD SPARE
PARTS
001D TOP COVER GOLD
(FOR SIDE PANEL)
343J257140
001S PACKING CASE (PS9200) 344J801020
002S CUSHION (LEFT) 343J809010
003S CUSHION (RIGHT) 343J809020
