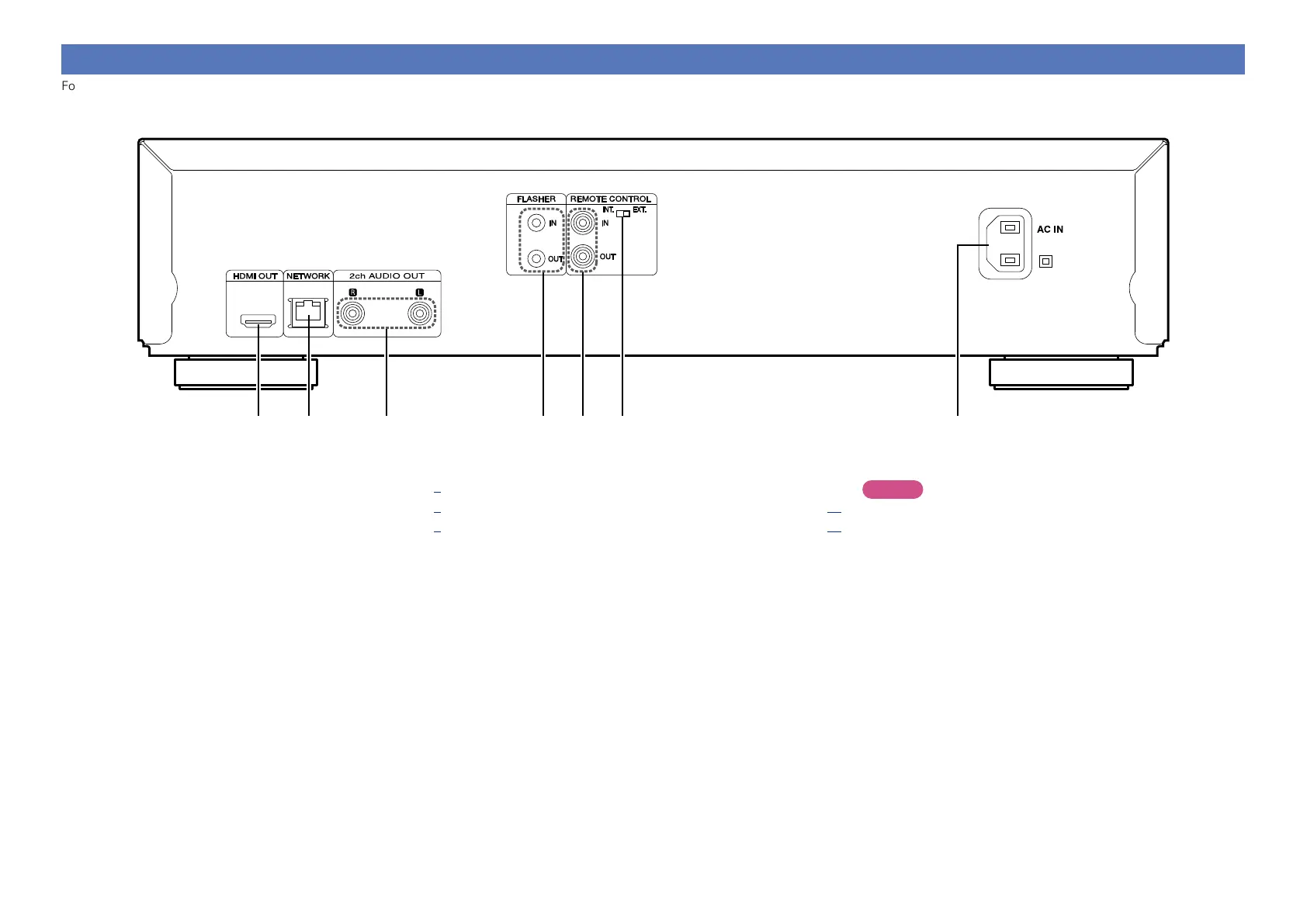

Rear panel
For buttons not explained here, see the page indicated in parentheses ( ).
q w e r t y u
q HDMI OUT connector ································································ (6)
w NETWORK connector ································································ (8)
e 2ch AUDIO OUT connectors ····················································· (7)
For software recorded in multi-channel, analog signals that have
been down-mixed into 2 channels are output.
r FLASHER IN/OUT connectors
Connect an external control device or other device for servicing.
t REMOTE CONTROL connectors
y REMOTE CONTROL switch (INT./EXT.) ································ (10)
u AC inlet (AC IN) ········································································ (10)
NOTE
Do not touch the inner pins of the connectors on the rear panel.
Electrostatic discharge may cause permanent damage to the unit.
