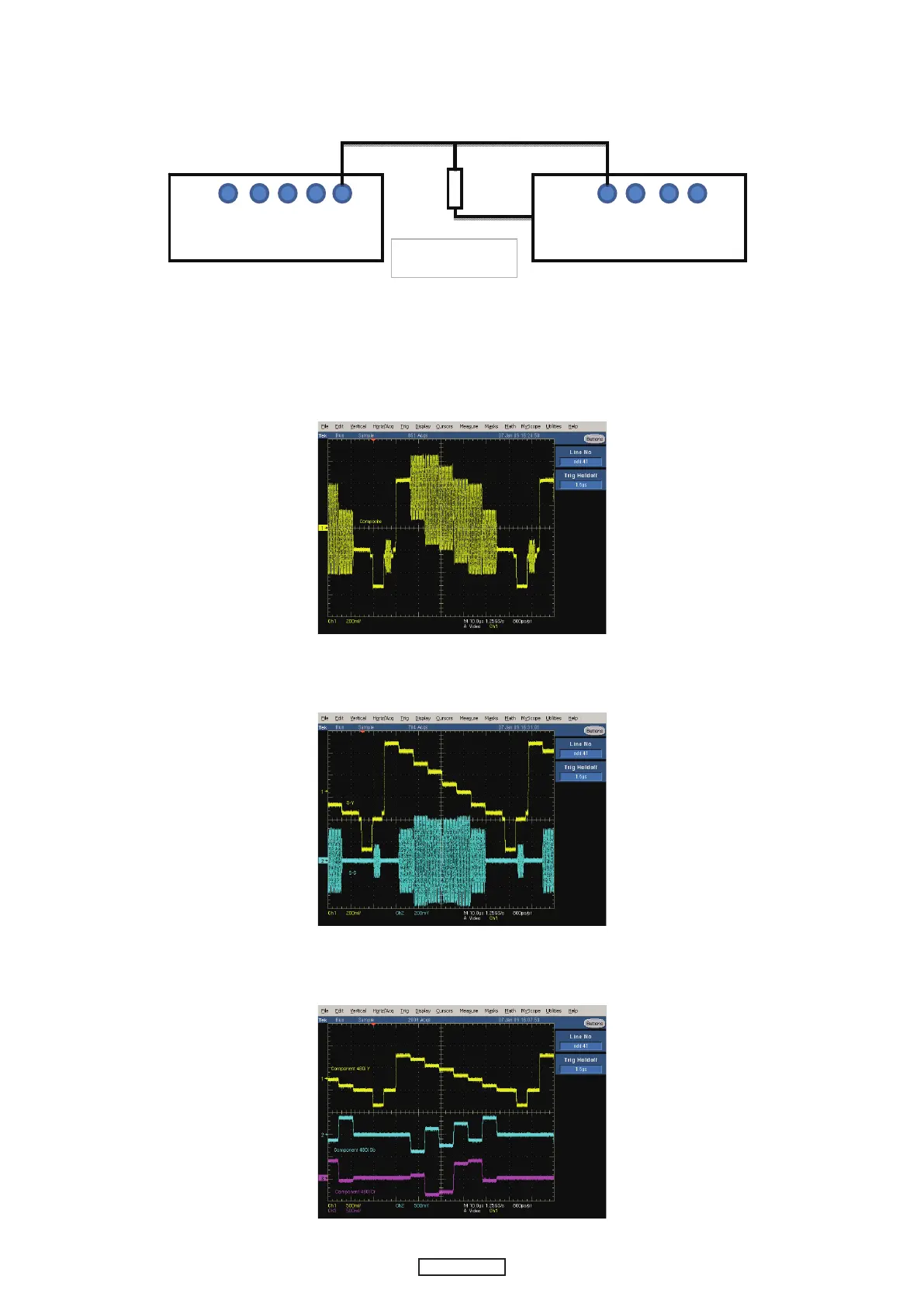

ANALOG VIDEO OUTPUT SIGNAL
Analog Video 出力信号測定
Signal: Color Bar 100%
Composite
DVD-A1UD Oscilloscope
75ohm Loard
Analog Video 出力信号測定
Signal: Color Bar 100%
Composite
DVD-A1UD Oscilloscope
75ohm Loard
S (Y/C)
Component (Y, Cb, Cr) 480/59.94i
S (Y/C)
Component (Y, Cb, Cr) 480/59.94i
